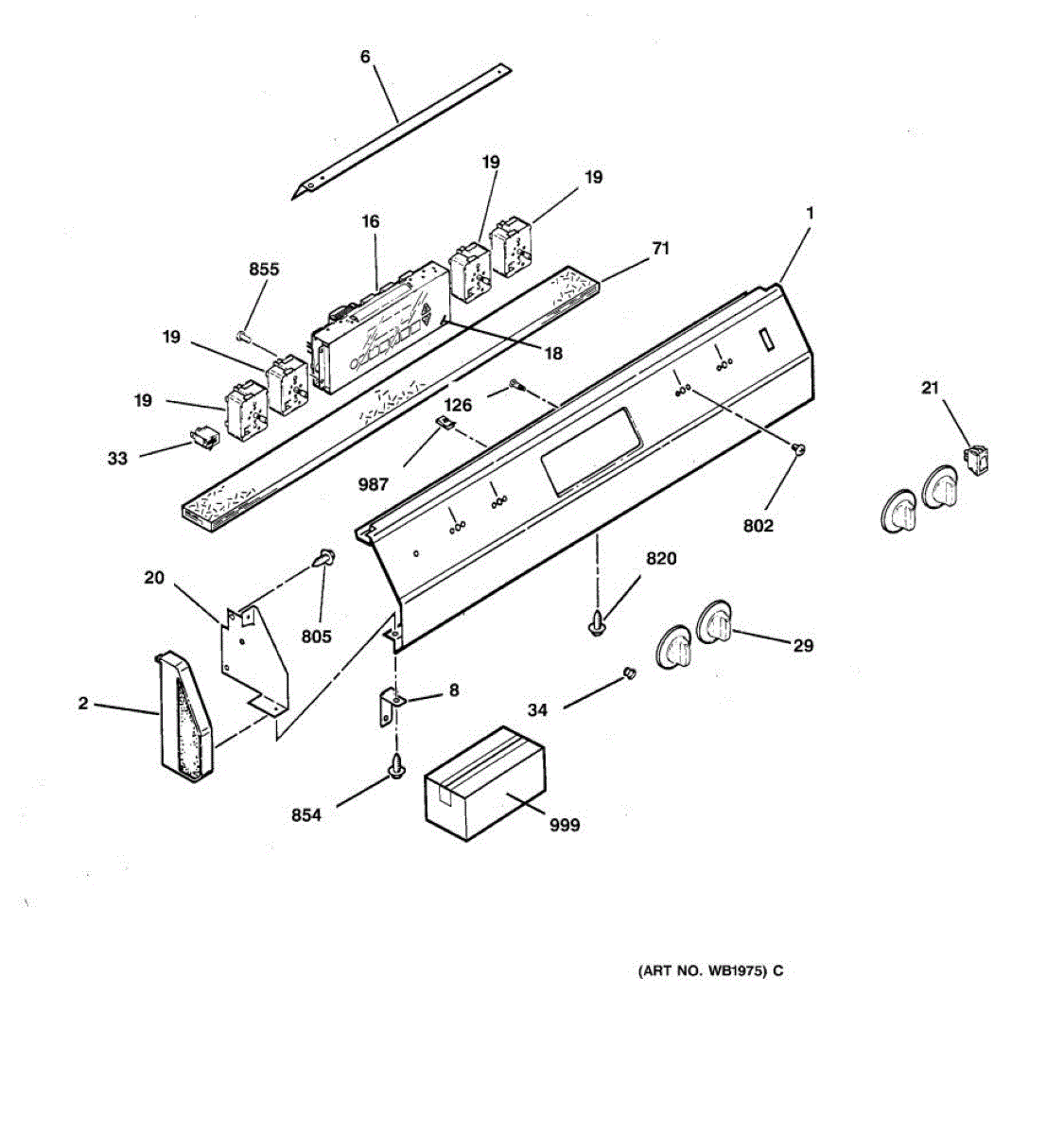

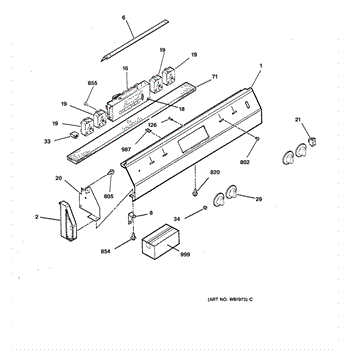

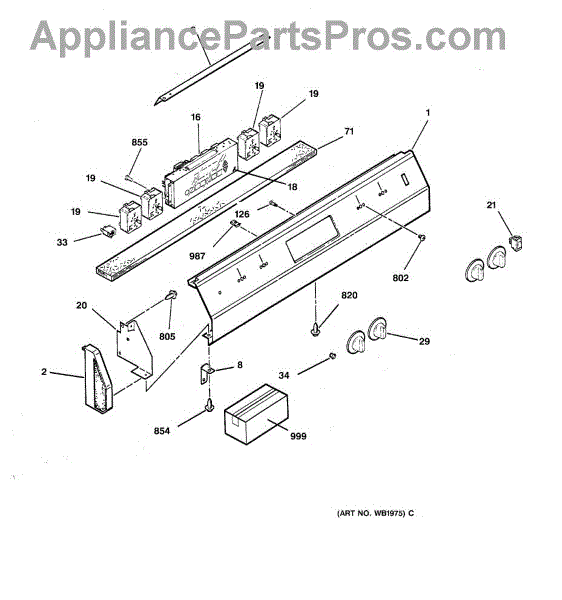

Parts for Ge JDC27GV1BG: 01 - Control Panel Parts

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This replacement knob fits the surface element control on your range or cooktop. It restores a secure grip and clear pointer so you can smoothly turn the control from Off to the desired heat level.

• Engages the infinite switch shaft to turn a surface element on/off and adjust heat
• Provides a clear indicator for temperature/setting selection
• Helps resolve issues like a cracked, stripped, loose, wobbly, or missing knob
• Refreshes the appliance's appearance with a matching black finish

• Disconnect power and allow all elements to cool before servicing.
• Pull the old knob straight off the control shaft.
• Align the new knob with the shaft and press straight on until fully seated; verify the pointer is at Off.
• If the knob doesn't seat easily, check the shaft for burrs/debris—don't force or twist.

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

A molded barrier insulator that protects wiring and terminals from shorting and heat exposure behind appliance control panels or heating components. Replaces damaged or melted insulators to restore safe electrical separation and reduce arcing risk. What it does:

• Provides electrical insulation and physical separation between terminals, wires, and metal chassis
• Helps prevent short circuits, arcing, and heat damage to nearby wiring and components
• Reduces risk of component-to-chassis conductivity caused by melted or shifted insulation
• Commonly replaced when the original shows burning, cracking, deformation, or melting

• One barrier insulator

• Disconnect power (unplug appliance or switch off breaker) before starting any repair
• Replace with the identical part number and position it exactly to restore proper clearance
• Inspect nearby wiring, terminals, and fasteners; replace any damaged components before re-energizing

ST10-16 X 7/16"

Package of 12

This replacement screw secures panels and small components on your appliance to restore proper fit and help prevent rattling or loose parts. Use it wherever the original fastener has been lost or damaged. What it does:

• Secures trim, panels, or mounting brackets to keep components aligned
• Prevents vibration and rattling caused by loose fasteners
• Replaces missing or stripped screws that compromise panel fit
• Restores reliable fastening so doors and controls sit correctly

• Disconnect power before accessing internal panels or components
• Use the correct driver to avoid stripping the screw head
• Thread carefully and do not overtighten to prevent damage
• Keep small parts away from children and pets
