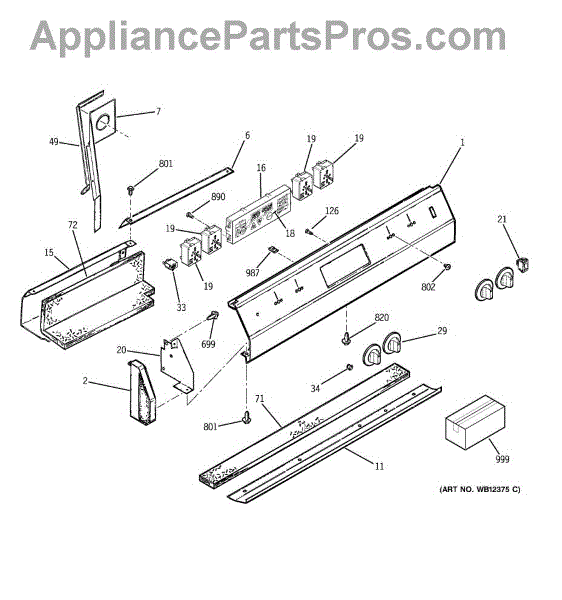

Parts for Ge JDP36BD1CT: 01 - Control Panel Parts

A replacement fan duct that directs airflow inside the appliance to help maintain proper cooling and temperature distribution. Restores correct air routing for reliable performance and efficient operation. What it does:

• Channels airflow from the evaporator fan to the appliance compartments
• Helps maintain even temperature and proper defrost performance
• Reduces stray airflow that can cause hot or cold spots
• Can help address issues like uneven cooling or temperature fluctuation

• Disconnect power to the appliance before beginning any service
• Remove required panels or shelves to access the fan/duct area; follow factory service instructions
• Handle plastic ducting carefully to avoid cracks or warping; ensure proper seating and fastener alignment

This black clock plate is the trim and mounting plate for the range or wall oven clock/timer in the control panel/backguard. It restores a clean, finished look and helps position and support the clock assembly securely.

• Provides the mounting surface and finished opening for the clock/timer module
• Helps align the display and protect surrounding panel edges
• Replace if cracked, warped, missing, or heavily discolored
• Typical symptoms include a loose or misaligned clock, rattling, or visible damage around the display

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Remove the control panel/backguard to access the clock and plate
• Transfer the clock/timer to the new plate and reuse existing hardware
• Align carefully and avoid overtightening to prevent damage; verify display alignment before reassembly

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This replacement knob fits the surface element control on your range or cooktop. It restores a secure grip and clear pointer so you can smoothly turn the control from Off to the desired heat level.

• Engages the infinite switch shaft to turn a surface element on/off and adjust heat
• Provides a clear indicator for temperature/setting selection
• Helps resolve issues like a cracked, stripped, loose, wobbly, or missing knob
• Refreshes the appliance's appearance with a matching black finish

• Disconnect power and allow all elements to cool before servicing.
• Pull the old knob straight off the control shaft.
• Align the new knob with the shaft and press straight on until fully seated; verify the pointer is at Off.
• If the knob doesn't seat easily, check the shaft for burrs/debris—don't force or twist.

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

ST10-16 X 7/16"

ST10-16 X 7/16"

Package of 12

Nickel
