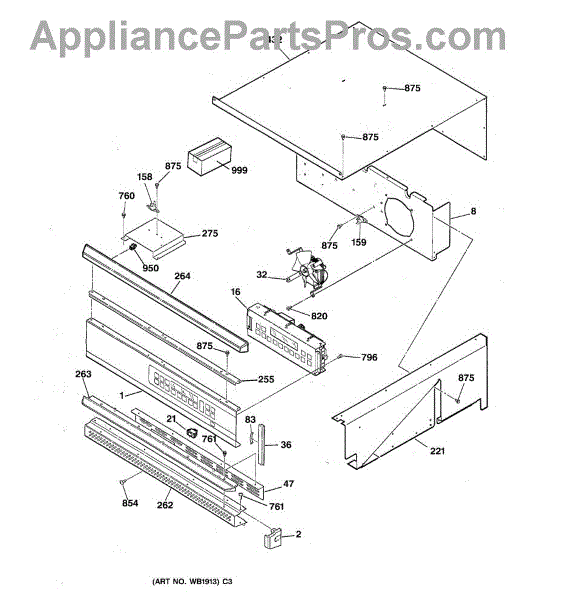

Parts for Ge JKP15AV1AA: 01 - Control Panel Parts

This left vent trim end cap restores the finished edge of a range/vent trim assembly for a clean, factory appearance. It covers the open end of the trim, helping keep the hood or cabinet opening looking complete and protected. What it does

• Replaces a cracked, dented, or missing left end cap on a vent/trim assembly
• Covers and protects the exposed trim edge from damage and debris
• Helps eliminate visible gaps and restore a factory-finished look
• Secures the trim edge to reduce rattling or movement

• High-level replacement: remove retaining screws or clips, position end cap, and secure with original fasteners
• Use basic hand tools; avoid excessive force to prevent bending the trim
• Wear gloves to protect against sharp sheet-metal edges

This electronic control board manages your oven's timing, temperature, and cooking functions. It controls the display, timer, and coordinates heating elements for proper cooking cycles. Replace it if your oven display is blank, buttons don't respond, or temperature control is erratic.

Oven won't heat after self-clean cycle? A faulty limit switch prevents operation when stuck open. Tests quickly with a multimeter for continuity.

Fixes F1 or F2 error codes and prevents overheating in ovens. This safety switch monitors temperature limits to protect components. Direct fit part.

Right hand side

Left hand side

This right-side vertical trim piece restores the exterior finish and covers the cabinet edge on compatible refrigerators, improving appearance and protecting the door edge from wear. Ideal for replacing cracked, dented, or faded trim. What it does:

• Covers and protects the refrigerator cabinet edge and door jamb
• Restores a clean, finished appearance to the appliance exterior
• Replaces cracked, warped, or cosmetically damaged trim
• Helps prevent dirt and moisture from collecting along the door edge

• High-level exterior trim replacement; may require removing nearby panels or door stops
• Keep trim and painted surfaces protected during installation to avoid scratches
• Use appropriate fasteners/clips as required for your model; replace any damaged clips

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Package of 12

Black. 8-18 AB HXW 3/8

Secures and routes electrical cables inside your oven. Replace if damaged, cracked, or missing to prevent wire wear and maintain safe operation. Verify fit with your model number before ordering.

Official use and care manual for your oven. Provides operating instructions, maintenance guidelines, and safety information for proper appliance use.

This wire harness connects the oven door lock motor to the appliance wiring, restoring electrical continuity for reliable door latch operation. It's a direct-fit replacement that helps resolve intermittent or failed lock motor function. What it does:

• Routes power and signal between the control board and the door lock motor so the latch can engage and release.
• Commonly used when a door won't lock, unlock, or shows intermittent lock operation.
• Replaces damaged, frayed, or burned wiring that can interrupt lock motor function.
• Helps restore proper oven or range door locking during self-clean or cook cycles.

• One lock motor wire harness

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Inspect connector ends and routing; replace only if the harness matches the original and connectors seat fully.
• Some models require partial disassembly of the door or console to access the lock motor; follow the OEM service instructions.
