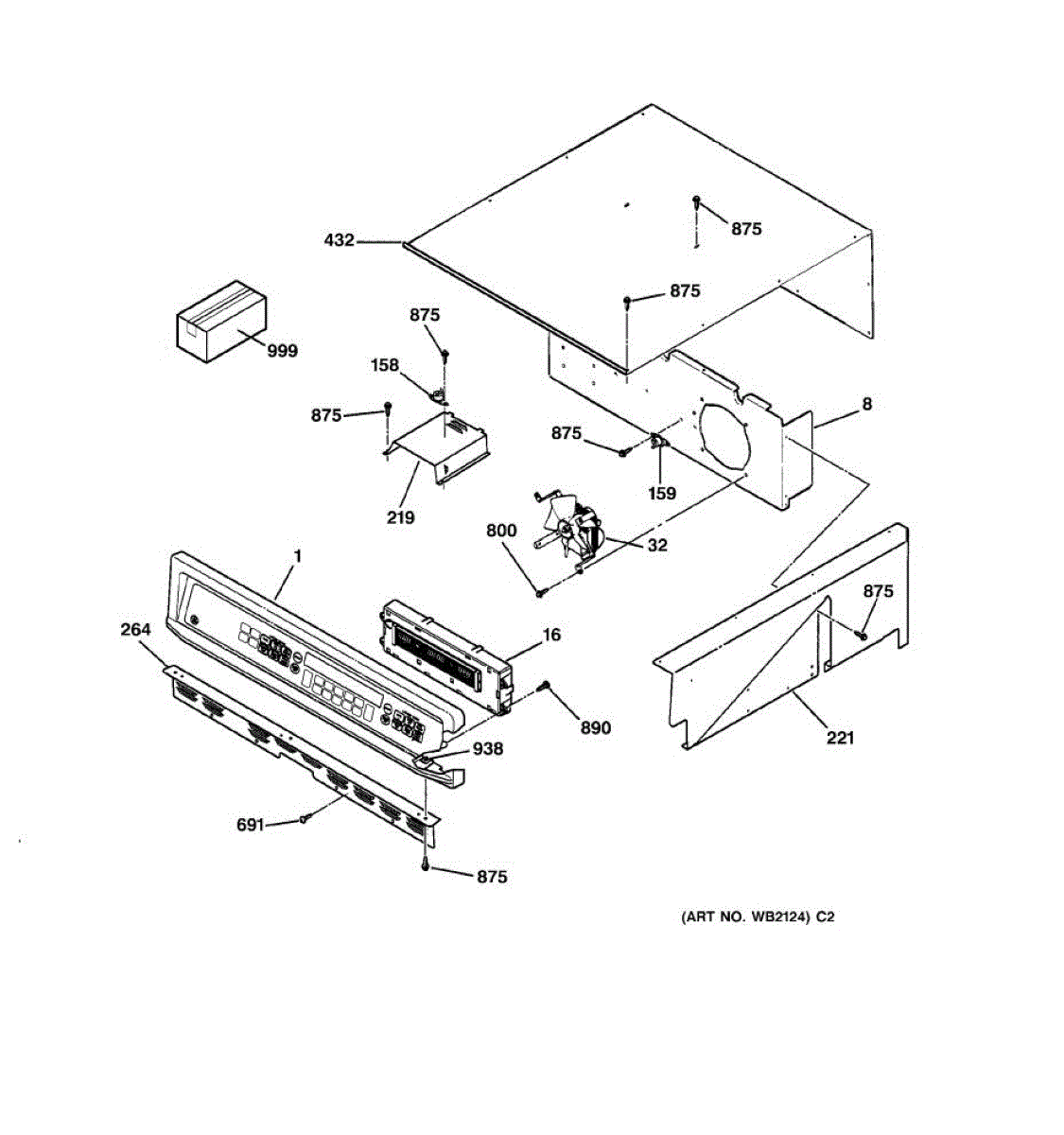

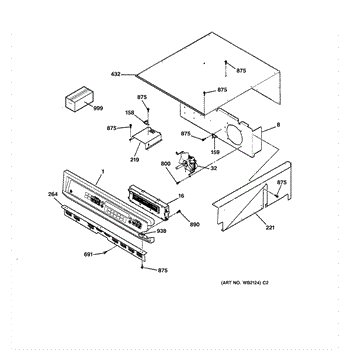

Parts for Ge JKP56AA1AA: 01 - Control Panel Parts

This lower cooling fan assembly circulates air to cool internal components and help maintain proper airflow in the appliance. Replacing a worn fan restores quieter operation and helps prevent overheating of electrical parts. What it does:

• Moves air through the appliance cabinet to aid component cooling and temperature regulation.
• Reduces hot spots around controls, electronics, and motors that can cause premature failure.
• Commonly used when you hear unusual noise from the lower area or detect reduced airflow.
• Supports overall appliance performance and reliability by maintaining designed ventilation.

• One lower cooling fan assembly as shown

• Disconnect power before attempting any service to avoid electric shock.
• Inspect surrounding mounts and ducts for damage; replace any broken clips or supports.
• Use basic hand tools; confirm correct orientation and secure mounting before restoring power.

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

This limit switch is a snap-action safety/position switch used in many cooking appliances. It opens or closes an electrical circuit when a mechanism reaches its limit, enabling safe operation and helping protect components when conditions aren't met.

• Provides snap-action switching to confirm a mechanical limit or interlock within the appliance
• Changes state to allow or interrupt power when the limit is reached
• Common failure symptoms: self-clean won't start or complete, oven won't heat/start, or door lock-related error codes
• May fail a continuity test or lose its distinct "click" when actuated

• Disconnect power before service; allow appliance to cool completely
• Access and mounting vary by model—take photos and transfer wires one at a time
• Mount in the same orientation; ensure the actuator/lever aligns with the mechanism and is not bent
• After installation, verify switch operation with a continuity test while actuating the mechanism

A replacement limit switch that helps prevent overheating by cutting power when temperature reaches a set point. Fits into the appliance's temperature control/safety system to keep operation safer and more reliable. What it does:

• Acts as a temperature-activated safety cutoff to stop heating when temperatures exceed safe limits
• Helps appliances recover from overheating by interrupting power to heating elements or circuits
• Can cause loss of heat, intermittent heating, or failure to reach temperature when faulty
• Commonly used in ranges/ovens to protect internal components and maintain safe operation

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle electrical connectors and terminals carefully; note wiring location before removal
• Minor disassembly of the appliance's control or access panel may be required for access

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

This inner vent trim replaces a damaged or missing vent trim to restore the appliance's finished look and help channel air through the vent opening. Fits the factory location and matches the surrounding trim finish. What it does:

• Covers the inner edge of the vent opening to improve appearance and protect internal components
• Helps direct airflow from the vent area for normal ventilation
• Commonly replaced when the trim is cracked, warped, loose, or cosmetically worn
• Matches the original black finish for a consistent look

• Generally attaches at the vent opening using existing clips or screws
• Power off and allow the appliance to cool before beginning any work
• Handle carefully to avoid scratching the finish; use a soft cloth to protect surfaces
• If mounting hardware is missing or damaged, replace with the correct OEM fasteners

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

Nickel

This is a genuine OEM replacement nut that is used on convection oven fans. This nut holds the fan onto the spindle. If the nut becomes lost during repairs to the fan, it will need to be replaced before the fan will work. This nut locks the fan to the spindle to turn and move the air around inside the oven. The fan helps the food to cook more evenly and reduces areas in the oven that are not cool enough or hot enough. If the fan is not working, the convection oven will not cook correctly.Convection ovens are different from regular ovens, and the fan is part of the reason. Convection ovens use the fan and an exhaust system to move the heat around inside the oven to cook food more evenly and faster. Many convection ovens have a setting that allows the oven to be used as a regular oven. If the nut is missing and the fan is inoperable, the oven can be used for regular cooking if it has this feature. Otherwise, the convection oven should not be used until the nut is replaced.This nut is a silver metal replacement part that is sold individually. It is designed for use in convection ovens made by GE and Kenmore.

This lock motor wire harness connects the door lock motor to the appliance wiring, restoring reliable power and signal to the lock assembly. It helps resolve wiring failures that prevent the door from locking or the unit from starting. What it does:

• Carries power and control signals between the control board and the lock motor
• Restores operation when damaged or frayed wires cause intermittent or no lock engagement
• Can stop related symptoms like the door not locking, cycle not starting, or lock-related error codes
• Matches OEM wiring configuration for a direct replacement

• Disconnect power (unplug or shut off breaker) before inspecting or replacing wiring
• Handle connectors by the plastic housings; avoid pulling on wires
• Route and secure the harness to prevent chafing or pinching when reassembling panels

Black. 8-18 AB HXW 3/8
