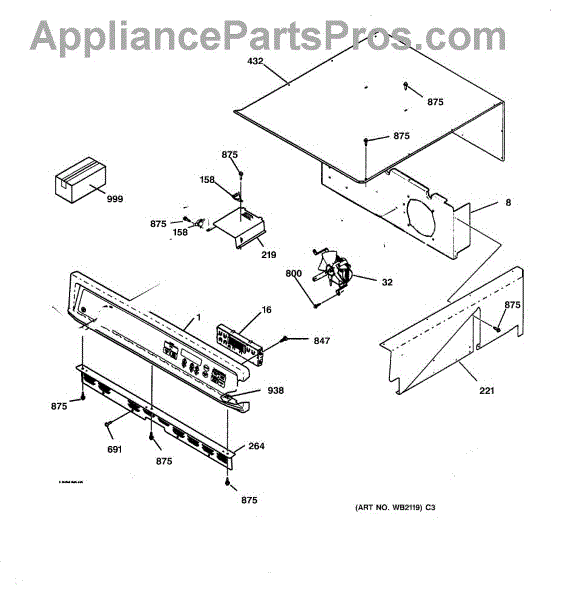

Parts for Ge JKS05BA2BB: 01 - Control Panel Parts

Wiring may not be the same as original clock, may require installation by a appliance service person.

Lower back

This limit switch is a snap-action safety/position switch used in many cooking appliances. It opens or closes an electrical circuit when a mechanism reaches its limit, enabling safe operation and helping protect components when conditions aren't met.

• Provides snap-action switching to confirm a mechanical limit or interlock within the appliance
• Changes state to allow or interrupt power when the limit is reached
• Common failure symptoms: self-clean won't start or complete, oven won't heat/start, or door lock-related error codes
• May fail a continuity test or lose its distinct "click" when actuated

• Disconnect power before service; allow appliance to cool completely
• Access and mounting vary by model—take photos and transfer wires one at a time
• Mount in the same orientation; ensure the actuator/lever aligns with the mechanism and is not bent
• After installation, verify switch operation with a continuity test while actuating the mechanism

This inner vent trim replaces a damaged or missing vent trim to restore the appliance's finished look and help channel air through the vent opening. Fits the factory location and matches the surrounding trim finish. What it does:

• Covers the inner edge of the vent opening to improve appearance and protect internal components
• Helps direct airflow from the vent area for normal ventilation
• Commonly replaced when the trim is cracked, warped, loose, or cosmetically worn
• Matches the original black finish for a consistent look

• Generally attaches at the vent opening using existing clips or screws
• Power off and allow the appliance to cool before beginning any work
• Handle carefully to avoid scratching the finish; use a soft cloth to protect surfaces
• If mounting hardware is missing or damaged, replace with the correct OEM fasteners

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

ST10-16 X 7/16"

Nickel

Black. 8-18 AB HXW 3/8
