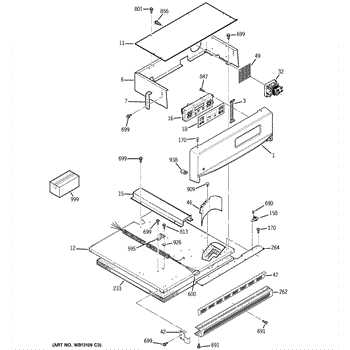

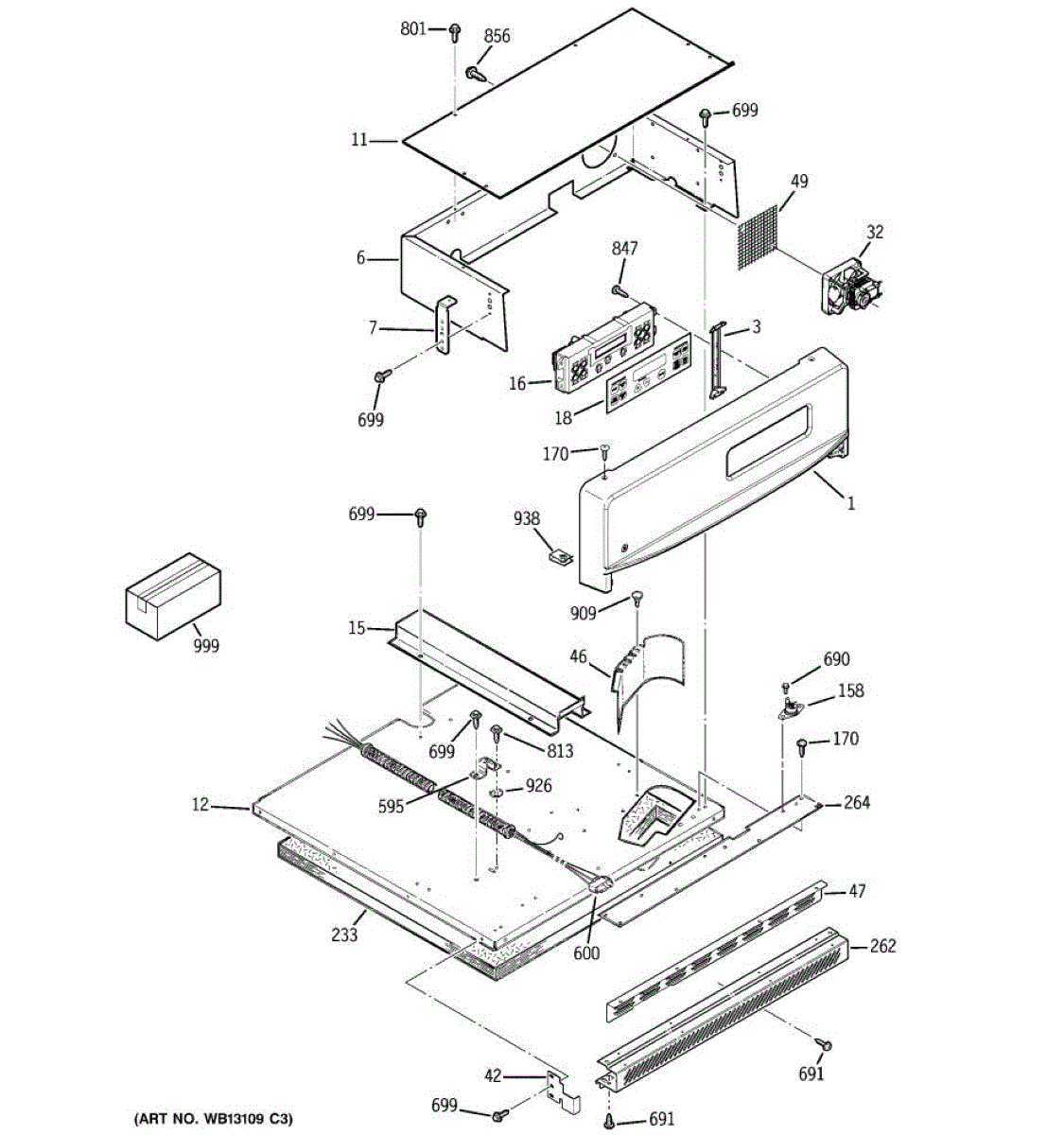

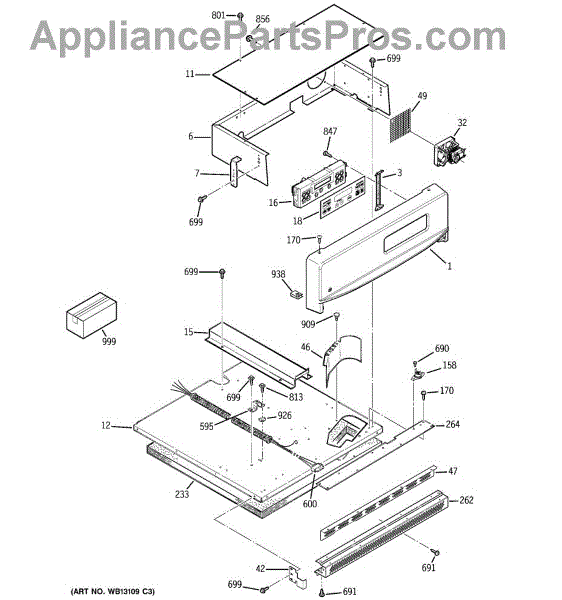

Parts for Ge JRP20WJ1WW: 01 - Control Panel Parts

Replace your wall oven's control panel touch pad when buttons become unresponsive, the overlay is cracked, or the membrane is worn. Restores keypad functionality.

Mounting bracket that secures the control panel to your range. Replace if the original bracket is bent, broken, or missing to properly support the panel.

Replace your cracked or broken oven control housing. This protective cover installs behind the control panel to shield internal electronics and wiring.

A replacement control panel bracket that secures the oven/range control console to the chassis, restoring a stable, aligned control panel for safe operation and clean appearance. Fits the OEM mounting location and restores proper panel support. What it does

• Provides a secure mounting point to hold the control/console assembly in place.
• Prevents a loose, wobbly, or sagging control panel that can cause buttons or touchpads to misalign.
• Stops rattling or vibration noise from the control area during use.
• Helps maintain correct spacing so knobs, buttons and electronic controls operate reliably.

• Disconnect power to the appliance before starting any work to avoid electrical shock.
• Basic hand tools (screwdriver, nut driver) are typically required; follow the OEM service instructions for disassembly/reassembly.
• Handle surrounding trim, glass, and control surfaces carefully to avoid damage.
• If electronic components were removed, connections before restoring power and test functions after installation.

Fix an oven that won't start, beeps constantly, or has unresponsive buttons. This control board regulates bake, broil, and timer functions. DIY repair.

Control panel graphics overlay for wall ovens. Covers and protects the control area. Replace if faded, peeling, cracked, or worn from heat and use.

Oven overheating or running loud? This cooling fan motor assembly circulates air to prevent overheating and reduce noise. Direct-fit replacement part.

Keep your oven's cooling or convection fan safe from debris and contact with loose items. This round mesh guard provides a simple barrier that helps maintain airflow while protecting the fan blade from damage and blockages. What it does:

• Shields the fan blade from loose debris, pans, or dropped food that can cause blades to bend or break
• Helps maintain proper airflow by preventing blockages that reduce cooling or convection performance
• Reduces risk of fan-related noise from objects striking the blade
• Helps protect the fan assembly from corrosion and buildup over time

• One fan screen protector (round mesh guard)

• Designed for replacement on compatible oven/range fan assemblies; verify fit with your model before installation
• Turn off power to the appliance at the breaker and allow all surfaces to cool before beginning work
• Basic hand tools are typically required; handle the mesh carefully to avoid bending or distortion
• If the fan or motor shows damage, replace the damaged components rather than relying on the screen alone

If your oven won't heat or stops heating mid-cycle, a faulty thermal limit switch may be cutting power for safety. Simple plug-in replacement.

Mounting screw for securing range components and panels. Replace if stripped, rusted, missing, or broken to properly fasten parts during repairs.

White trim screw for ovens and ranges. Secures trim panels and decorative components. Replace missing, stripped, or damaged screws during repairs.

Mounting screw for ranges and ovens. Secures panels, brackets, or internal components. Replace if stripped, missing, or damaged during repair work.

ST10-16 X 7/16"

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Nickel

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

This push-type plastic rivet is a small fastening clip that secures trim, panels and lightweight components on appliances. It replaces worn or broken rivets to restore a snug fit and reduce rattles or loose trim. What it does:

• Secures interior or exterior trim, panels and access covers
• Holds wiring harnesses or insulation in place where a low-profile fastener is required
• Replaces missing or damaged rivets that cause loose panels or vibration noise
• Simple push-in design creates a firm hold without screws or adhesives

• Disconnect power to the appliance before working on panels or wiring
• Push the rivet stem into the hole until it snaps; remove by prying out the center pin or using pliers
• Use the same style and size rivet as the original to ensure proper fit and retention
• Protect surrounding surfaces from tools and work deliberately to avoid damage

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.
