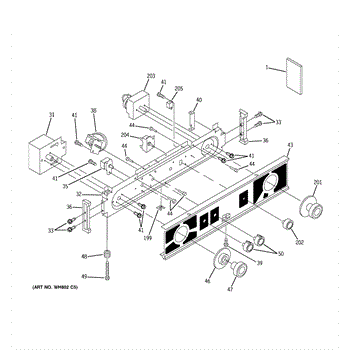

Parts for Ge WSM2420D1CC: 01 - Control Panel Parts

This timer is used on washing machine units. The function of the timer is to control the electrical components and the duration of each of the washing machine cycles. If the timer has gone bad, the cycles may run incorrectly or won't run at all. For example, the washing machine may become stuck on the spin cycle. The unit may also skip cycles altogether. Another symptom is if the washing machine will not drain the water. It is very easy to replace and can be done quickly. Unplug the washing machine from the electrical outlet before attempting to replace this part.This particular timer is compatible with washing machines that are manufactured by the General Electric brand, including Hotpoint and RCA. This part is sold individually and is sourced straight from the manufacturer.

The dryer timer controls the sequence and duration of your machine's cycles. Replacing a worn timer restores accurate cycle advancement and shut-off so the dryer runs and stops when the selected settings are complete. What it does:

• Controls electrical contacts to run and advance the selected dry cycle
• Routes power to motor, heater, and other components through each segment
• Advances through heat, tumble, cool-down, and off positions
• Common symptoms: timer won't advance, runs too long/never shuts off, stops mid-cycle, or only works on one setting

• 1 dryer timer

• Disconnect power to the dryer before servicing
• Photograph wiring and transfer one wire at a time to the matching terminals on the new timer
• Secure the timer to the control panel and ensure the shaft aligns with the knob
• Inspect terminals/wiring for heat damage and repair as needed before restoring power
