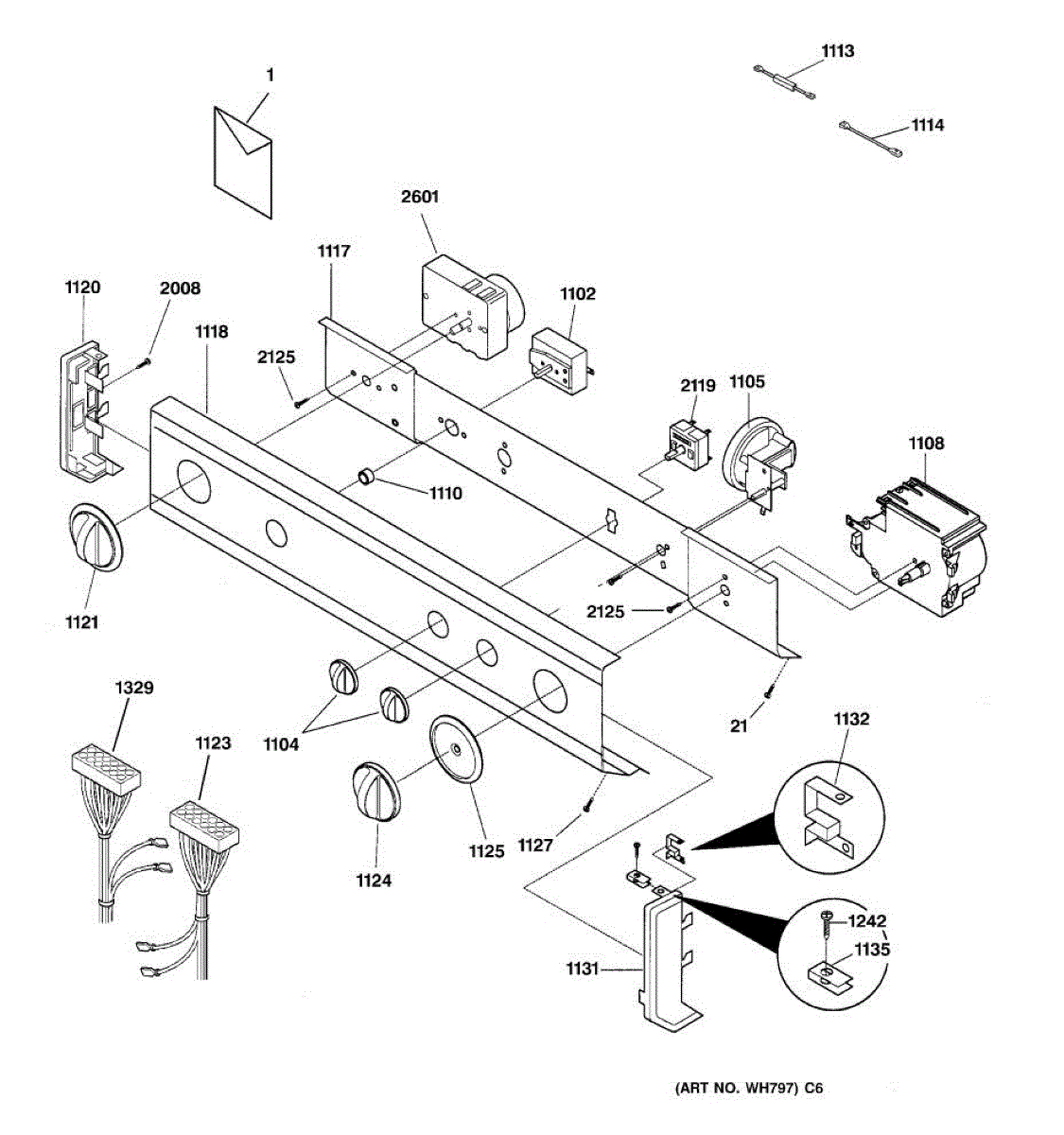

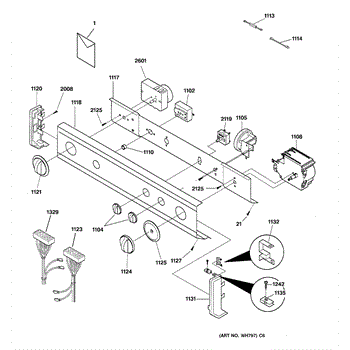

Parts for Ge WSM2700DAWCC: 01 - Control Panel Parts

8 - 18 x 0.31

A replacement rotary control knob that restores reliable manual control of your appliance's temperature and function settings. Replace a cracked, worn, or missing knob to regain safe, precise control of the appliance. What it does

• Fits onto the appliance control shaft and lets you turn and select cooktop/oven functions and temperatures.
• Replaces knobs that are cracked, broken, loose, or that spin on the shaft and won't adjust settings.
• Designed to match the original knob spline pattern for a proper, secure fit.

• Disconnect power (and gas, when applicable) and make sure the appliance is cool before servicing.
• Remove the old knob by pulling it straight off the control shaft; align splines and push the new knob on until fully seated.
• If the old knob is stuck, use a cloth for grip and gently rock while pulling—avoid excessive force.

This is the cycle timer for a washing machine. It controls the sequence and duration of wash, rinse, and spin cycles so the washer progresses through a complete program as selected.

• Rotates internal contacts to switch the motor, pump, fill valves, and spin on and off in order
• Helps resolve issues like a washer not advancing cycles, stopping mid-cycle, or skipping wash/rinse/spin
• Also addresses irregular cycle timing or a timer that won't turn/advance when set

• Disconnect power before servicing; turn off water supply for safety
• Access is typically from the control console; transfer wiring one at a time to matching terminals
• Mount the timer to the panel and ensure the timer shaft aligns with the control knob and dial
• Test a short cycle after reassembly to ensure proper advance through each step

This is a replacement pointer for control panels and timer knobs that restores a clear, visible indicator of the selected setting. It helps you quickly see and select the correct cycle or temperature. What it does:

• Replaces a cracked, broken, faded, or missing pointer so the control position is visible
• Aligns with the control knob to show the active setting or timer position
• Improves usability when the original pointer is worn or detached
• Matches the original white/dark gray color for a clean appearance

• Always disconnect power (unplug the appliance or shut off the breaker) before servicing
• Remove the control knob as needed, then press the pointer into the control shaft or bezel until it seats
• Do not force the part; stop and verify the part number and control style
• Refer to the appliance owner's manual or a repair guide for model-specific removal steps

A replacement pan head screw used to fasten appliance panels and components. Its standard #8 coarse thread and 3/8-inch length secure trim, brackets, and small assemblies for stable operation. What it does:

• Fastens panels, brackets, and small parts in household appliances
• Replaces stripped, rusted, or missing #8-18 pan head screws
• Restores secure mounting where vibration or wear caused looseness
• Works with sheet-metal or threaded inserts designed for #8-18 screws

• Disconnect power to the appliance before beginning any repair
• Use the correct #2 Phillips or compatible driver to avoid cam-out
• Thread in straight and tighten until snug; avoid over-tightening to prevent stripping
• Keep small screws away from children and dispose of old fasteners safely

8 - 32 x 1/4

Replace a failed dryer timer to restore reliable cycle selection and timing. This dryer control advances the machine through selected cycles so loads run and finish on the chosen program. What it does

• Advances the dryer through cycle steps and governs timed run lengths.
• Used for selecting timed and automatic cycles; coordinates cycle changes.
• Common symptoms: timer won't advance, dryer stays on one cycle, or cycles don't complete.
• Replace when the timer knob fails to turn or cycles no longer respond to controls.

• Disconnect power (unplug or shut off the breaker) before servicing to avoid electric shock.
• Access usually requires removing the control panel and unplugging the wiring harness; keep track of fasteners and connector locations.
• On gas dryers, shut off the gas supply before starting any work.
