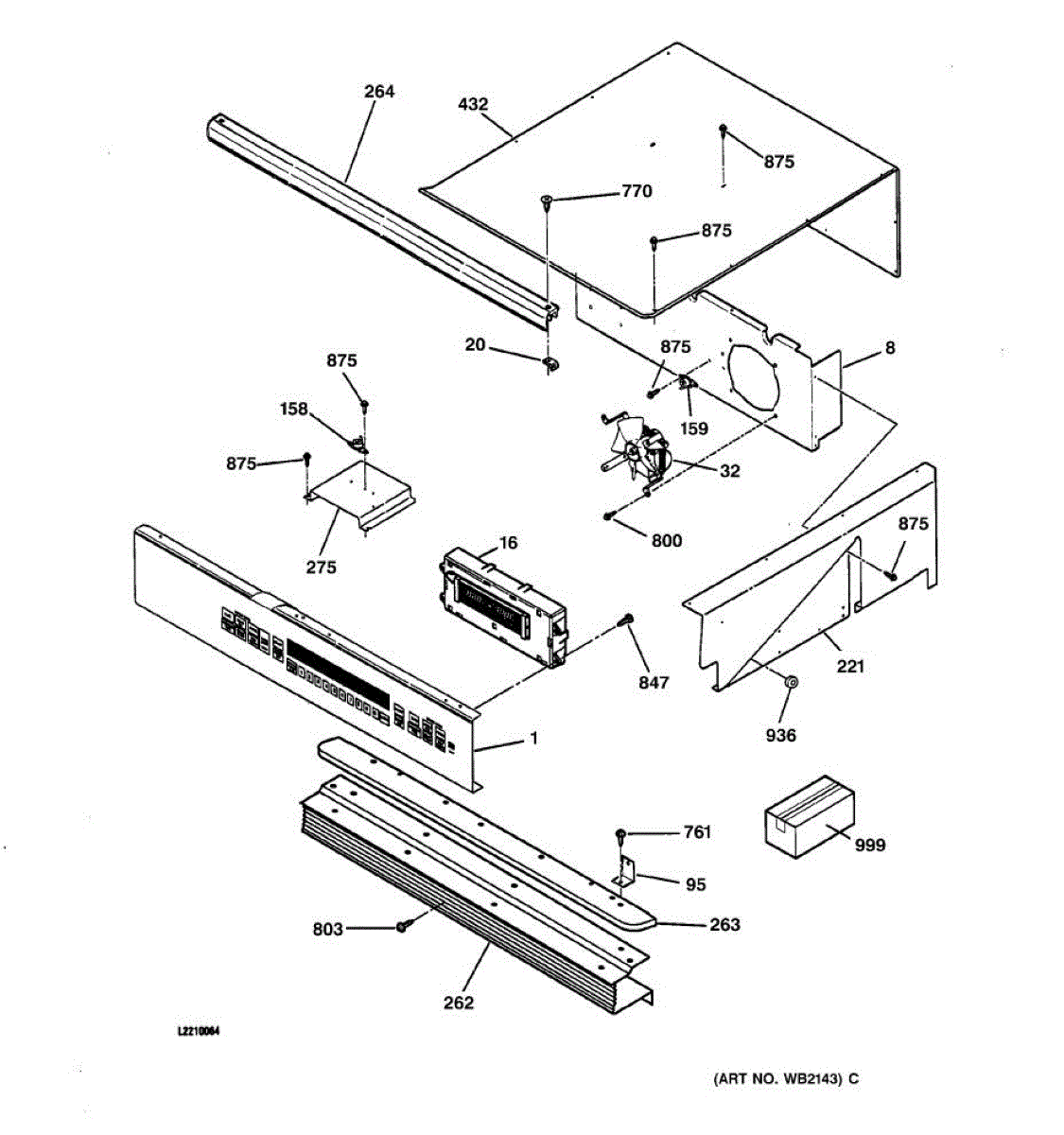

Parts for Ge ZEK737WA2WW: 01 - Control Panel Parts

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

This vent trim bracket is the replacement support bracket that secures the range/microwave vent trim for a proper fit and finish. It restores trim alignment and helps prevent rattling or gaps around the vent opening. What it does

• Secures the vent trim to the appliance frame so the trim sits flush and centered.
• Prevents trim from shifting, vibrating, or creating visual gaps during operation.
• Helps maintain a finished look and proper airflow alignment at the vent opening.
• Used when original bracket is bent, broken, or missing.

• One vent trim bracket.

• Disconnect power to the appliance before beginning work and follow the appliance service manual.
• Typically fastens with screws; remove trim pieces carefully to access mounting points.
• Handle edges and trim pieces carefully to avoid cuts or damage to finish.

This limit switch is a snap-action safety/position switch used in many cooking appliances. It opens or closes an electrical circuit when a mechanism reaches its limit, enabling safe operation and helping protect components when conditions aren't met.

• Provides snap-action switching to confirm a mechanical limit or interlock within the appliance
• Changes state to allow or interrupt power when the limit is reached
• Common failure symptoms: self-clean won't start or complete, oven won't heat/start, or door lock-related error codes
• May fail a continuity test or lose its distinct "click" when actuated

• Disconnect power before service; allow appliance to cool completely
• Access and mounting vary by model—take photos and transfer wires one at a time
• Mount in the same orientation; ensure the actuator/lever aligns with the mechanism and is not bent
• After installation, verify switch operation with a continuity test while actuating the mechanism

This limit switch is a safety control for compatible cooking appliances. It opens or closes an electrical circuit when a preset limit is reached—commonly temperature or travel—helping protect components and ensure proper operation of heating and latch systems.

• Monitors a specific limit at its mounting point (temperature or mechanism travel, depending on model)
• Opens/closes the circuit to interrupt or allow power to related components
• A failed switch can prevent heating, stop self-clean from starting, or keep the door from locking/unlocking
• Helps protect wiring and controls from damage during abnormal conditions

• Disconnect power to the appliance and allow all components to cool before servicing
• Access location varies by model; take photos and label wires before removal
• Transfer wires one at a time to the new switch; secure with existing hardware
• If the old switch tripped due to overheating or binding, inspect fans, vents, and latch/linkages to correct the root cause

Right hand side

Left hand side

This insulator protects and cushions the appliance control module, helping prevent electrical shorts and physical damage to the board. It's a simple replacement that supports reliable control operation. What it does:

• Separates the control/module from the chassis to prevent shorting and rubbing
• Cushions the module to reduce vibration-related connector issues
• Helps keep wiring and components positioned correctly for consistent electrical contact
• Can reduce intermittent control problems caused by loose or damaged insulation

• Disconnect power before beginning any repair to avoid shock or damage
• Access the control panel or console per your appliance's service instructions
• Fit the insulator under/around the module as shown in the parts diagram; ensure correct orientation and secure mounting hardware
• Avoid touching circuit board components; if connectors were removed, reseat firmly before reassembly

This white trim screw secures panels and plastic trim on the appliance, restoring proper fit and stopping rattles or loose pieces. It's a direct-replacement fastener used where the factory-installed screw has stripped, corroded, or gone missing. What it does

• Fastens trim, panels, or components to maintain proper alignment and fit
• Prevents vibration noise and rattling caused by loose parts
• Replaces stripped, rusted, or lost screws for a clean, finished appearance
• Matches factory finish to remain discreet in visible areas

• Disconnect power to the appliance before starting any repair
• Use the correct-size screwdriver/drill bit to avoid stripping the head
• Tighten securely but do not overtighten; excessive force can crack plastic or strip threads
• Replace only with the same part number to ensure proper fit and finish

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This is a flat-head screw used to secure panels and components in compatible appliances. It provides a flush finish and reliable fastening for trim, interior panels, and small assemblies. What it does:

• Fastens trim, brackets, and small appliance components with a flat, countersunk head
• Provides a flush surface to prevent snagging and keep panels aligned
• Commonly used where a low-profile finish is needed for aesthetics and clearance

• One screw

• Use the matching Phillips or screwdriver bit; avoid over-tightening to prevent stripping
• Inspect mating threads and replace if damaged; use correct screw length to avoid puncturing internal components
• Disconnect power or follow appliance safety procedures before servicing

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

ST10-16 X 7/16"

Nickel

Black. 8-18 AB HXW 3/8
