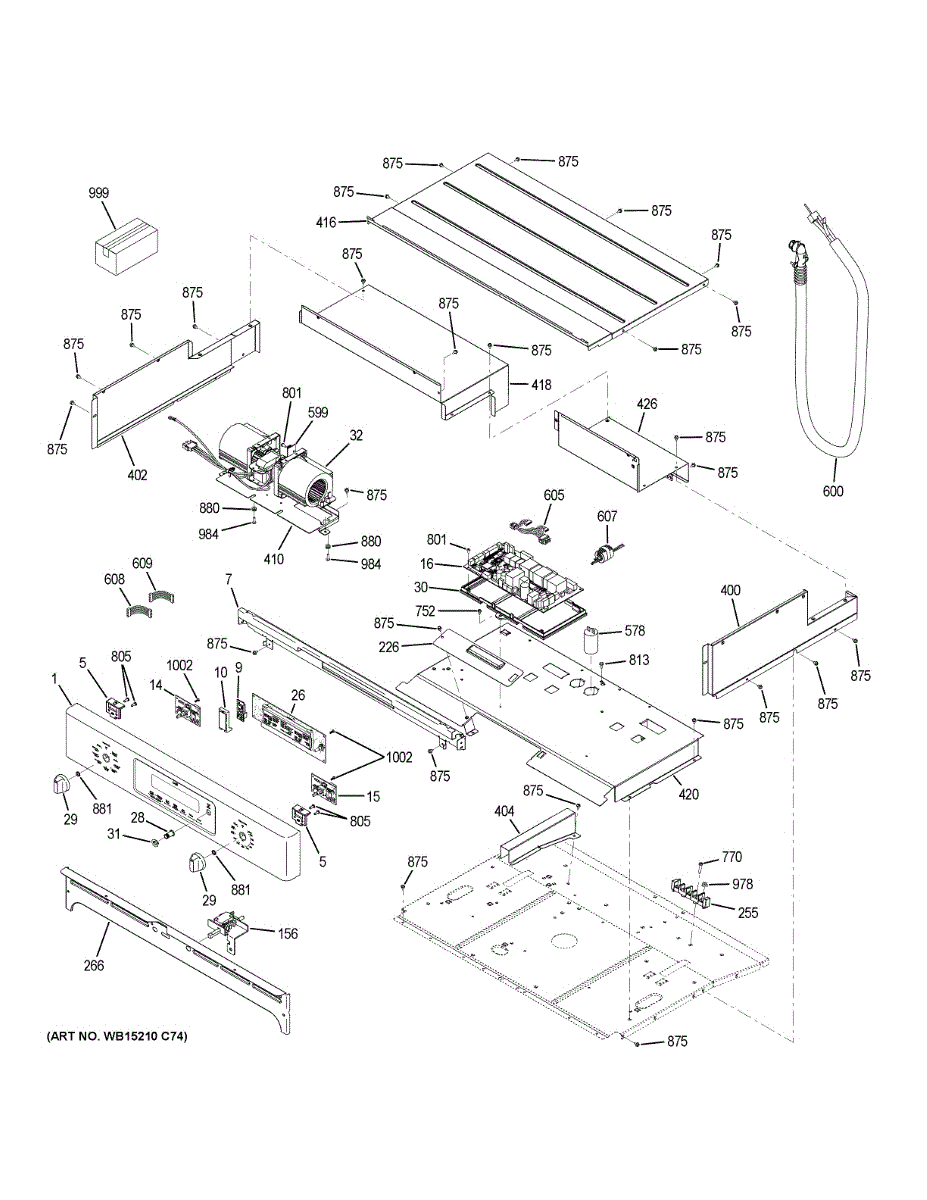

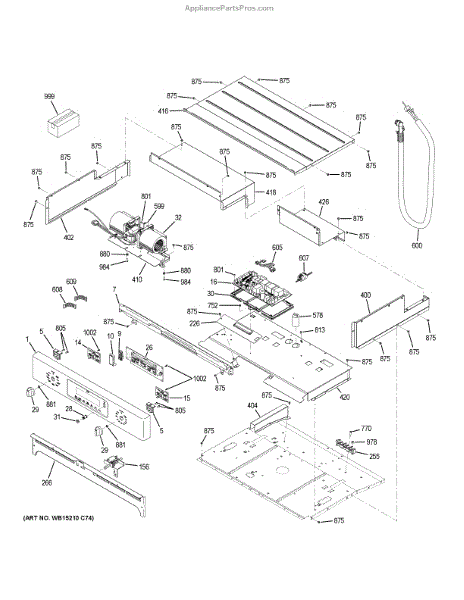

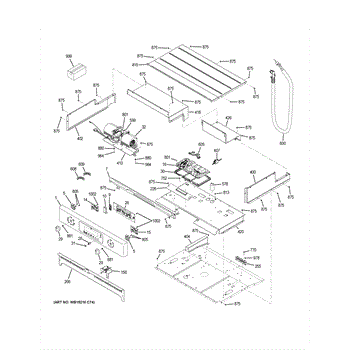

Parts for Ge CT9070SH2SS: Control Panel Parts

This control panel assembly replaces the electronic control and user interface for electric ranges and wall ovens. Restores responsive touchpad/buttons and the oven control/display so you can set temperatures, timers, and modes reliably. What it does:

• Houses the electronic control board, display, and touchpad or membrane buttons to operate oven functions.
• Replaces a panel that causes unresponsive or stuck buttons, missing or fuzzy display segments, or intermittent control behavior.
• Allows selection of bake/broil/self-clean and temperature settings through the front user interface.
• Works with the oven's internal circuits to send commands for heating elements and timers.

• One control panel assembly as shown.

• Disconnect power at the breaker before beginning any repair to avoid shock or damage.
• Handle the display and touchpad with care to avoid scratches or pressure damage to the lens and membrane.
• Verify connector orientation and secure all wiring harnesses; test the unit function before reassembling trim or outer panels.

This control panel support bracket secures the console/upper control assembly to the oven/range frame, keeping the control panel stable and aligned for reliable operation and user access. What it does:

• Supports and stabilizes the front control/console to prevent sagging or wobble
• Keeps control switches, buttons and display aligned for correct operation
• Reduces vibration and rattling noise from a loose console
• Helps maintain proper spacing so knobs and trim install correctly

• One control panel support bracket

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove backguard/console trim to access bracket; retain all fasteners for reassembly
• Use common hand tools (screwdrivers, nut drivers); avoid forcing plastic tabs
• Handle electronic components with care and avoid static discharge

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

This user interface board mounts behind the selector knob and translates your input to the appliance's control system. Replacing a faulty board restores responsive knob operation so you can scroll and select settings reliably. What it does:

• Interprets knob rotation/press inputs and communicates them to the main control
• Enables scrolling through and selecting settings and menu options
• Typical failure symptoms: knob unresponsive, skips selections, scrolls erratically, or won't change settings
• Causes intermittent or no response from the knob area of the UI

• Disconnect power at the breaker before servicing
• Use ESD precautions; handle the circuit board by the edges
• Note/photograph connector locations; seat ribbon and plug connectors fully
• Transfer any reusable brackets or clips from the original board

This user interface selector knob replaces a worn, cracked, or missing control knob on the appliance control panel to restore reliable setting selection and tactile feedback. It's a direct-fit exterior control for the range/oven control panel. What it does:

• Rotates to select heat, timer, or function settings from the appliance control board.
• Restores a secure grip and clear position feedback when original knob is loose, stripped, or broken.
• Prevents accidental setting changes by providing a firm detent and stable interface.
• Matches original fit and operation for smooth, repeatable control input.

• One control panel user interface selector knob (single knob)

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Usually installs by pulling off the old knob and pushing the replacement onto the control shaft; use a gentle, straight pull/push.
• If knob does not seat or turns freely, inspect the control shaft for damage—do not force the knob.

This machine control board is the appliance's main electronic control that manages cycles, timers and user inputs so the unit runs the selected functions reliably. It replaces a failed control to restore normal operation. What it does:

• Receives signals from buttons, dials and sensors and directs power to the motor, valves and heaters
• Controls cycle timing, start/stop commands and program sequencing
• Commonly used when the appliance won't start, displays error codes, or cycles incorrectly
• Helps resolve intermittent operation or unresponsive controls when board failure is confirmed

• One machine control board

• Disconnect power before accessing or replacing the control to avoid shock
• Handle the board by its edges and avoid touching components or connector pins
• Verify connector locations and orientation before detaching wiring; photograph connections if needed

This knob timer assembly replaces a worn or broken oven timer knob so you can set and adjust cooking time and oven functions reliably. It restores manual timer control and a finished look to the oven control panel. What it does:

• Provides a functional timer knob for setting cook time and manual timer controls
• Replaces cracked, stripped, or non-moving knobs that won't turn or engage the timer
• Helps restore proper user interface when the original timer knob is loose or missing
• Fits into the oven control fascia and mates with the timer/control shaft to transmit user input

• 1 knob timer assembly

• Requires basic hand tools; remove power to the appliance before starting
• Pull or remove the old knob/assembly from the control shaft; press the new assembly onto the shaft until secure
• Do not force parts; if resistance or misalignment occurs, stop to avoid damage

This switch plate assembly replaces a cracked or worn control-panel trim on electric ranges and cooktops to restore a clean, secure mounting surface for control switches and knobs. It helps keep controls aligned and protects underlying wiring. What it does:

• Replaces damaged or cracked control-panel trim that can expose switches or wiring
• Provides a stable mounting surface for selector switches and knobs, preventing looseness
• Restores proper fit and appearance to the control area to improve user safety and function
• Reduces the risk of debris or grease entering the switch openings

• Disconnect power to the appliance before starting any repair to avoid shock hazard.
• Remove necessary trim, knobs, or backguard screws to access and replace the plate; keep hardware for reassembly.
• Handle edges and painted surfaces carefully to avoid scratches; align openings for switches and fasteners before tightening.
• If switches or wiring appear damaged, inspect and replace those parts separately—only the plate is included.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

This air divider redirects cold air from the evaporator to the correct fresh-food or freezer area to help stabilize compartment temperatures and improve overall cooling performance. What it does:

• Guides chilled air through the correct ducting to balance temperatures between compartments
• Helps prevent one area from becoming too cold while another stays warm
• Can reduce temperature swings and improve defrost airflow when functioning correctly
• Typical symptom: uneven cooling or temperature fluctuations in refrigerator/freezer compartments

• One air divider piece

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access may require removing interior shelves, drawers, or back wall panel per your model's service instructions
• The part typically snaps or slides into place; inspect surrounding ducts/gaskets for damage before reassembly

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This conduit wire assembly routes power and signals between oven/range components, restoring proper electrical connections for heating and control circuits. It provides a pre-formed, insulated harness that replaces damaged or worn wiring for reliable operation. What it does:

• Carries electrical power and control signals between terminals, control board, and heating elements.
• Replaces damaged, frayed, or burnt wiring that can cause intermittent operation.
• Commonly used when burners, oven elements, or controls fail to get power or work inconsistently.
• Helps prevent shorts by restoring proper insulation and secure connector fit.

• One conduit wire assembly as shown.

• Disconnect all power at the breaker or appliance cord before servicing.
• Verify the harness routing and connector orientation before disconnecting old wiring.
• Inspect terminal connectors and mounting points; replace if corroded or damaged.

This flexible 6-foot conduit routes and protects power wiring for compatible appliances, providing a neat, durable path for electrical leads and helping prevent kinks or abrasion during installation and service. What it does:

• Shields and organizes the appliance power cord or wiring harness to reduce wear and chafing
• Provides a protected, flexible pathway when extra cable length is needed
• Helps maintain a clean installation and prevents sharp bends near terminals
• Commonly used as an optional accessory when relocating or extending factory wiring

• One 6 ft flexible conduit

• Suitable for use where manufacturer allows optional conduits; follow appliance wiring and grounding instructions
• Disconnect power before installing or routing wiring to avoid shock or damage
• Use appropriate connectors/clamps at both ends to secure conduit and prevent strain on wires

This complete wire harness routes power and signals between an appliance's control board and components, restoring reliable electrical connections for normal operation. Replace a damaged harness to stop intermittent power, control errors, or non-responsive functions. What it does:

• Provides the factory wiring bundle that links the control board to motors, switches, sensors, and lights
• Restores lost or intermittent electrical connections that cause flickering lights or intermittent operation
• Helps resolve control-panel errors and functions that won't respond
• Replaces cracked, frayed, or damaged wires and connectors that can cause shorts or open circuits

• Disconnect power (unplug or turn off house circuit breaker) before beginning any repair
• Inspect connectors and mating terminals for damage; replace if terminals are corroded or excessively worn

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
