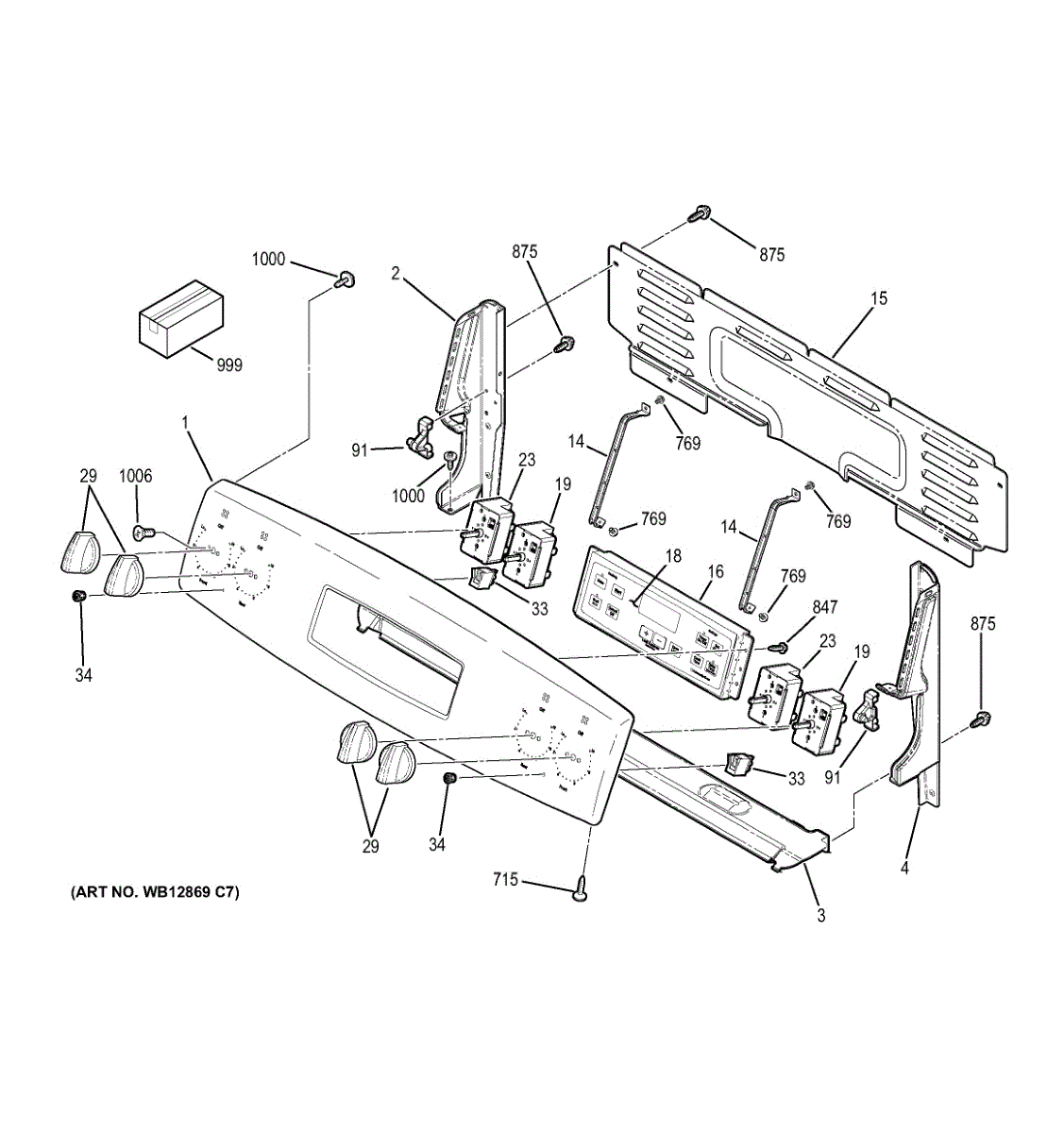

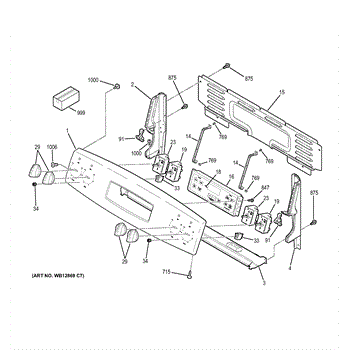

Parts for Ge JB250DF2WW: Control Panel Parts

This control bracket secures the appliance control assembly to the cabinet, keeping the control panel stable for reliable operation and preventing movement that can cause loose connections or noise. It's a direct-fit mounting part used where the control needs support. What it does

• Secures the control or control board to the appliance cabinet or console
• Keeps the control panel aligned and prevents vibrations or rattling
• Helps maintain reliable electrical connections by preventing movement
• Can resolve symptoms like a loose or shifting control panel, unusual noise near the control area, or intermittent contact caused by a displaced control

• One control bracket (mounting bracket), as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; retain original fasteners unless replacements are specified
• Verify the part number matches the original part before installation

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This faceplate graphics is the white overlay for the control panel that displays the printed labels and icons. Replace a worn or peeling overlay to restore clear, readable markings and a clean, like-new appearance on the control area. What it does:

• Provides the printed labels/icons for the control panel controls
• Restores legibility when markings are faded, scratched, or damaged
• Refreshes the control area's appearance to match the appliance finish
• Common symptoms: peeling, bubbling, cracking, missing sections, or hard-to-read labels

• 1 faceplate graphics overlay in white

• Disconnect power at the breaker before servicing
• Remove knobs, trim, or the control panel cover as required by your model
• Carefully remove the old overlay and clean/dry the mounting surface
• Align the new overlay and apply smoothly to avoid wrinkles or bubbles

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Infinite Knob is an OEM part for GE ranges. This knob is used to control the heat settings on the range’s burners, allowing for precise temperature adjustments during cooking.

Causes of a bad infinite knob can include wear and tear from regular use, accidental damage from impacts, or internal component failure that affects the knob’s ability to turn or properly control the burner.

Symptoms of a bad infinite knob include:

• Difficulty turning the knob
• Burners not responding to temperature adjustments
• Knob feeling loose or wobbly
• Cracks or visible damage on the knob

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

White. 8-18 x 5/16 inch.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

Black. 8-18 AB HXW 3/8
