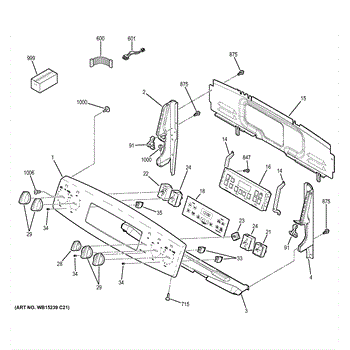

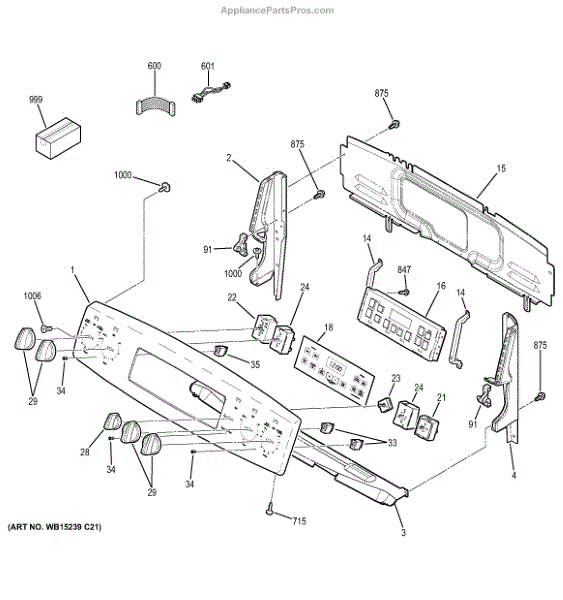

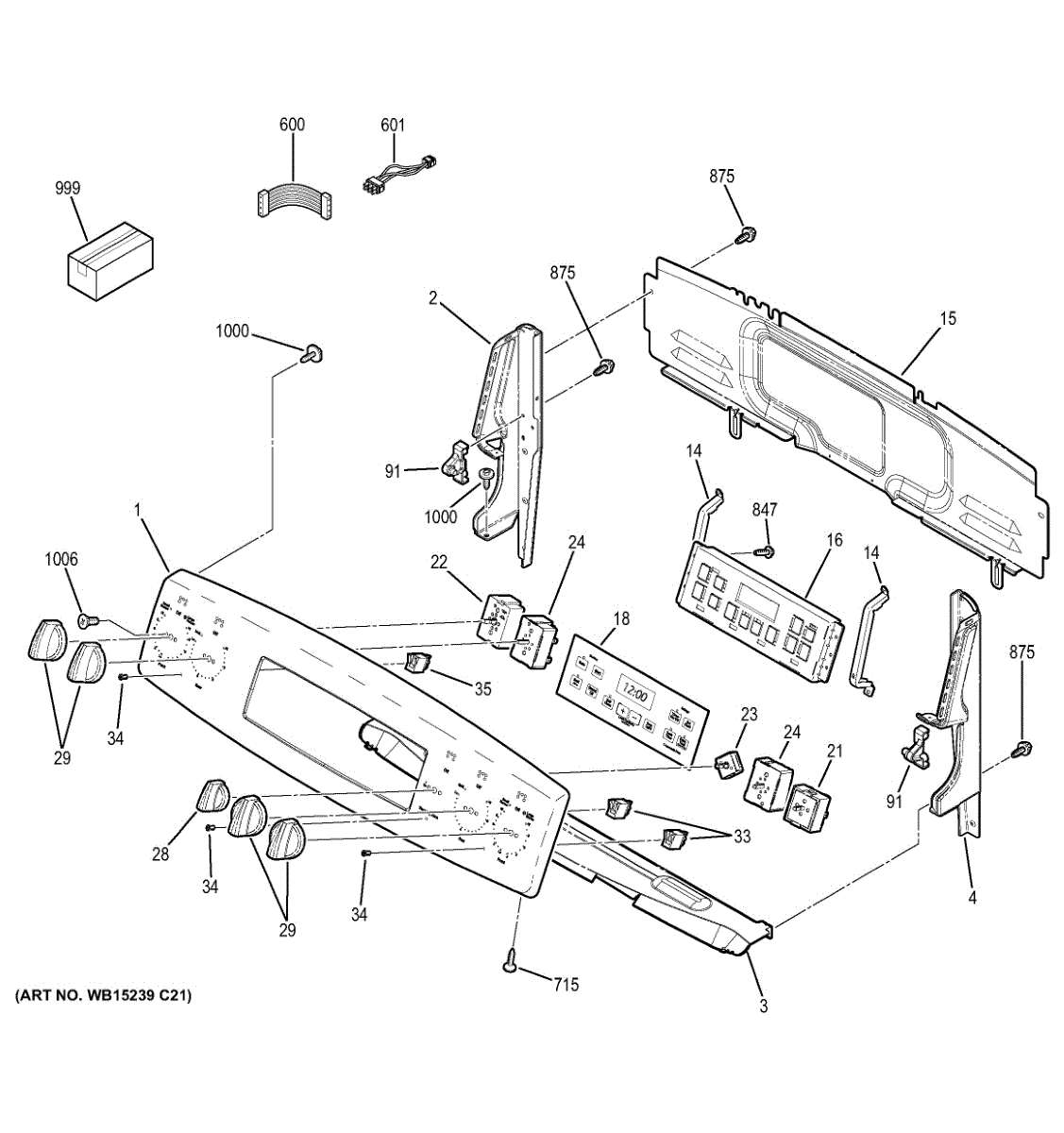

Parts for Ge JB640DF6BB: Control Panel Parts

This control bracket secures the appliance control assembly to the cabinet, keeping the control panel stable for reliable operation and preventing movement that can cause loose connections or noise. It's a direct-fit mounting part used where the control needs support. What it does

• Secures the control or control board to the appliance cabinet or console
• Keeps the control panel aligned and prevents vibrations or rattling
• Helps maintain reliable electrical connections by preventing movement
• Can resolve symptoms like a loose or shifting control panel, unusual noise near the control area, or intermittent contact caused by a displaced control

• One control bracket (mounting bracket), as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools (screwdriver, nut driver) are typically required; retain original fasteners unless replacements are specified
• Verify the part number matches the original part before installation

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control panel overlay replaces the worn faceplate for your appliance's electronic controls. It restores clear, legible button labels and a clean, finished look so you can see and select settings with confidence.

• Provides the printed graphics and labels for the control panel
• Covers and helps protect the underlying touch controls from everyday wear
• Restores readability when markings are faded, rubbed off, or discolored
• Common signs it's needed: peeling or bubbling film, cracked faceplate, delamination, unreadable text

• Disconnect power at the breaker before servicing
• Access the control panel as directed in your service manual; remove the old faceplate and any residue
• Align the new overlay carefully with display windows and keys; press evenly to secure without trapping air
• Handle any boards/touchpads and ribbon cables with care and observe ESD precautions

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Switch is an OEM part for GE ranges and cooktops, designed to control the heat level of the surface burners. This switch allows users to adjust the temperature of the burners for boiling, simmering, or frying.

Causes for replacement may include electrical issues within the switch, physical damage, or wear and tear from regular use. A faulty switch can lead to cooking frustrations, potential safety hazards due to uncontrolled heat, and increased energy consumption.

Symptoms of a bad Surface Burner Switch include:

• Burner not heating to the set level
• Burner heating inconsistently or not at all
• The switch feeling loose or failing to click into position

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This infinite control knob replaces a worn or broken range control knob to restore smooth temperature selection and reliable feel. It's a direct-fit user control for the infinite (continuously variable) heater control on many electric ranges. What it does

• Replaces a damaged or stripped infinite (continuously variable) control knob used to adjust burner heat level.
• Restores positive grip and indexing so you can set heat levels accurately.
• Helps resolve symptoms like a loose, cracked, or non-engaging knob that won't turn or register settings.
• Matches the OEM fit and function for the original infinite control shaft interface.

• One infinite control knob.

• Make sure the range control is in the OFF position and the appliance is disconnected from power before replacing the knob.
• Pull the old knob straight off the control shaft; align the replacement's splines with the shaft and push on until seated.
• If the knob won't seat, verify shaft type and orientation—do not force or hammer the part.

This replacement control knob restores a secure, accurate feel when setting temperatures on your cooktop or range. Swap out a worn or broken knob to regain smooth, dependable control of your appliance's settings. What it does:

• Attaches to the valve or switch stem to select Off and heat levels
• Restores positive grip and precise adjustment when turning the control
• Common symptoms: cracked or stripped knob, wobbling/loose feel, missing knob, difficulty adjusting heat
• Helps ensure consistent, repeatable burner control

• One control knob

• Disconnect power; shut off gas supply before servicing
• Pull the old knob straight off the stem—do not pry against the control panel
• Align the flat/D-shaped opening with the stem and press the new knob on fully in the Off position
• Test for smooth rotation and proper engagement

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This is a 6-20 machine screw, 3/8 inch length, used to secure trim, panels, or small components on compatible cooking appliances. Replacing a missing or damaged screw helps keep parts tight and prevents rattles or shifting during use.

• Fastens brackets, panels, or trim in the appliance chassis
• Helps restore a secure fit when the original screw is stripped or lost
• Can resolve issues like loose trim, minor rattling, or misaligned panels
• Nickel finish for corrosion resistance in warm, humid environments

• Disconnect power and allow appliance to cool before servicing
• Remove only the necessary adjacent fasteners to access the mounting point
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any missing clips or spacers originally used with the screw

Black. 8-18 AB HXW 3/8
