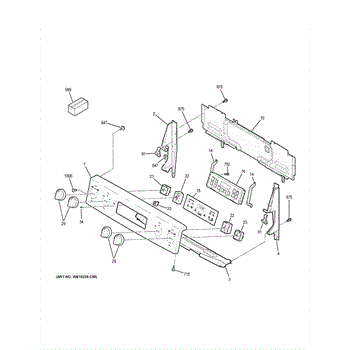

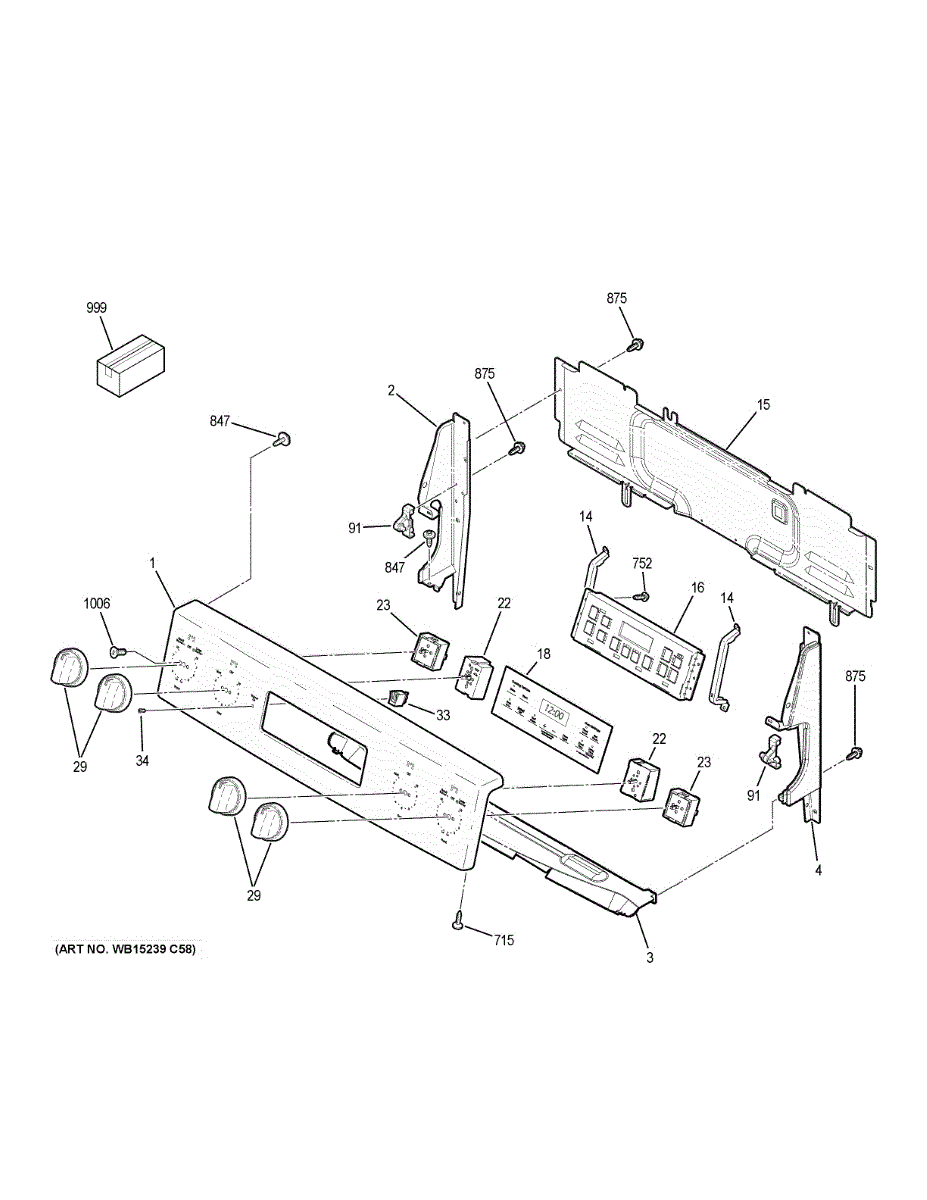

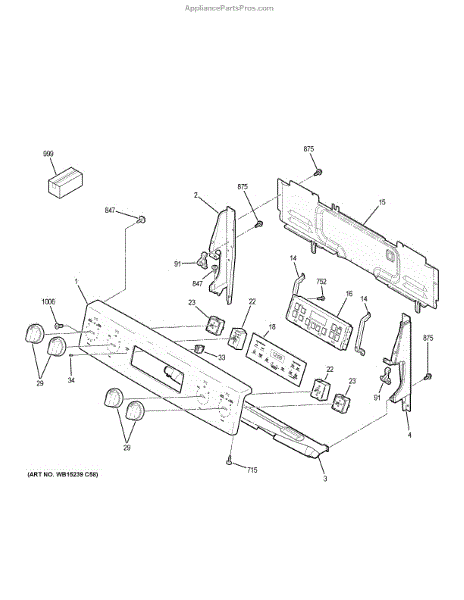

Parts for Ge JB645EK2ES: Control Panel Parts

This control panel trim assembly replaces the outer trim around the appliance control area to restore a finished appearance and secure the control components. It helps keep buttons and displays properly aligned and protects the control area from wear. What it does:

• Replaces damaged, cracked, or warped control trim that affects appearance or button alignment
• Secures and positions control buttons and overlay so controls operate correctly
• Helps protect the control area from everyday wear and dirt
• Restores a clean, finished look to the appliance front

• Disconnect power before starting any repair to avoid shock or accidental operation.
• Typically installs with screws and/or snap clips after removing the control console; keep fasteners for reassembly.
• Handle trim carefully to avoid scratching the finish or damaging attached clips.
• If buttons, switches, or the electronic control were affected, inspect those components and replace separately if needed.

The control panel End Plate (Left) is an OEM part for GE electric ranges. It forms a barrier along the back left edge of the control panel area providing structural reinforcement and protection.

Over time, end plates can sustain damage due to normal wear and tear of using range buttons/dials daily as well as impacts from accidental bumps. Causes may include operation fatigue plus occasional mishandling.

Causes of a bad end plate include:

• Dents, scratches or cracks in the protective barrier surface
• Loosened mounting fasteners holding it securely
• Reduced control panel integrity and rigidity over long use
• Exposure of fragile internal electronics to potential damage

This exact GE replacement part also fits Hotpoint, RCA and select Kenmore models.

This control bracket secures the console/control assembly to the range or oven frame, keeping the control board and user interface stable for reliable operation and a solid fit during use. What it does:

• Mounts and supports the oven/range control assembly and control board
• Keeps the console aligned to prevent rattling or loose buttons
• Restores proper fit when a broken or bent bracket causes a loose control panel
• Helps prevent wiring strain by keeping the control components in place

• Disconnect power to the appliance before starting any work
• Access typically requires removing the control console or back panel; keep screws and small parts organized
• Handle the control board and wiring carefully to avoid damage; avoid pulling on wires

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This faceplate graphic is the printed overlay that covers a microwave or oven control panel, restoring button labels and appearance for a clean, easy-to-read interface. Replaces worn, faded, or damaged control graphics. What it does:

• Restores visible button labels and icons so controls are readable and intuitive
• Protects the underlying control panel from dirt and minor wear
• Improves appearance of the appliance by replacing faded or scratched graphics
• Helps prevent accidental button mis-presses caused by illegible markings

• High-level replacement: peel off the old graphic and apply the new graphic to a clean, dry control surface
• Use gentle, even pressure when aligning to avoid bubbles; replace only when the control area is powered off
• If adhesive residue remains, clean with a mild, non-abrasive cleaner and allow to dry before installing

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Switch Infinite Control is an OEM part for GE ranges. It acts as a critical regulator for the temperature settings on electric dual-element burners, allowing users to adjust the heat level accurately. This component ensures that the electric burners heat up to the desired temperature and maintain it consistently for optimal cooking results.

Symptoms of a bad Switch Infinite Control include:

• Burners not heating to the set temperature
• Inability to adjust the heating level of burners
• Burners heating unevenly or excessively

Causes of a bad switch can include internal component failure due to overheating, wear and tear from frequent use, or electrical faults within the switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement control knob fits the surface burner's infinite switch on compatible ranges and cooktops. It restores smooth on/off operation and precise heat selection while refreshing the appliance's appearance.

• Attaches to the surface element's infinite switch to select OFF through HI settings
• Restores ability to turn the burner on/off and adjust heat levels accurately
• Ideal replacement for knobs that are cracked, stripped, loose, missing, or hard to turn
• Helps ensure the indicator aligns properly with the control panel markings

• Disconnect power and allow all burners to cool before servicing
• Pull the old knob straight off the switch shaft; do not pry against the control panel
• Align the new knob with the shaft and OFF position, then push straight on until fully seated
• Restore power and test each setting for proper engagement and alignment

This pilot indicator light mounts in the control panel and illuminates to show when a heating circuit is active. Replace a failed or damaged pilot light to restore a clear "on" reminder and improve everyday visibility around hot surfaces.

• Provides a visual "ON" signal when the corresponding control is turned on
• Common symptoms: indicator won't light, is dim or flickers, or the lens/housing is damaged
• Restores a clear status cue to help you see when heat is active
• Direct replacement for the original pilot light assembly

• Disconnect power at the breaker before servicing
• Remove back cover or control panel trim to access the light
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely in the panel opening, reassemble, and test

The Indicator Light Lens is an OEM component specifically designed for GE ranges. This clear plastic lens surrounds the internal cooktop indicator lights to protect the bulbs.

Causes of a damaged lens can include normal wear from regular usage as well as accidental bumps or spills on the control panel surface.

Symptoms include:

• Cracks, scratches or clouding appearing on the lens material
• The lens detaching from its mounting points
• Obscured visibility of indicator lights below

This genuine GE lens is compatible with Hotpoint, RCA, and Kenmore models too.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

Black. 8-18 AB HXW 3/8
