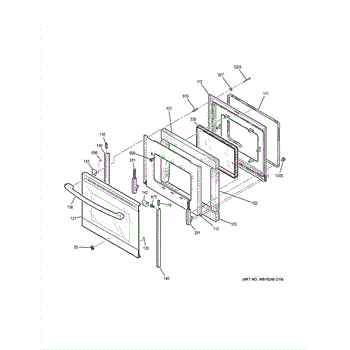

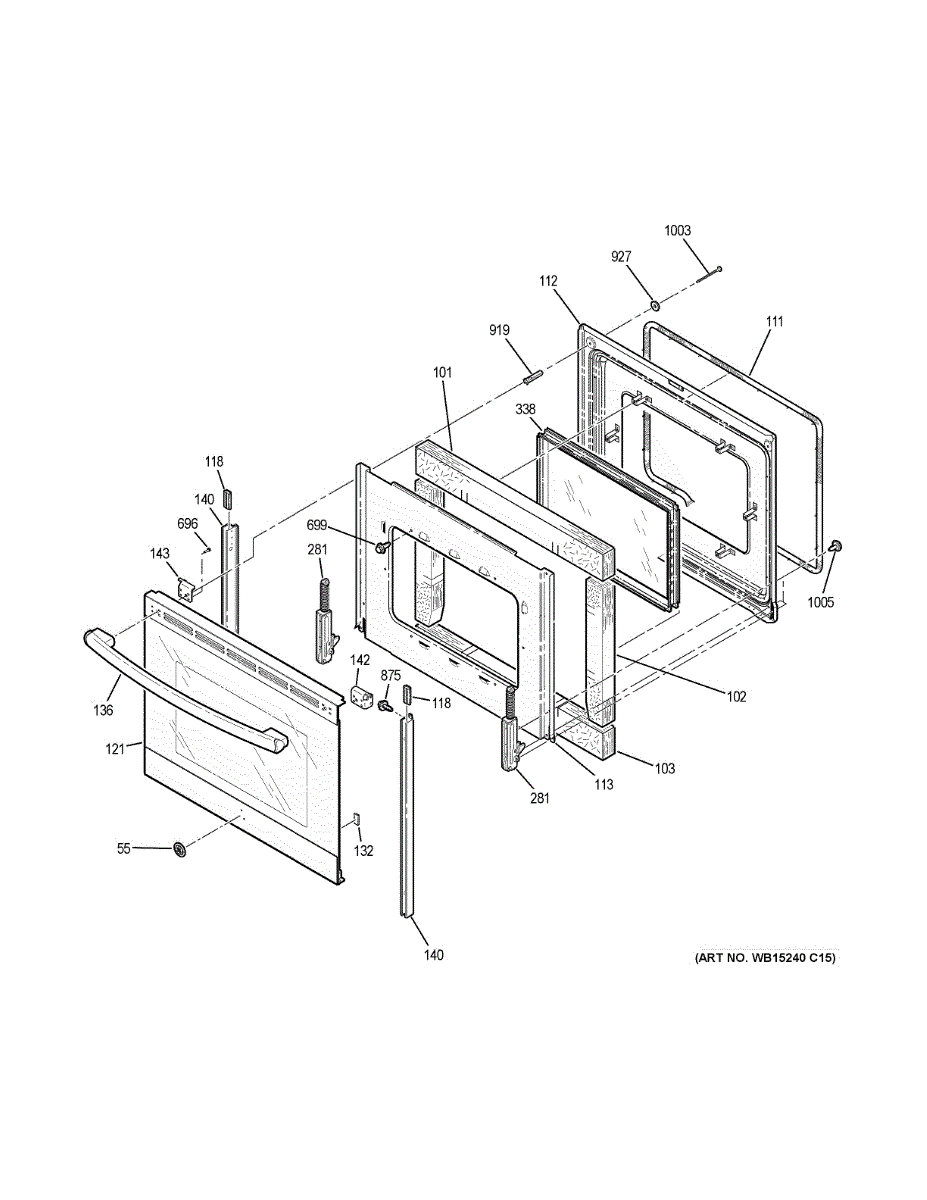

Parts for Ge JB645EK2ES: Door Parts

Decorative badge assembly that mounts on the front of your range. Displays brand and model information. Replace if cracked, peeling, or missing.

Replaces brittle, burned, or grease-soaked insulation inside your oven door. Restores the thermal barrier to reduce heat loss and exterior heat.

Insulation pad that lines the inside of your range oven door. Replace if torn, burnt, saturated, or missing to restore thermal barrier performance.

If your oven door exterior gets too hot or temperature fluctuates, this inner door insulation pad blocks heat transfer. Fits behind the inner panel.

Seals oven cavity to prevent heat loss during baking and broiling. Replace if worn, cracked, or heat escapes around door. Verify fit by model number.

Replace your range's oven door liner assembly if the inner panel is cracked, discolored, or damaged. Installs inside the door for a clean finish.

Retains oven door insulation in place on electric ranges. Replace if cracked, broken, or missing to secure door insulation and maintain proper fit.

Replacement mounting spacer for electric ranges. Positions and supports internal components to maintain proper clearance and alignment. Needed when cracked or missing.

This outer oven door panel in slate restores the exterior appearance and protects inner components from damage. It replaces a dented, scratched or discolored outer door surface so the range looks and functions as intended. What it does:

• Replaces damaged or cosmetically worn outer door surface to restore appearance
• Protects the inner door assembly and control area from impacts and spills
• Helps prevent heat escape caused by warped or bent outer door panels (common symptom: visible gaps or uneven door fit)
• Suitable when the outer face is dented, scratched, rusted, or otherwise cosmetically compromised

• One outer door panel, slate finish

• Disconnect power to the appliance before beginning any work and ensure the appliance is cool
• Removing and reinstalling the oven door may require two people to support the door safely
• Keep track of screws, clips, and gasket placement; test the door fit before full reassembly

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

The Handle and End Cap Assembly is an OEM replacement part for GE ranges. It is a stainless steel colored handle with the mounting encaps already attached.

Causes of a bad handle and end cap assembly can include normal wear from frequent use over many years. Damage from accidental impacts is also possible.

Symptoms of a bad handle and end cap assembly include:

• Difficulty opening or closing the oven door smoothly
• Excessive force required to engage the latching mechanism
• The door not sitting flush or properly sealing when shut
• Weakened hinges or handles prone to breakage
• Scratches, cracks, or deterioration appearing on surfaces

This OEM part is also compatible with some models produced by Hotpoint, Amana, and Sears Kenmore.

Replacement side trim for electric range doors. Restores door edge finish when original is cracked, broken, or worn. Maintains proper door fit and appearance.

Secures exterior trim to your range door on the right side. Replace this bracket if cracked, broken, or missing to restore a flush, finished look.

This left-hand door handle bracket secures the refrigerator door handle to the door, restoring a stable grip and proper handle alignment. Durable replacement part helps stop a loose or wobbly handle and keeps the door operating smoothly. What it does:

• Mounts the door handle to the left side of the refrigerator door
• Provides a secure anchor to prevent handle movement or sagging
• Restores proper handle alignment for comfortable opening and closing
• Helps eliminate rattling or looseness when the door is used

• One left-hand door handle bracket

• Designed for direct replacement; inspect mounting screws and handle for wear before installing
• Use basic hand tools; avoid overtightening fasteners to prevent cracking the bracket
• Disconnect power only when working near electrical components; follow appliance safety guidance
• If screws or handle hardware are missing or damaged, replace those parts as well

Replace worn, damaged, or broken range door hinges. Installs on both ends of the oven door to enable smooth opening and closing. Essential when hinges fail.

Replace cracked, broken, or shattered oven door window glass. This assembly includes the glass pane and securing brackets that install inside your range door.

ST10-16 X 7/16"

Black. 8-18 AB HXW 3/8

Replacement mounting spacer for electric ranges. Positions and supports panels to maintain alignment and proper fit. Replaces worn, missing, or damaged spacers.

Includes 12 washers.

10-32 threaded screw secures control panels, brackets, and internal components in electric ranges. Replace when stripped, missing, or loose.
