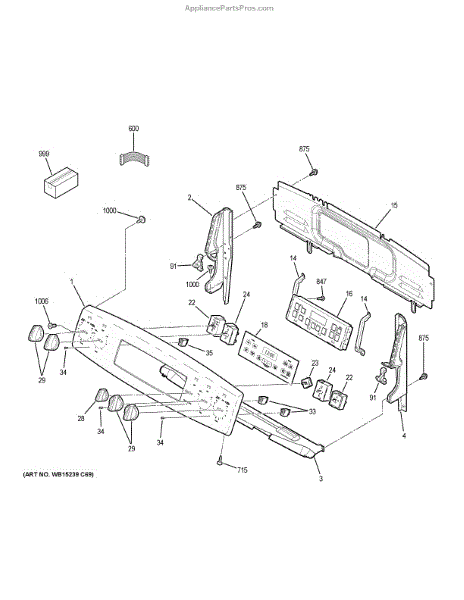

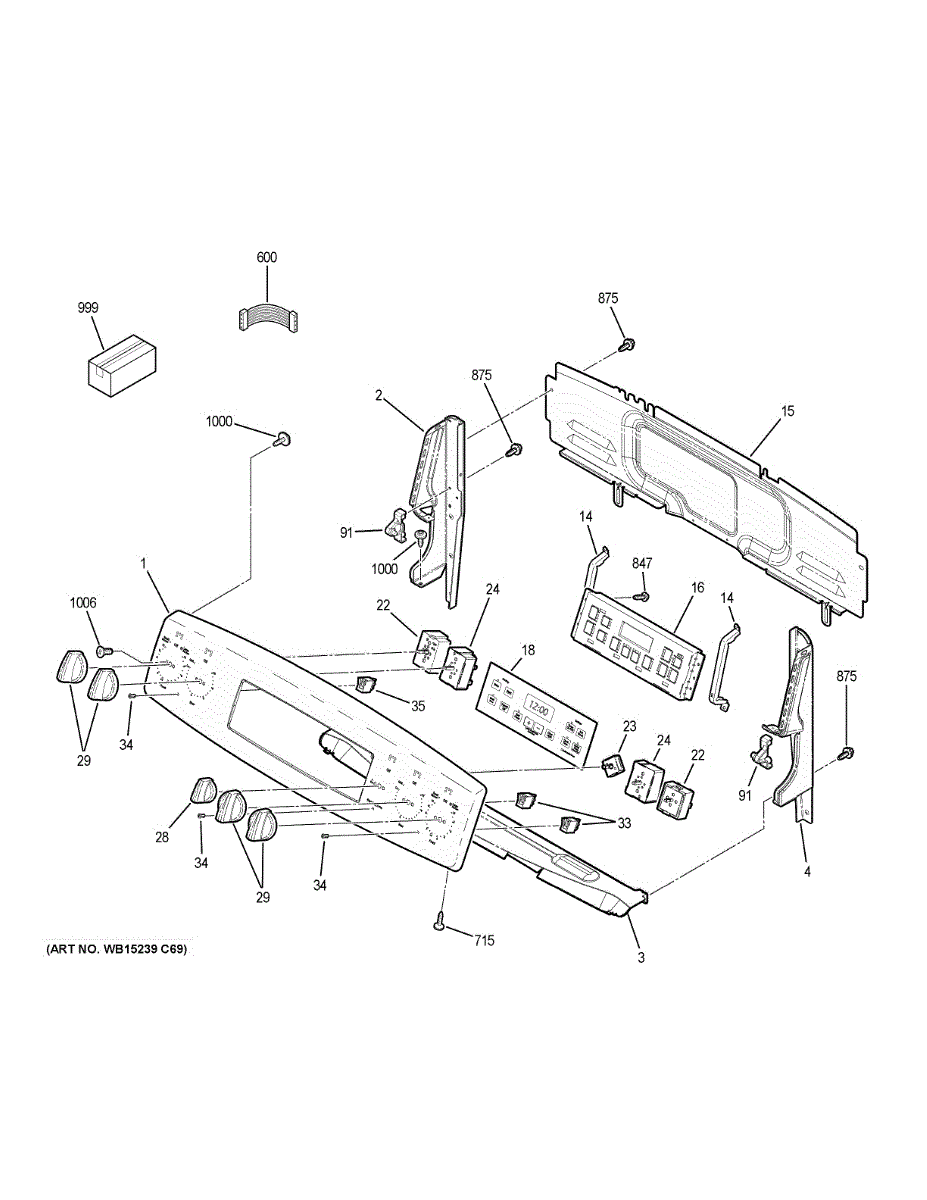

Parts for Ge JB650EF1ES: Control Panel Parts

This trim control assembly replaces a damaged or worn control trim to restore the appliance's appearance and secure the control area. It helps keep controls aligned and protects internal components from debris. What it does:

• Replaces cracked, chipped, or warped control trim that affects appearance
• Secures the control panel area so buttons and switches sit correctly
• Covers mounting hardware and openings to reduce dust and moisture exposure
• Helps prevent snagging or accidental contact with internal components

• Disconnect power to the appliance before starting any work.
• Basic hand tools are typically required; keep fasteners for re-use if reusable.
• Remove the control panel or trim per the service instructions to access mounting points.

Endcap for electric ranges. Covers and protects the end of the control panel or handle assembly. Replace if cracked, broken, or missing for a finished look.

Black endcap for electric range. Covers and finishes the edge of the cooktop surface. Replace if cracked, broken, discolored, or missing for a clean look.

Mounting bracket that secures the control assembly to the cabinet. Replace if cracked, bent, or broken to restore stable panel support and prevent loose connections.

Fix F2 error codes, dead oven display, or overheating issues. This oven control board manages temperature and cooking modes. DIY-friendly repair.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Fixes burner stuck on, no low heat, or burner not heating. Controls temperature levels on electric range surface burners. Moderate DIY repair.

Replacement control knob for range cooktop. Mounts on infinite switch stem to adjust burner heat levels. Needed when original knob is cracked, broken, or missing.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Fix a dim or unprotected oven light with this range light lens. Replaces cracked or broken protective glass covers. Simple 10-minute installation.

Range indicator light signals when heating elements are active. Replace when light fails to illuminate or is damaged to restore visibility and safety.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

Wire harness that connects infinite switch controls to your range burners. Replace when wires are frayed, connectors cracked, or harness damaged or melted.

Black mounting screw for dishwashers and ranges. Replaces lost, stripped, or damaged screws during appliance repair or panel reinstallation. 8-18 x 5/16 inch.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.
