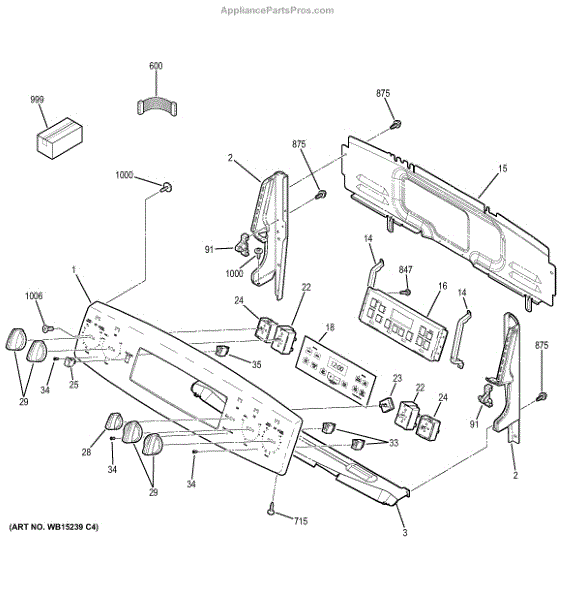

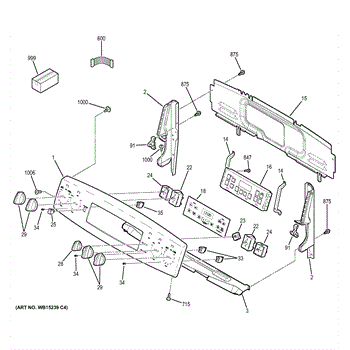

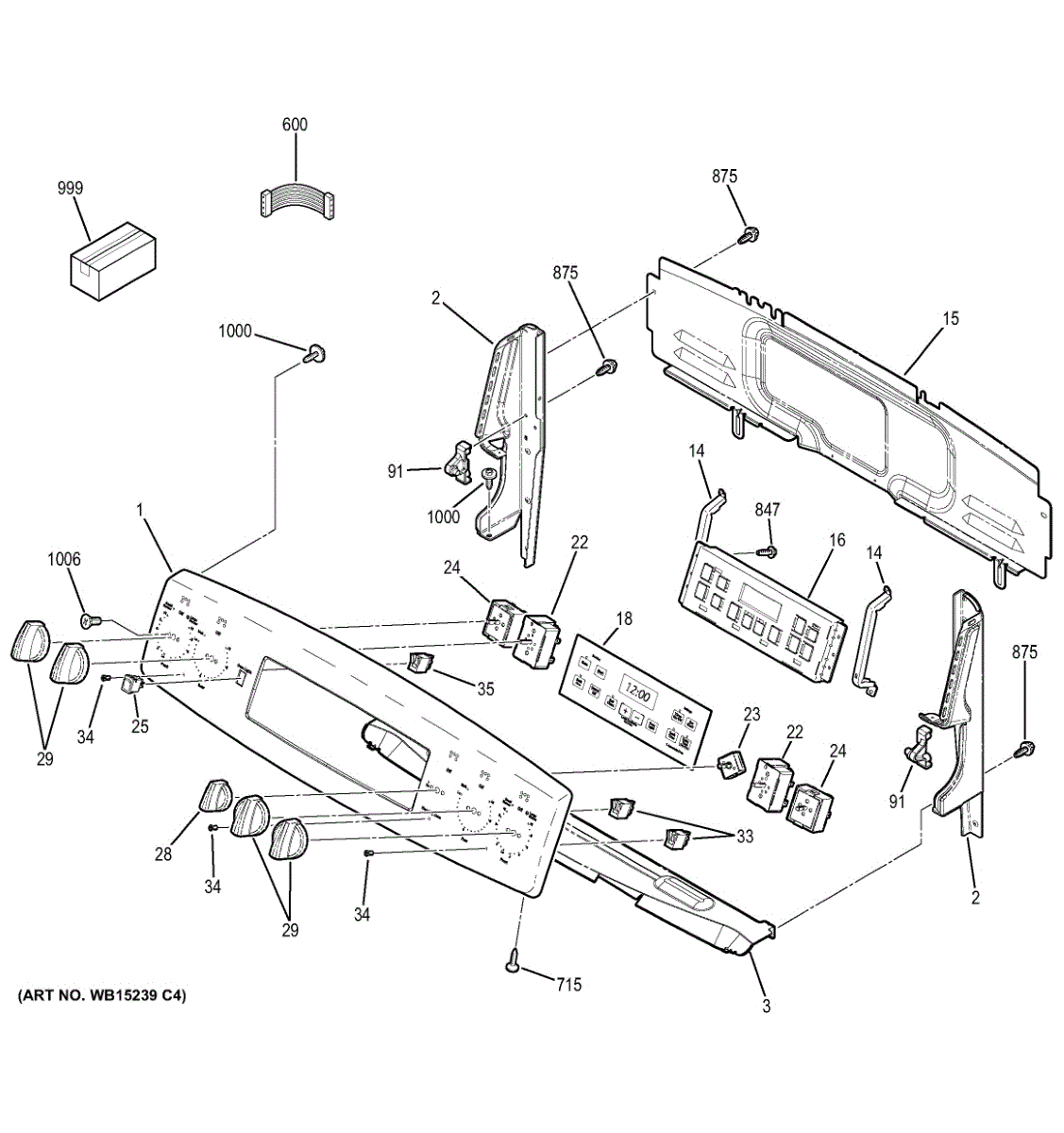

Parts for Ge JB690DF1WW: Control Panel Parts

Mounting bracket that secures the control assembly to the cabinet. Replace if cracked, bent, or broken to restore stable panel support and prevent loose connections.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Fixes burner stuck on, no low heat, or burner not heating. Controls temperature levels on electric range surface burners. Moderate DIY repair.

Burner won't heat or stay at the right temperature? This range infinite switch controls surface element heat levels. Direct replacement part.

Replace a broken or worn range control knob that won't turn smoothly or select precise heat settings. Restores safe, accurate temperature control.

Control knob for electric range burners. Mounts on the control panel to adjust heat settings. Replace if cracked, broken, loose, or missing.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Fix a dim or unprotected oven light with this range light lens. Replaces cracked or broken protective glass covers. Simple 10-minute installation.

Range indicator light signals when heating elements are active. Replace when light fails to illuminate or is damaged to restore visibility and safety.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

Wire harness that connects infinite switch controls to your range burners. Replace when wires are frayed, connectors cracked, or harness damaged or melted.

Black mounting screw for dishwashers and ranges. Replaces lost, stripped, or damaged screws during appliance repair or panel reinstallation. 8-18 x 5/16 inch.

6-20 x 3/8 inch nickel screw secures trim panels, brackets, and small components in dishwashers and ovens. Replace missing or stripped screws.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.
