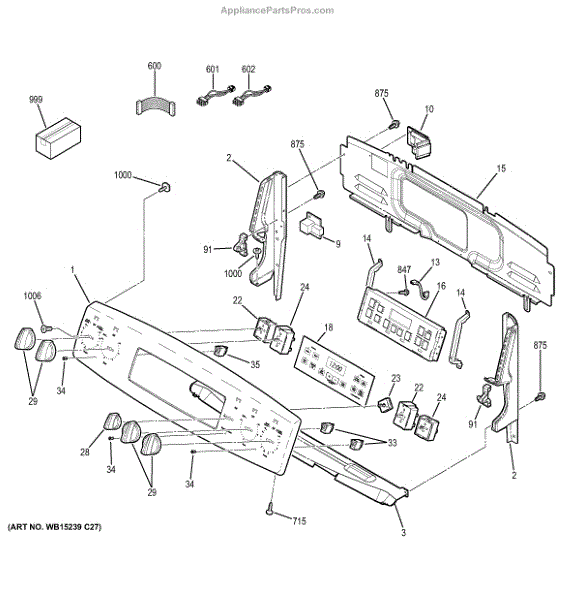

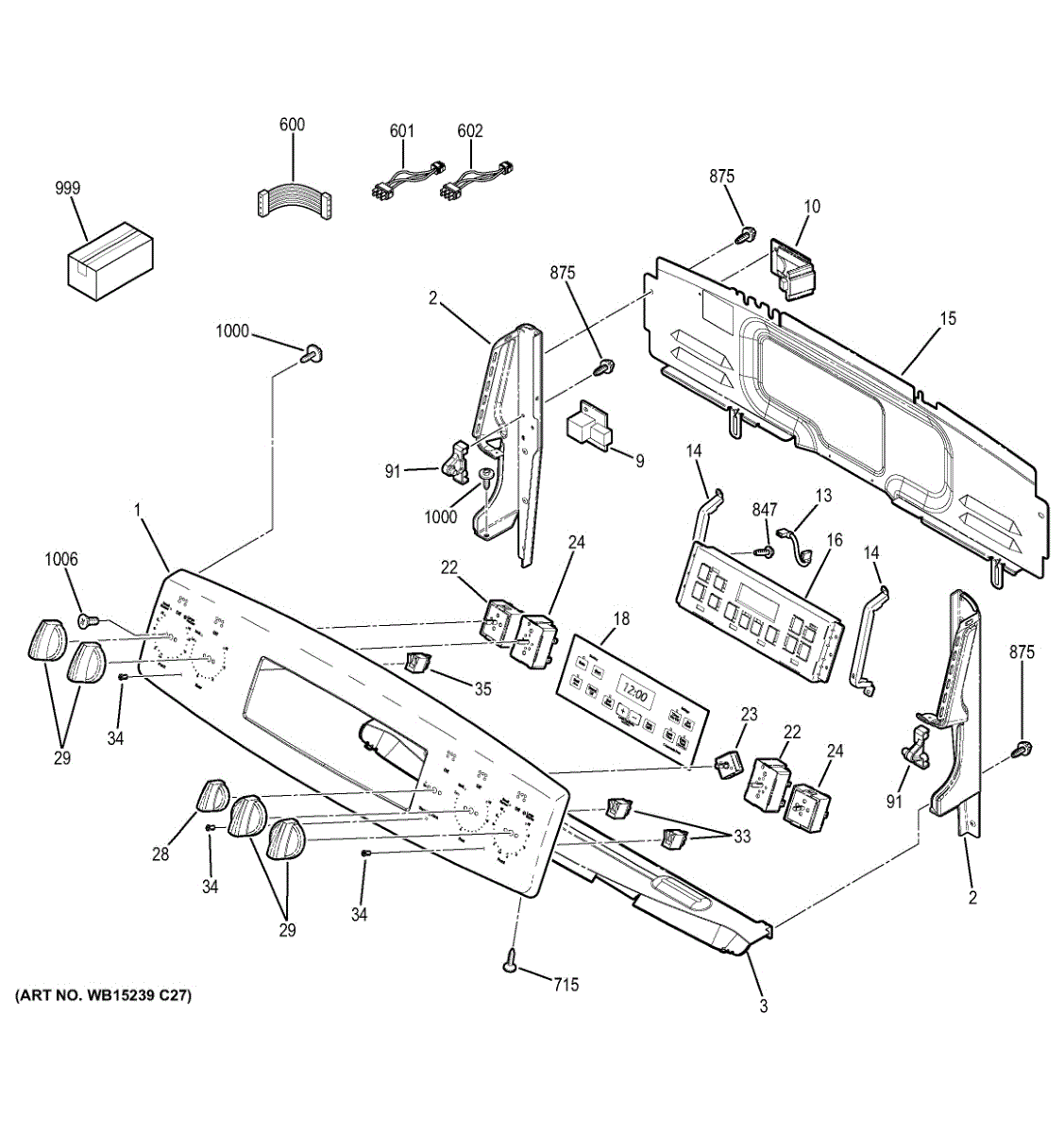

Parts for Ge JB740DF2WW: Control Panel Parts

Control panel housing assembly for cooktops and ranges. Replaces cracked, broken, or damaged housing that protects control interface components.

Control panel housing assembly for cooktops and ranges. Replaces cracked, broken, or damaged housing that protects control interface components.

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

Range won't respond to commands or complete cycles? A failed control board often causes unresponsive controls and smoking relays. Direct replacement repair.

This faceplate graphics overlay restores clear, legible control labels on the appliance control panel so settings and icons are easy to read. It replaces worn, faded, or scratched graphics to improve usability and appearance. What it does:

• Provides replacement control-panel graphics so buttons and symbols are visible
• Restores faded or rubbed-off text and icons that make controls hard to read
• Helps prevent incorrect setting selection caused by illegible markings
• Maintains the original look and alignment when properly installed

• Disconnect power before starting any repair to avoid shock risk
• Remove the control panel or trim as needed to access the existing graphics per the appliance service instructions
• Clean and dry the surface before aligning and applying the new overlay to ensure good adhesion

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Fixes burner stuck on, no low heat, or burner not heating. Controls temperature levels on electric range surface burners. Moderate DIY repair.

Replace a broken or worn range control knob that won't turn smoothly or select precise heat settings. Restores safe, accurate temperature control.

Control knob for electric range burners. Mounts on the control panel to adjust heat settings. Replace if cracked, broken, loose, or missing.

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Clear protective lens for range indicator lights. Replace when cracked, discolored, or missing to restore visibility of cooktop status lights. Verify fit with your range model number.

Range indicator light signals when heating elements are active. Replace when light fails to illuminate or is damaged to restore visibility and safety.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

Wire harness that connects infinite switch controls to your range burners. Replace when wires are frayed, connectors cracked, or harness damaged or melted.

Replace your range's worn or damaged 18-gauge wire harness lead. This electrical wire connects internal components and may need replacement if broken or frayed.

White mounting screw for dishwasher installation and assembly. Replaces lost, stripped, or damaged screws. 8-18 x 5/16 inch fastener for secure fit.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Silicon controlled rectifier for cooktop power control. Includes 8-32 mounting screw. Replace if damaged, corroded, or missing to restore proper installation.
