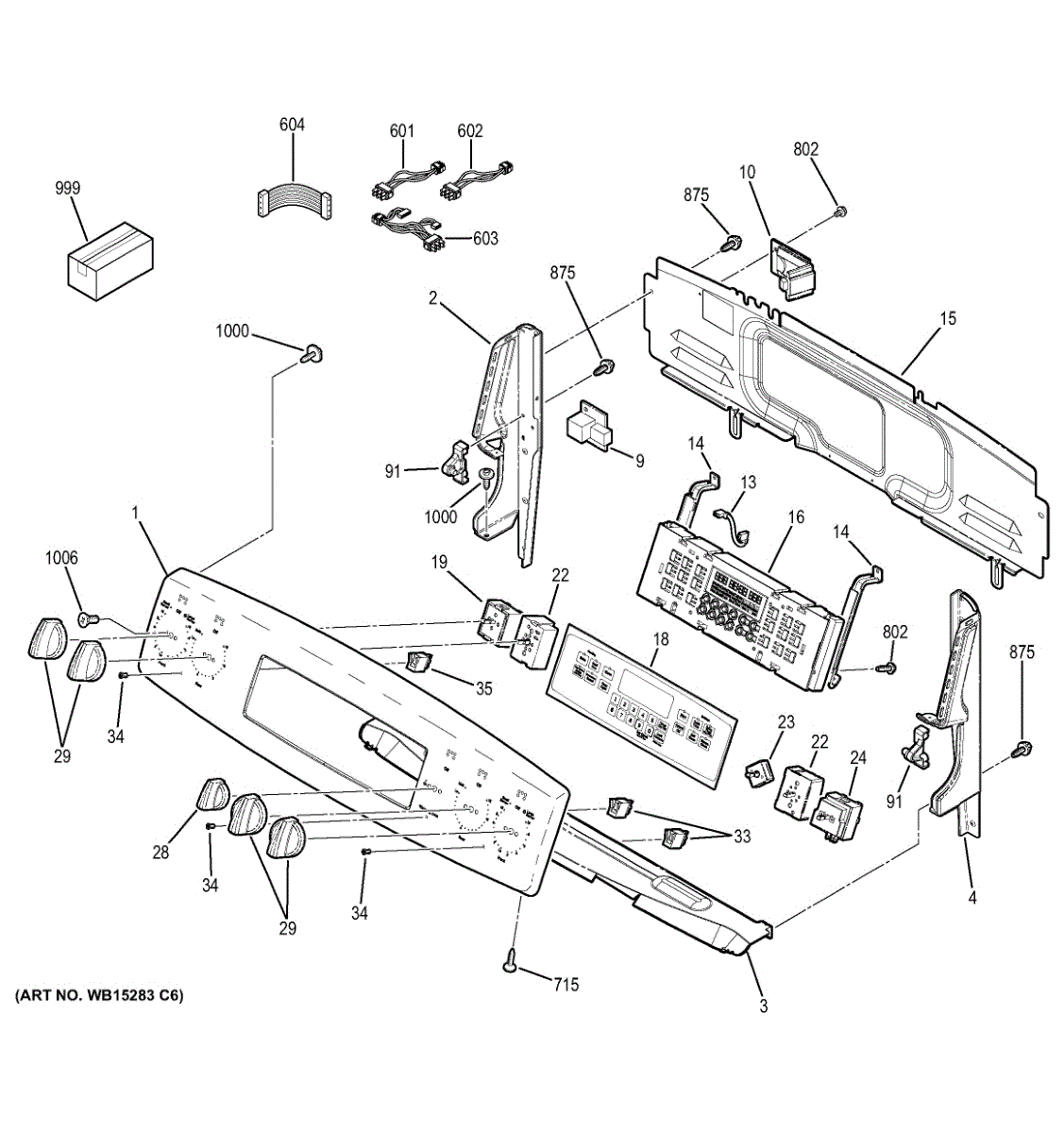

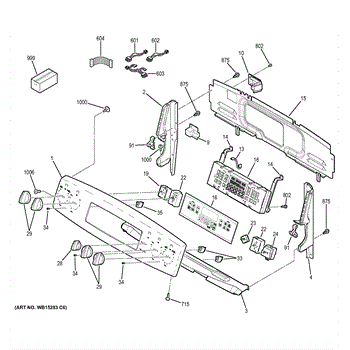

Parts for Ge JB745DF3BB: Control Panel Parts

Endcap for electric ranges. Covers and protects the end of the control panel or handle assembly. Replace if cracked, broken, or missing for a finished look.

Black endcap for electric range. Covers and finishes the edge of the cooktop surface. Replace if cracked, broken, discolored, or missing for a clean look.

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

This control board is the appliance's electronic brain. It reads keypad and sensor inputs, then switches relays to power the correct components so the unit powers on, responds to commands, and completes cycles as intended. What it does:

• Interprets user-interface inputs and sensor feedback, directing power to motors, lights, and the heating system through onboard relays
• Manages timing, sequencing, and safety interlocks during operation
• Drives the display and indicators for status and error reporting
• Common failure symptoms include a dark or flickering display, unresponsive controls, won't start or shuts off mid-cycle, intermittent operation, or clicking relays with no action

• 1 control board

• Disconnect power at the breaker or unplug before servicing; capacitors in some appliances can retain a dangerous charge—use caution
• Use ESD protection and handle the board by its edges to avoid static damage
• Photograph or label all connectors; transfer wiring one plug at a time to the new board
• After installation, verify all harnesses are fully seated; restore power and run a test cycle per the service instructions

Black graphics overlay for range control panel. Replaces faded, scratched, or peeling faceplate labels. Restores button and dial markings to original appearance.

Fixes burner stuck on, no low heat, or burner not heating. Controls temperature levels on electric range surface burners. Moderate DIY repair.

Burner won't adjust temperature or stuck on high? This surface burner control switch restores heat control. Quick 10-minute fix with basic tools.

Fixes burner stuck on high, won't heat, or uneven heating. This infinite switch regulates surface element power for precise temperature control.

Replace your worn, cracked, or missing range infinite control knob. This knob installs on the control panel to restore smooth temperature adjustment.

This replacement control knob restores a secure, accurate feel when setting temperatures on your cooktop or range. Swap out a worn or broken knob to regain smooth, dependable control of your appliance's settings. What it does:

• Attaches to the valve or switch stem to select Off and heat levels
• Restores positive grip and precise adjustment when turning the control
• Common symptoms: cracked or stripped knob, wobbling/loose feel, missing knob, difficulty adjusting heat
• Helps ensure consistent, repeatable burner control

• One control knob

• Disconnect power; shut off gas supply before servicing
• Pull the old knob straight off the stem—do not pry against the control panel
• Align the flat/D-shaped opening with the stem and press the new knob on fully in the Off position
• Test for smooth rotation and proper engagement

Pilot indicator light mounts in the control panel and illuminates when a surface element or heating circuit is powered. Replace if burned out or stuck on.

Clear protective lens for range indicator lights. Replace when cracked, discolored, or missing to restore visibility of cooktop status lights. Verify fit with your range model number.

Range indicator light signals when heating elements are active. Replace when light fails to illuminate or is damaged to restore visibility and safety.

This hinge pin secures the rangetop to the cooktop assembly, providing a reliable pivot point for lifting and lowering the top. It restores proper alignment and stable movement for safe, everyday use. What it does

• Replaces a worn or damaged hinge pin that can cause the rangetop to wobble, stick, or sit unevenly.
• Restores smooth pivot action when opening or closing the cooktop/top.
• Helps maintain proper alignment between the rangetop and the range frame to prevent binding.
• Works with the original hinge components to ensure a secure, stable connection.

• One hinge pin for the rangetop.

• Basic hand tools required; follow the range manufacturer's disassembly steps.
• Disconnect power supply and gas and ensure the appliance is cool before beginning work.
• Handle edges and springs cautiously; support the rangetop during removal/installation to prevent injury or damage.

This wire harness connects the oven/stove infinite switch to the appliance's wiring, restoring reliable control of surface burner power and heat settings. Designed to match the original harness form and terminals. What it does:

• Routes power and control signals between the infinite switch and the cooktop wiring
• Replaces damaged, burnt, or frayed wiring that can cause intermittent heat or loss of burner control
• Restores secure connector fit to prevent arcing or poor contact
• Helps resolve symptoms like burners that don't change heat levels, intermittent operation, or visible wiring damage

• Disconnect power at the breaker or unplug the appliance before beginning work
• Use proper wire connectors and ensure all terminals are fully seated; do not modify or splice unless necessary and secure
• If you see melted insulation, corrosion, or additional damage, inspect adjacent components and replace as needed

Replace your range's worn or damaged 18-gauge wire harness lead. This electrical wire connects internal components and may need replacement if broken or frayed.

Black. 8-18 x 5/16 inch.

Replacement mounting screw for securing panels, brackets, and components inside your appliance. Needed when original screws are stripped or missing.
