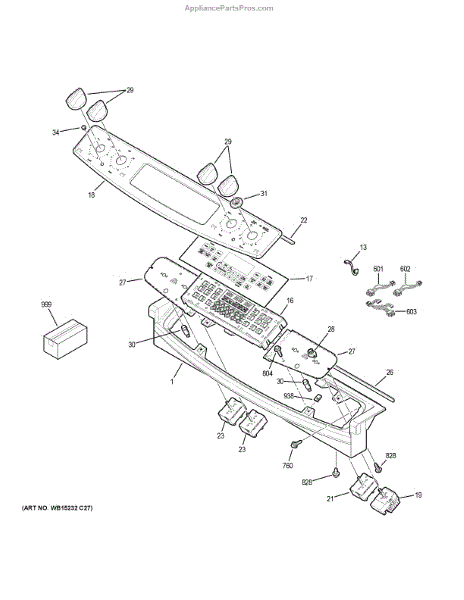

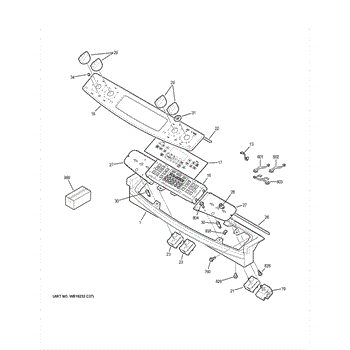

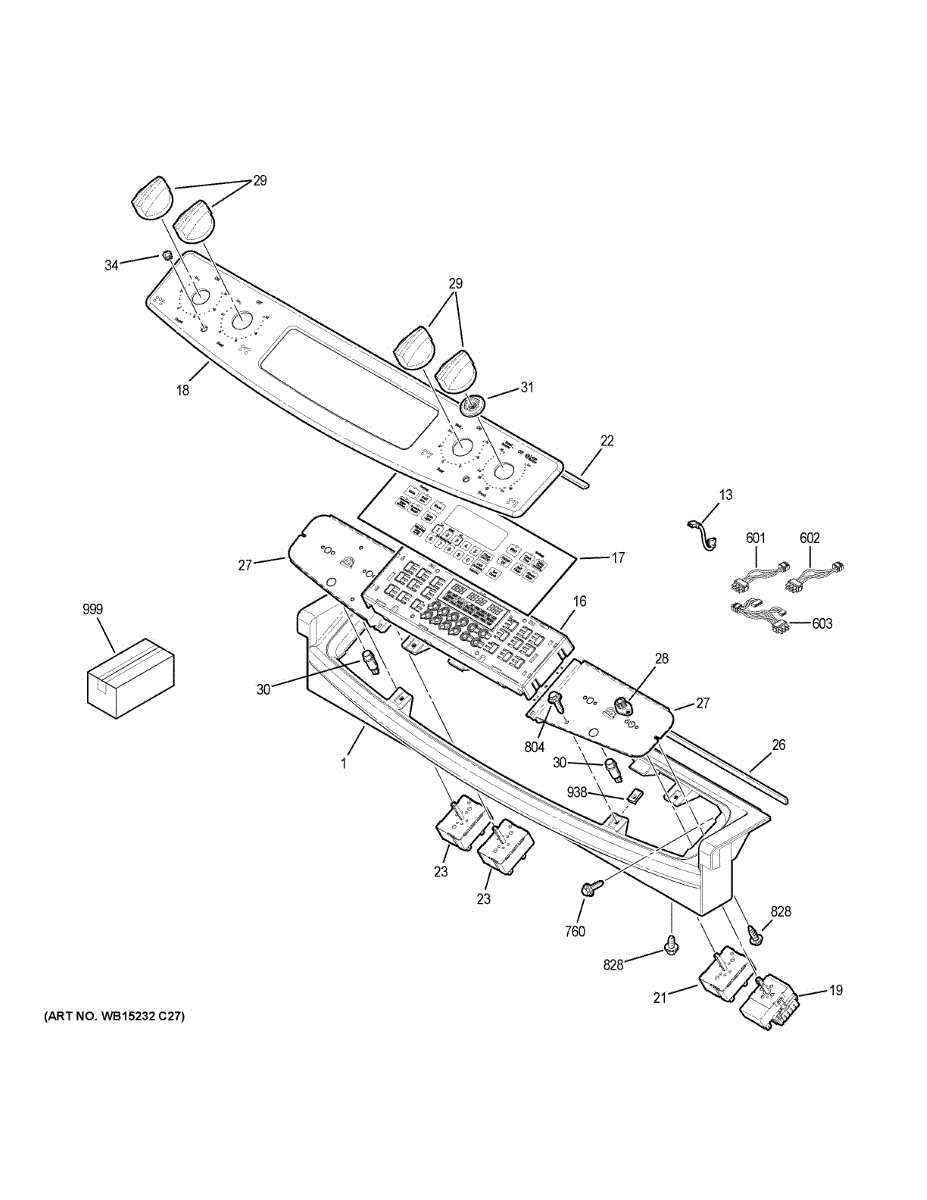

Parts for Ge JD630DF9WW: Control Panel Parts

This control panel assembly houses the user interface and display for the oven/range console, restoring readable displays and responsive buttons. Use it to replace a cracked, unresponsive, or malfunctioning front control console and regain normal oven control. What it does:

• Provides the button/touch interface and display for oven/range controls
• Replaces damaged or cracked console surfaces that block or misregister inputs
• Restores operation when buttons are sticky, unresponsive, or display is blank/intermittent
• Works as the main user interface for setting temperature, timers, and modes

• Disconnect power to the appliance at the breaker or unplug before starting.
• Handle the assembly carefully to avoid damaging the display, glass, or internal PCB and connectors.
• Use basic hand tools to remove the outer trim and mounting screws; support the panel while disconnecting wiring.

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This part is a range control board. It is responsible for controlling all of the functions on the appliance, from setting the heat temperature, setting the timer or bake time, turning on the oven light, and controlling the burners. Allow the oven plenty of time to cool down before attempting to access and replace this part.When the control board is faulty, then the buttons and knobs will not respond. For example, the burner knob could be turned on, but the burner itself does not turn on. The digital display may not work. An error code may appear on the display. Unplug the electric range from the electrical outlet first. Wear work gloves for safety during the process.This component is sourced straight from the manufacturer. It is sold individually. This particular control board is compatible with electric ranges that are manufactured by GE.

The Switch Infinite Control is an OEM component specifically designed for GE ranges. This particular switch operates the infinite heat settings on the front left cooking element.

Causes of switch malfunctions can include repeated toggling over years of usage. Electrical fluctuations or physical impacts could potentially degrade internal connections as well.

Symptoms include:

• Inability to select certain heat levels for the front left burner
• Erratic or unresponsive behavior from the infinite switch
• Inaccurate temperature control of associated burner

This genuine GE switch is compatible with Hotpoint, RCA and select Kenmore ranges too.

A replacement gasket faceplate that seals the appliance faceplate to help keep out moisture, dust and debris while restoring a snug fit and reducing rattling. Fits select GE appliances as the factory-style replacement. What it does:

• Seals the faceplate to the cabinet, helping prevent drafts and moisture intrusion.
• Replaces worn, cracked or deformed gaskets that cause visible gaps or uneven fit.
• Helps reduce faceplate movement and rattling during operation.
• Use when you see splits, compression set, or persistent gaps around the faceplate.

• Disconnect power to the appliance and remove any panels necessary to access the gasket.
• Carefully remove the old gasket and clean the mating surfaces of adhesive, dirt and debris.
• Align the new gasket in the mounting channel and press into place; replace any damaged clips or fasteners.
• Follow the appliance service manual for model-specific steps.

This control panel insert is the trim piece that covers and protects the appliance's front control area while allowing the panel lighting to show through, restoring a clean, finished appearance. What it does:

• Replaces a cracked, faded, or damaged control panel insert to improve appearance
• Protects the underlying control board and switches from spills and debris
• Lets control indicator/backlighting transmit clearly for easier visibility
• Matches OEM fit and mounting points for a direct replacement

• Disconnect power to the appliance before starting any repair
• Removal typically requires removing the console or trim; keep screws and fasteners organized
• Handle the insert carefully to avoid scratching the finish or damaging mounting tabs
• After installation, restore power and verify control operation and lighting

This indicator light installs in the control panel and illuminates to show when the monitored circuit is powered, restoring a clear visual status cue so you know at a glance when the appliance function is active.

• Provides a visible ON indication when the circuit it monitors is energized
• Typically used to indicate a surface unit, oven, or other energized function on the control panel
• Restores clear, reliable status feedback during operation
• Symptoms: light does not illuminate, stays on constantly, flickers intermittently, or lens shows heat damage

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the rear of the control panel; note wire locations or take a photo before removal
• Move wires to the new light and secure it in the panel without pinching leads
• Restore power and test for proper illumination

This snap-in indicator lens covers and diffuses a panel light, restoring clear status visibility while protecting the lamp opening. Replace a cracked, missing, or discolored lens to keep your appliance looking clean and functioning safely. What it does:

• Snaps into the panel to cover and protect the indicator light opening
• Diffuses the lamp for clear, consistent visibility
• Helps keep out dust, grease, and moisture
• Common symptoms: lens missing or cracked, won't stay seated, yellowed/opaque, indicator hard to see

• 1 snap-in indicator lens

• Disconnect power before servicing
• Access the control/backguard area as required by your model
• Release the old lens tabs and remove; align the new lens and press until it snaps flush
• Do not force; ensure correct orientation to avoid damaging the panel

This wire harness connects the infinite burner control to the cooktop's wiring, restoring proper electrical routing for surface element regulation. It replaces a damaged or worn harness to help re-establish safe, reliable burner control. What it does:

• Provides the correct wiring connection between the infinite switch and cooktop terminals.
• Restores electrical continuity when a frayed, burned, or disconnected harness prevents burner operation.
• Helps eliminate intermittent or no-heat symptoms caused by broken wires or loose terminals.
• Maintains OEM routing and connector fit for consistent control response.

• One wire harness for infinite control (exact OEM configuration)

• Disconnect all power to the range at the breaker before starting work.
• Handle connectors gently; use proper tools to release terminals without bending.
• Verify proper connector seating and secure routing away from heat sources before restoring power.
• If terminals or the infinite switch show damage, replace the affected components as recommended.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.
