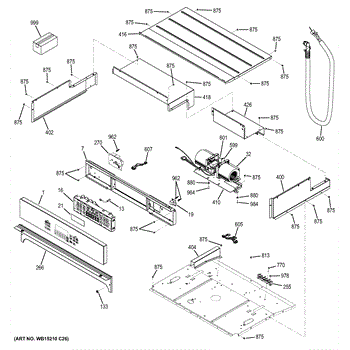

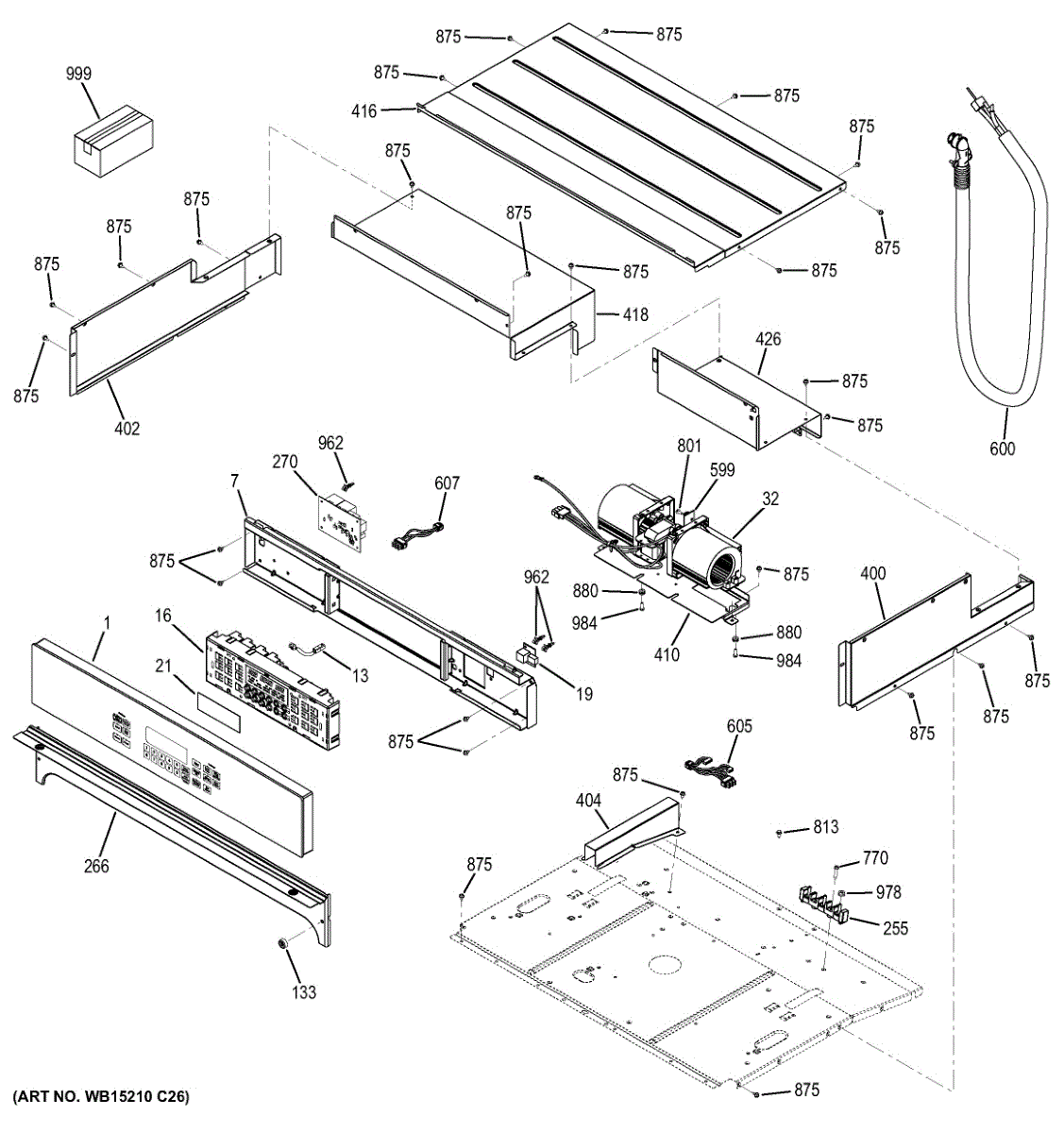

Parts for Ge JK5500DF3BB: Control Panel Parts

This electrical jumper links two terminals within the appliance's wiring to restore proper continuity for the affected circuit. Replace a burnt, damaged, or missing jumper to bring the related function back to reliable operation.

• Bridges terminals to complete or modify an electrical circuit as designed by the manufacturer
• Helps address symptoms like a specific feature not working, intermittent operation, or no power to a component
• Replace if the original shows heat damage, broken leads, or loose connections
• Direct replacement for the original jumper used in the wiring harness

• Disconnect power at the breaker or unplug the appliance before servicing
• Use your model's wiring diagram to locate the correct jumper
• Label/photograph wire positions and transfer one connection at a time
• Ensure connectors are fully seated; do not alter the factory wiring configuration

This electronic control board (T012) replaces the main appliance control module to restore user controls and cycle management. It provides a direct replacement for the oven/range control electronics so your unit can respond to settings and run cycles reliably. What it does:

• Manages user inputs, cycle selection and timing for the appliance
• Controls power to heating elements, displays and relays per selected functions
• Can resolve symptoms like a blank or unresponsive display, non-working controls, or failure to start cycles
• Works as the appliance's central logic board to coordinate safety and control signals

• One electronic control board (T012) — assembly only

• Disconnect all power to the appliance before starting any repair
• Handle the board carefully; avoid touching contacts and use anti-static precautions when possible
• Transfer any required mounting hardware, connectors or protective housings from the old board

This filter clock display is the replacement display assembly that shows the refrigerator clock and filter status indicators, helping you know when a water filter needs changing and restoring normal display function. What it does:

• Shows the refrigerator clock and elapsed time indicator for the water filter
• Displays filter status prompts so you can tell when a replacement is due
• Restores a blank, faded, or unresponsive filter/clock display
• Helps reset or update the filter life indicator when paired with proper reset steps

• Disconnect power to the appliance before beginning any work to avoid shock or injury.
• Handle the display assembly carefully to avoid scratching or damaging the lens or contacts.
• Small tools may be required to remove the control panel; keep track of screws and retainers.
• Follow model-specific disassembly and reassembly instructions.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture or accidental damage could potentially disrupt electrical connections.

Symptoms of a bad board relay include:

• Inability to ignite burners or power oven systems
• Removal of electricity to relevant relays requires diagnostics
• Loose, arcing or burned connections necessitating replacement

This OEM GE part is also compatible with Hotpoint, RCA and select Kenmore ranges.

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

This standoff secures and isolates the oven power control module from the range chassis, helping keep the control electronics stable and properly spaced for safe operation. Replaces worn or broken mounting standoffs. What it does:

• Provides a stable mounting point for the power control module or control board
• Maintains proper clearance and insulation between the control and metal chassis
• Prevents movement that can cause loose connections, arcing, or intermittent control faults
• Helps reduce vibration and stress on control board components

• Disconnect power to the appliance before inspecting or replacing the standoff
• Use only the exact replacement standoff to maintain insulation and spacing
• If the control board shows damage, inspect the electronic assembly and wiring for additional issues

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
