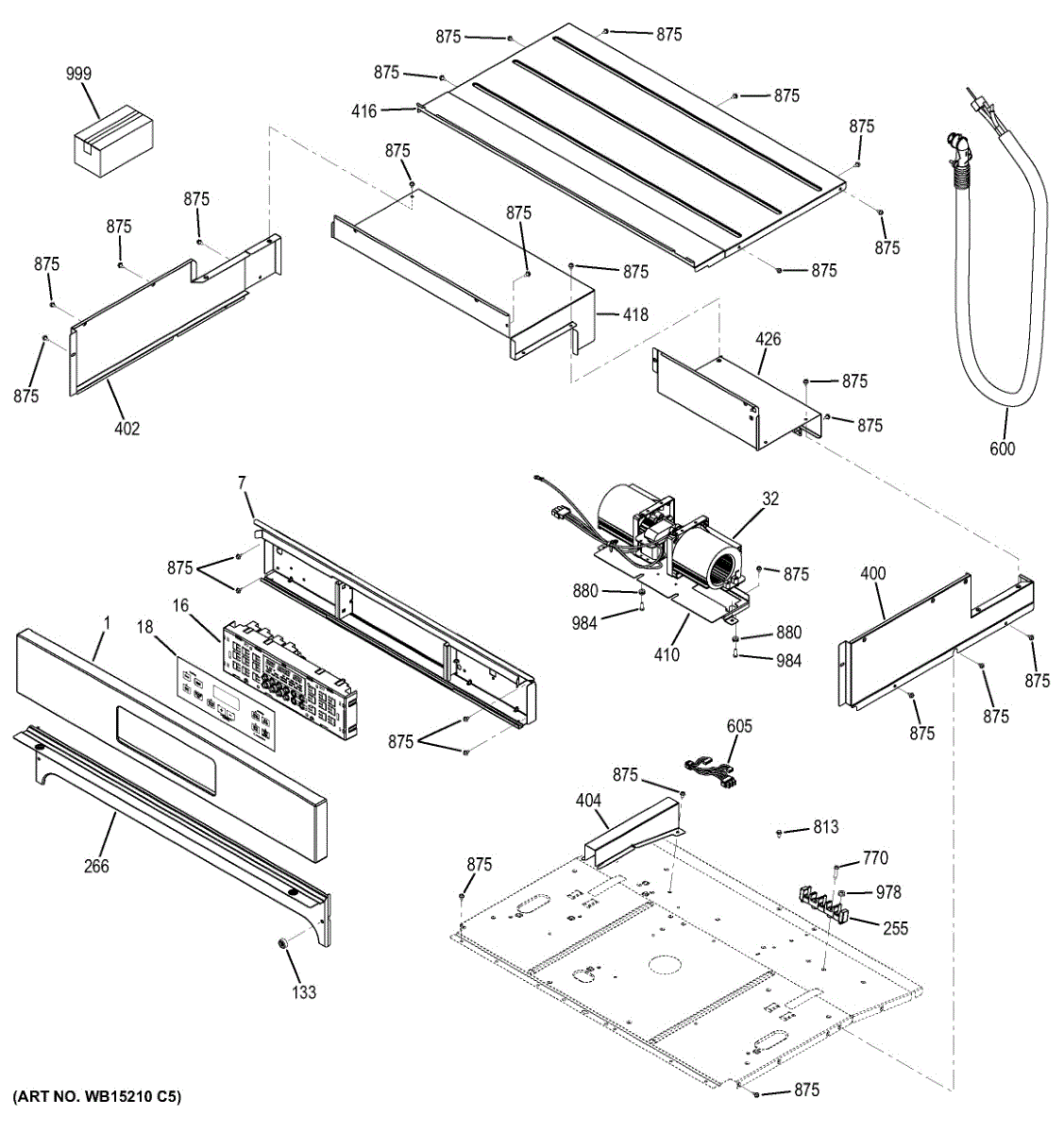

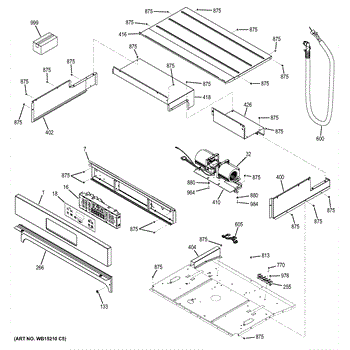

Parts for Ge JT1000DF1BB: Control Panel Parts

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cooling fan circulates air through the oven's control compartment and vent path to keep electronics and surrounding surfaces at safe temperatures during and after cooking. Replacing a failing fan helps prevent overheating, shutdowns, and error messages. What it does:

• Draws cooling air across the control area and out the vent to manage internal temperatures
• Protects control boards, wiring, and trim from heat buildup
• Typically runs during use and continues after the oven is turned off to remove residual heat
• Common symptoms of failure: fan not running, slow or intermittent operation, loud squealing/grinding, control panel area becoming excessively hot, or cooling-fan-related error codes/shutdowns

• 1 cooling fan

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access location varies by model (often behind the rear cover or upper panel)
• Note wire positions and fan rotation/airflow direction; transfer any mounting brackets or seals from the original part if required
• After installation, ensure the fan spins freely and verify airflow at the vent during operation

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified
