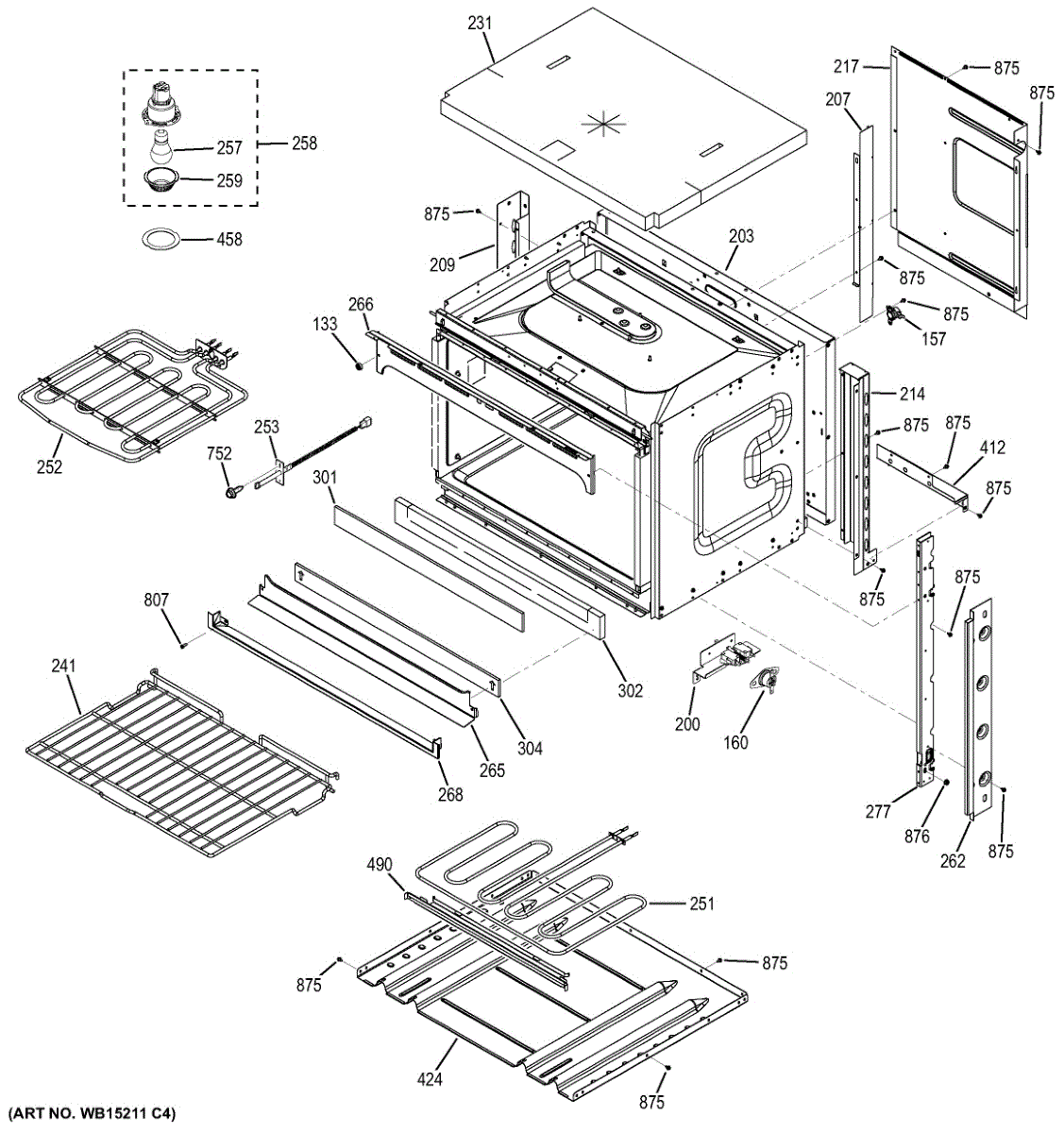

Parts for Ge JT1000DF1BB: Body Parts

This high limit switch is the temperature safety cut-out for your appliance. It monitors heat and opens the circuit if temperatures rise too high—helping protect components and prevent shutdowns caused by overheating.

• Monitors temperature at a critical location and interrupts power if limits are exceeded
• Helps protect internal components from heat damage
• Can help address: unit won't power on, shuts off during use, or runs without heating
• Replace if it remains open (no continuity) when cool or shows visible damage

• Disconnect power at the breaker before servicing; never work on a live appliance
• If servicing a microwave, be aware the high-voltage capacitor can retain a dangerous charge
• Note wire positions and transfer leads one at a time; mount the switch securely in the original location
• Do not bypass a safety switch; also correct any airflow/ventilation issues that may have caused overheating

Restore safe, reliable heating with this bimetal limit switch. It senses excessive temperature inside your range or cooktop and opens the circuit to prevent overheating, then automatically resets once the area cools to a safe level.

• Monitors temperature and interrupts power when a preset limit is reached
• Automatically resets after cooling to resume normal operation
• Helps protect heating components, wiring, and controls from heat damage
• Common signs of failure: little or no heat, intermittent cycling, or overheating; fails continuity testing

• Disconnect power and allow the appliance to cool completely before servicing
• Access the switch location; note wire positions and transfer them one at a time to the new switch
• Mount the new switch in the same orientation; ensure proper thermal contact as designed
• Inspect connectors for heat damage, replace if needed, then reassemble and test operation

This air center divider is the interior air baffle that directs airflow inside the refrigerator compartment for more even temperature control and circulation. It replaces a cracked, missing, or damaged center air divider to restore normal airflow paths. What it does:

• Guides cooled air through the refrigerator compartment to help maintain even temperatures
• Prevents air leaks and improper circulation caused by broken or warped dividers
• Helps reduce warm spots and uneven cooling inside the fresh-food section
• Restores proper airflow after impact damage or plastic fatigue

• One air center divider

• Disconnect power to the appliance before starting any work
• Remove shelves and related trim to access the center air baffle; retain all fasteners
• Handle plastic tabs/clips gently to avoid breakage during removal and installation

This bake element replaces the lower heating element in electric ovens to restore even baking and broiling performance. It heats the oven cavity so food cooks evenly and maintains set temperatures during use. What it does:

• Heats the lower oven cavity to provide consistent baking and roasting
• Restores proper browning and cooking times when the original element fails
• Commonly linked to symptoms like no heat from the lower oven, uneven cooking, or visible break/damage to the element
• Works as the primary radiant heat source for standard bake cycles

• One bake (lower oven) heating element

• Disconnect power at the breaker or unplug the range before servicing
• Handle terminals carefully; avoid bending or stressing the element during installation
• Tighten mounting screws securely and verify proper terminal connection for safe operation

This broil element is the oven's upper heating element that delivers intense top heat for broiling and finishing dishes. Replacing a failed element restores reliable broil performance and consistent, even top browning.

• Provides direct top heat during Broil to sear and brown foods evenly
• Common signs of failure: broiler won't heat or the element doesn't glow
• Uneven top browning or longer-than-normal broil times
• Visible blisters, cracks, or breaks; in some cases, selecting Broil may trip the breaker

• Disconnect power at the breaker and allow the oven to cool completely
• Remove mounting screws from inside the oven and gently pull the element forward
• Transfer the two wires to the new element one at a time; do not let wires retract into the cavity
• Reinstall screws, ensure the element is centered and clear of the liner, restore power, and test

The Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or extended high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to maintain the set oven temperature
• Fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven bulb lens covers and protects the interior light bulb while letting you clearly see food as it cooks. Replace a cracked or missing lens to restore safe, even illumination inside the oven cavity.

• Covers the oven light bulb and diffuses light for better visibility
• Shields the bulb from grease, splatter, and moisture
• Helps keep the bulb securely enclosed
• Common signs it's needed: lens is cracked, missing, discolored, or won't stay in place

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely
• Wear gloves to protect hands from sharp edges and hot surfaces
• Remove the existing lens by releasing the retainer or turning it, per your model's design; retain any clip or gasket for reuse
• Seat the new lens fully and restore power to test the light

This hidden-bake insulation panel fits under the oven floor to help control heat transfer and protect surrounding cabinetry. It restores proper oven cavity insulation for safer operation and more consistent cooking results. What it does:

• Replaces the insulation under the oven floor used with hidden-bake elements
• Reduces heat transfer to the oven cabinet and adjacent cabinetry
• Helps maintain more even oven temperatures for baking and roasting
• Reduces risk of external surface overheating and related odors

• One hidden-bake oven insulation panel

• Disconnect power to the oven before starting any work to avoid shock or injury
• Access typically requires removing the oven bottom or storage drawer—follow your model's service instructions
• Handle insulation carefully to avoid tearing; wear gloves and a dust mask if insulation is dusty

This is the lower oven insulation trim that helps seal and insulate the oven cavity, improving temperature stability and reducing heat loss. It restores the proper fit of the oven's bottom insulation assembly for safer, more efficient operation. What it does:

• Seals the gap between the oven floor and cabinet to help retain heat during baking and broiling
• Helps reduce heat transfer to surrounding cabinetry, lowering the chance of exterior heat-related issues
• Prevents drafts and debris from collecting under the oven cavity
• Addresses common symptoms like uneven cooking, excessive exterior heat, or visible gaps at the oven bottom

• One lower oven insulation bottom trim piece

• Installation requires access to the oven cavity; disconnect power and allow the oven to cool before starting
• Handle insulation pieces with care; wear gloves and a dust mask if insulation fibers are exposed
• Reinstall any removed screws or clips per OEM diagrams and ensure a snug fit to ensure proper sealing

This bottom air duct cover directs cold-air flow inside the refrigerator to help maintain consistent temperatures and protect internal components. It replaces a cracked or missing duct cover to restore proper airflow routing. What it does

• Channels refrigerated air through the lower cabinet to support even cooling
• Protects evaporator/fan pathways from debris and accidental contact
• Helps reduce localized warm spots and uneven food cooling
• Prevents rattling or vibration caused by a damaged or loose duct cover

• One bottom air duct cover

• Disconnect power to the appliance before starting any repair
• Remove shelves, drawers and any trim blocking access to the duct area
• Handle plastic parts gently to avoid cracking; secure with original clips or screws

This hidden bake cover replaces the metal shield that protects and conceals the oven's hidden bake element, helping keep the element clean and directing heat for consistent cooking performance. What it does

• Shields the hidden bake element from spills and debris to reduce cleaning and potential damage.
• Helps direct heat from the hidden bake element for more even oven temperatures.
• Replaces a cracked, warped, or missing cover that can expose the element or allow food to fall onto it.
• Compatible with common symptom: visible damage or a missing cover after service or heavy use.

• Disconnect power to the oven at the breaker before starting any work.
• Allow the oven to cool completely; the element and surrounding parts can retain heat.
• Remove mounting screws or clips used by your model and lift the old cover out; handle carefully to avoid bending.
• The cover seats flat against the element support and reinstall fasteners securely.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This black-finished screw secures appliance panels, brackets, or trim in place. Replacing a missing or damaged fastener restores a solid fit and helps prevent rattling, gaps, and loose components.

• Fastens panels, trim, brackets, or covers on the appliance
• Helps maintain proper alignment and reduces vibration noise
• Common replacement when the original is lost, stripped, rusted, or broken
• Symptoms include loose or wobbly parts, rattling, or visible gaps

• Disconnect power; for gas appliances, also shut off the gas supply
• Allow hot surfaces to cool before servicing
• Start threads by hand to avoid cross-threading, then tighten snugly—do not overtighten
• Reuse any original washers or spacers in the same order and location

Black. 8-18 AB HXW 3/8
