Parts for Ge JT3500SF1SS: Control Panel Parts

Parts for Ge JT3500SF1SS: Control Panel Parts

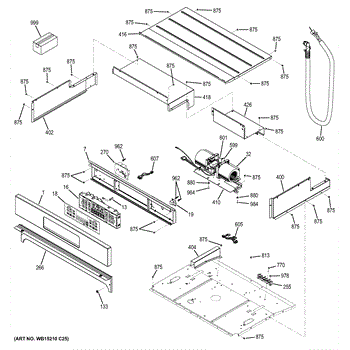

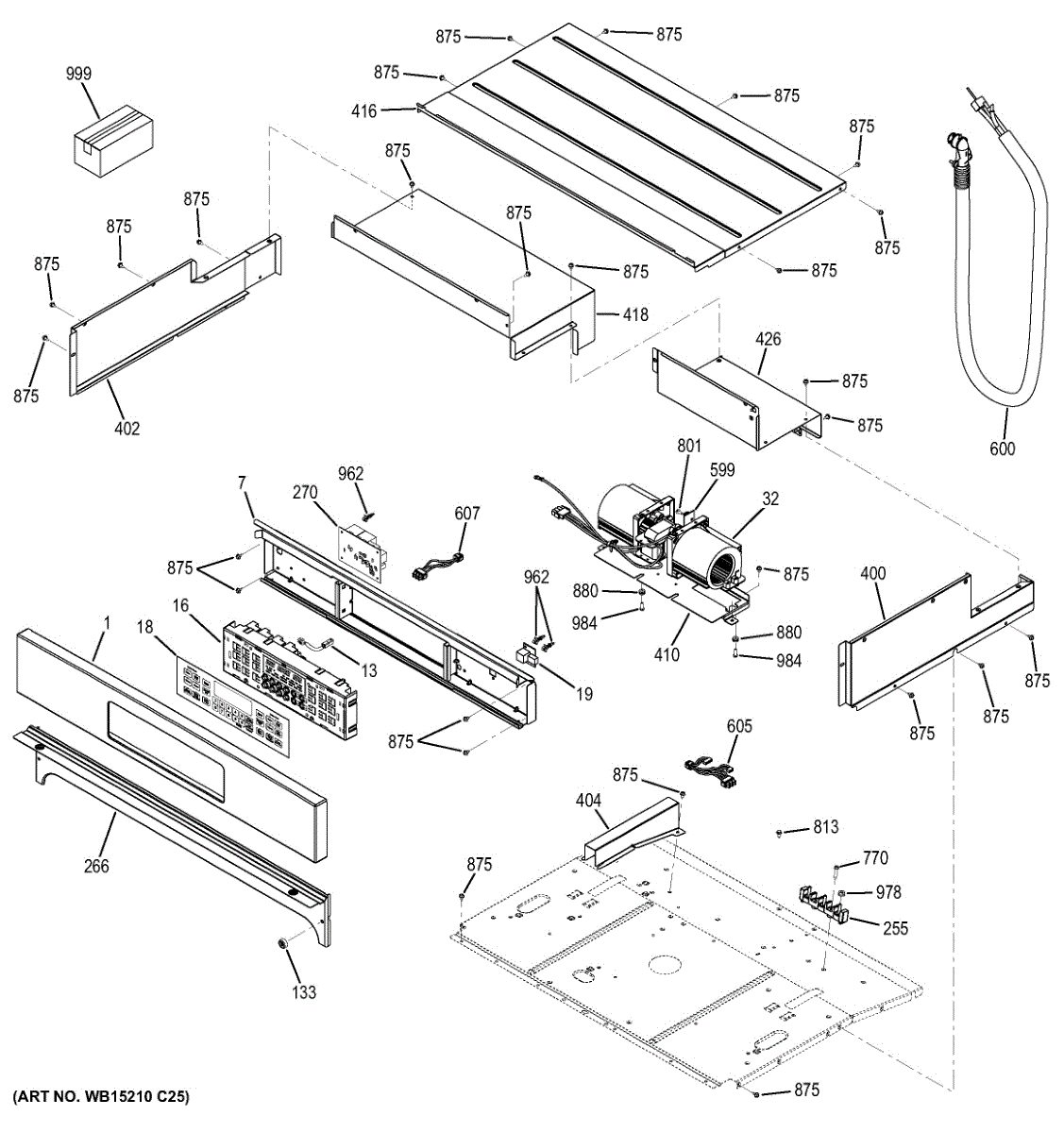

Location on Diagram
Part Description
Price & Availability
1
By: Ge
Part Number: WB07T10737

Stainless steel control panel for wall ovens. Replaces scratched, dented, or discolored panels. Restores the original appearance of your appliance.

More
$80.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
7
By: Ge
Part Number: WB37T10031
$39.72

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
13
By: Ge
Part Number: WB18X30704

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

More
$7.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
16
Product photo
By: Ge
Part Number: WB27X25346

Dead display or unresponsive buttons? This wall oven electronic control board restores full function. Moderate DIY repair that fixes erratic controls.

More
$223.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
18
Product photo
By: Ge
Part Number: WB27T11465

Decorative overlay panel that surrounds your wall oven controls and display. Replace if faded, peeling, cracked, or worn from repeated use over time.

More
$28.41

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
19
By: Ge
Part Number: WB27X20933
$30.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
32
Best Seller
Product photo
5.0 (4)
By: Ge
Part Number: WB26T10066

This cooling fan circulates air through the oven's control compartment and vent path to keep electronics and surrounding surfaces at safe temperatures during and after cooking. Replacing a failing fan helps prevent overheating, shutdowns, and error messages. What it does:

  • Draws cooling air across the control area and out the vent to manage internal temperatures
  • Protects control boards, wiring, and trim from heat buildup
  • Typically runs during use and continues after the oven is turned off to remove residual heat
  • Common symptoms of failure: fan not running, slow or intermittent operation, loud squealing/grinding, control panel area becoming excessively hot, or cooling-fan-related error codes/shutdowns
What's included:
  • 1 cooling fan
Install notes:
  • Disconnect power at the breaker and allow the appliance to cool completely before servicing
  • Access location varies by model (often behind the rear cover or upper panel)
  • Note wire positions and fan rotation/airflow direction; transfer any mounting brackets or seals from the original part if required
  • After installation, ensure the fan spins freely and verify airflow at the vent during operation

More
$109.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
255
Product photo
By: Ge
Part Number: WB17K10001

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

More
$9.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
266
By: Ge
Part Number: WB07T10805

Black upper vent trim for wall ovens. Covers the ventilation opening on the control panel area. Replace if cracked, faded, or missing for a clean look.

More
$29.35

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
270
Product photo
By: Ge
Part Number: WB27X25594

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture or accidental damage could potentially disrupt electrical connections.

Symptoms of a bad board relay include:

  • Inability to ignite burners or power oven systems
  • Removal of electricity to relevant relays requires diagnostics
  • Loose, arcing or burned connections necessitating replacement

This OEM GE part is also compatible with Hotpoint, RCA and select Kenmore ranges.

More
$80.42

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
400
By: Ge
Part Number: WB34T10164
$25.69

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
402
By: Ge
Part Number: WB44T10126
$20.03

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
404
By: Ge
Part Number: WB34T10150

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

More
$10.76

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
410
By: Ge
Part Number: WB37T10026

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

More
$33.43

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
416
By: Ge
Part Number: WB34X28390
$32.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
418
By: Ge
Part Number: WB34X32773
$48.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
426
By: Ge
Part Number: WB35T10273
$24.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
599
Best Seller
Product photo
4.6 (5)
By: Ge
Part Number: WB27T11463

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

  • Inconsistent or improper temperature control not maintaining set oven temperatures
  • Issues with selected convection bake or broil modes not activating properly
  • Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

More
$63.50

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
600
By: Ge
Part Number: WB18T10573

Conduit wire assembly for wall ovens. Protects and routes electrical wiring within the oven cavity. Replace if damaged, frayed, or missing.

More
$68.27

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
600
Product photo
By: Ge
Part Number: WB18T10580

This 6 ft conduit provides a protective, flexible channel for routing wiring between components, helping keep wiring organized and shielded from damage. It's an optional replacement for appliances that require extended wiring protection. What it does

  • Protects and organizes electrical wiring by enclosing wires in a flexible conduit
  • Helps reduce wear from abrasion, vibration, or contact with sharp edges
  • Useful when original wiring routing needs extension or added protection
  • Can reduce the chance of exposed wiring that may lead to shorts or intermittent power issues
What's included
  • One 6 ft conduit
Install notes
  • Intended for use where an appliance's wiring routing requires a longer protective conduit;
  • Use appropriate tools and secure conduit ends to strain reliefs or fittings as originally installed
  • Disconnect power to the appliance before attempting any wiring work

More
$206.52

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
605
By: Ge
Part Number: WB18T10582
$131.93

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
607
By: Ge
Part Number: WB18X20178
$42.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
770
Product photo
By: Ge
Part Number: WB1K5072

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

More
$9.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
813
Product photo
By: Ge
Part Number: WB1X1261

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

More
$9.88

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
875
Product photo
4.5 (6)
By: Ge
Part Number: WH2X930

Black. 8-18 AB HXW 3/8

More
$11.74

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
880
By: Ge
Part Number: WB01T10128

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

More
$4.86

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
978
Product photo
By: Ge
Part Number: WB1X1259

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

  • Secures mounting studs, brackets, or components in place
  • Prevents parts from shifting, vibrating, or coming loose during operation
  • Replaces a missing, damaged, or corroded nut to restore reliable fastening
What's included
  • One hex nut
Install notes
  • Disconnect power and gas before starting work
  • Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
  • Do not overtighten; snug until secure to avoid damaging studs or threads
  • Use replacement only where the OEM hex nut is specified

More
$9.88

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
