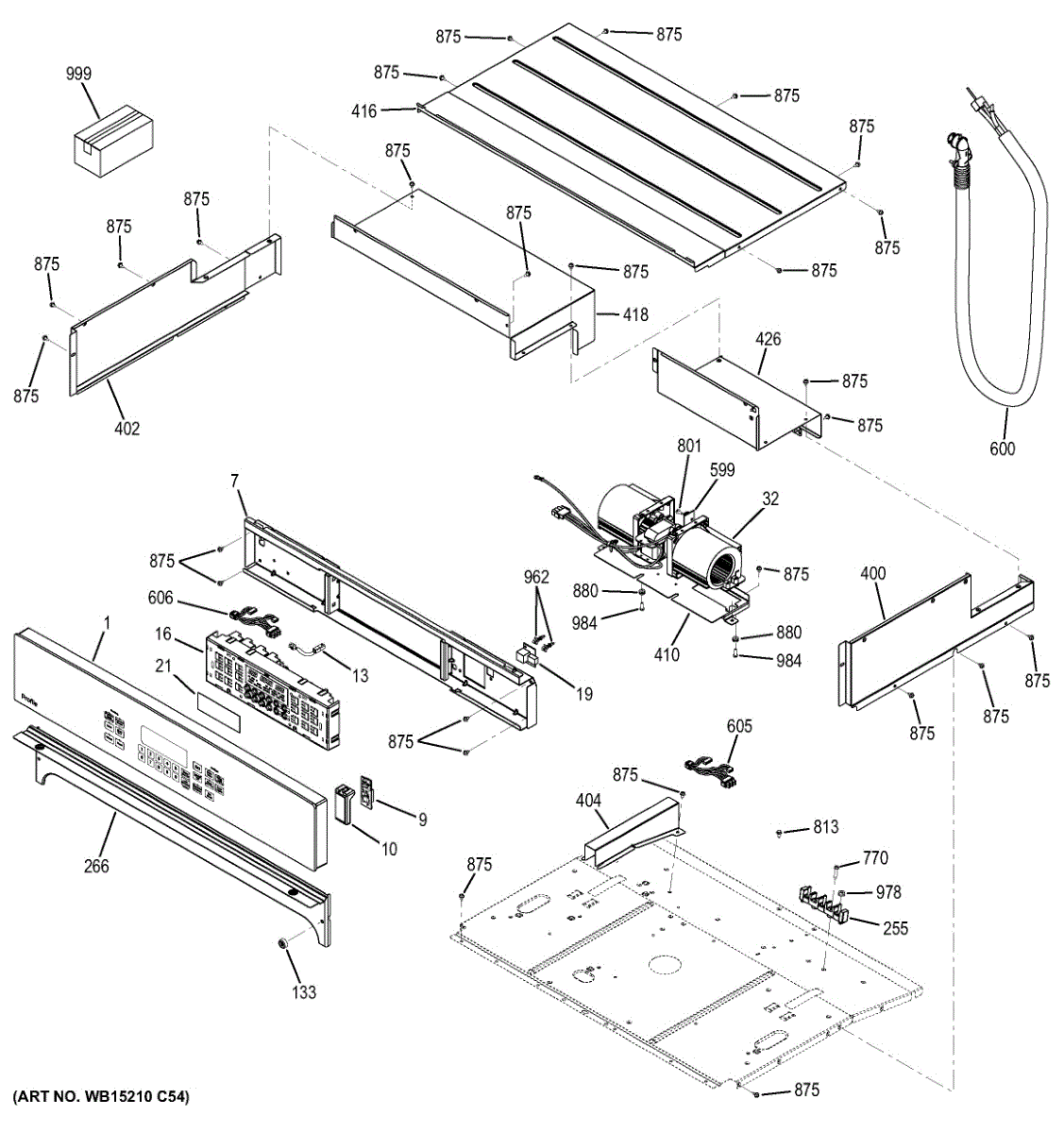

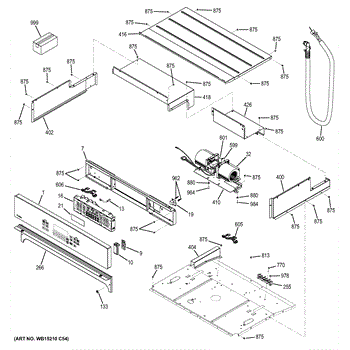

Parts for Ge PK7000DF4WW: Control Panel Parts

This Wi-Fi module kit replaces the appliance's wireless communications board to restore smart connectivity and app features. Use it when your appliance can't join your home network or when remote functions stop responding. What it does

• Provides the wireless interface so the appliance can connect to a home Wi-Fi network and communicate with the manufacturer app or cloud services
• Restores remote monitoring and control features that rely on a network connection
• Addresses symptoms such as inability to connect to Wi-Fi, lost smart features, or communication-related error messages
• Works with the appliance's control system to enable firmware updates and remote diagnostics when supported

• One Wi-Fi module kit

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Follow the OEM service instructions for removal and installation; proper seating and connector alignment are required
• After installation, reconnect to your home network and complete any app/registration steps per the manufacturer's setup guide

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

This electronic control board (T012) manages oven/range functions and restores user interface and heating control when the original board fails. Replacing a faulty control board helps return accurate cycle selection and consistent heating performance. What it does:

• Receives input from the touchpad/knobs and controls oven/burner heating elements
• Regulates temperature cycles and timing for bake, broil, and self-clean functions
• Can resolve symptoms like no display, unresponsive controls, or heating that won't start
• Works as the main command module for electrical signals to the appliance's components

• One electronic control board (T012) as shown

• Disconnect power to the appliance at the breaker before starting any work
• Handle the circuit board by the edges and avoid static discharge; use anti-static precautions if available
• Verify wiring connections and mounting before reapplying power; replace only with the correct PN

This filter clock display is the replacement display assembly that shows the refrigerator clock and filter status indicators, helping you know when a water filter needs changing and restoring normal display function. What it does:

• Shows the refrigerator clock and elapsed time indicator for the water filter
• Displays filter status prompts so you can tell when a replacement is due
• Restores a blank, faded, or unresponsive filter/clock display
• Helps reset or update the filter life indicator when paired with proper reset steps

• Disconnect power to the appliance before beginning any work to avoid shock or injury.
• Handle the display assembly carefully to avoid scratching or damaging the lens or contacts.
• Small tools may be required to remove the control panel; keep track of screws and retainers.
• Follow model-specific disassembly and reassembly instructions.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

This conduit wire assembly routes power and signals between oven/range components, restoring proper electrical connections for heating and control circuits. It provides a pre-formed, insulated harness that replaces damaged or worn wiring for reliable operation. What it does:

• Carries electrical power and control signals between terminals, control board, and heating elements.
• Replaces damaged, frayed, or burnt wiring that can cause intermittent operation.
• Commonly used when burners, oven elements, or controls fail to get power or work inconsistently.
• Helps prevent shorts by restoring proper insulation and secure connector fit.

• One conduit wire assembly as shown.

• Disconnect all power at the breaker or appliance cord before servicing.
• Verify the harness routing and connector orientation before disconnecting old wiring.
• Inspect terminal connectors and mounting points; replace if corroded or damaged.

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This silicon controlled rectifier (SCR) switches and regulates power to heating or motor circuits, helping the appliance control temperature and run cycles reliably. It's a direct-fit electronic switching component used in a variety of control systems. What it does:

• Acts as an electronic switch to regulate AC power to heating elements or motors
• Helps control temperature output and maintain consistent cycle performance
• Can prevent unwanted continuous current flow when functioning properly
• Commonly replaced when ovens, ranges, or dryers fail to heat or cycle correctly

• One silicon controlled rectifier (SCR) as shown

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Handle the SCR by its body; avoid touching terminals and static-sensitive areas
• Verify proper orientation and secure mounting; follow OEM wiring and torque practices

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Black. 8-18 AB HXW 3/8

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
