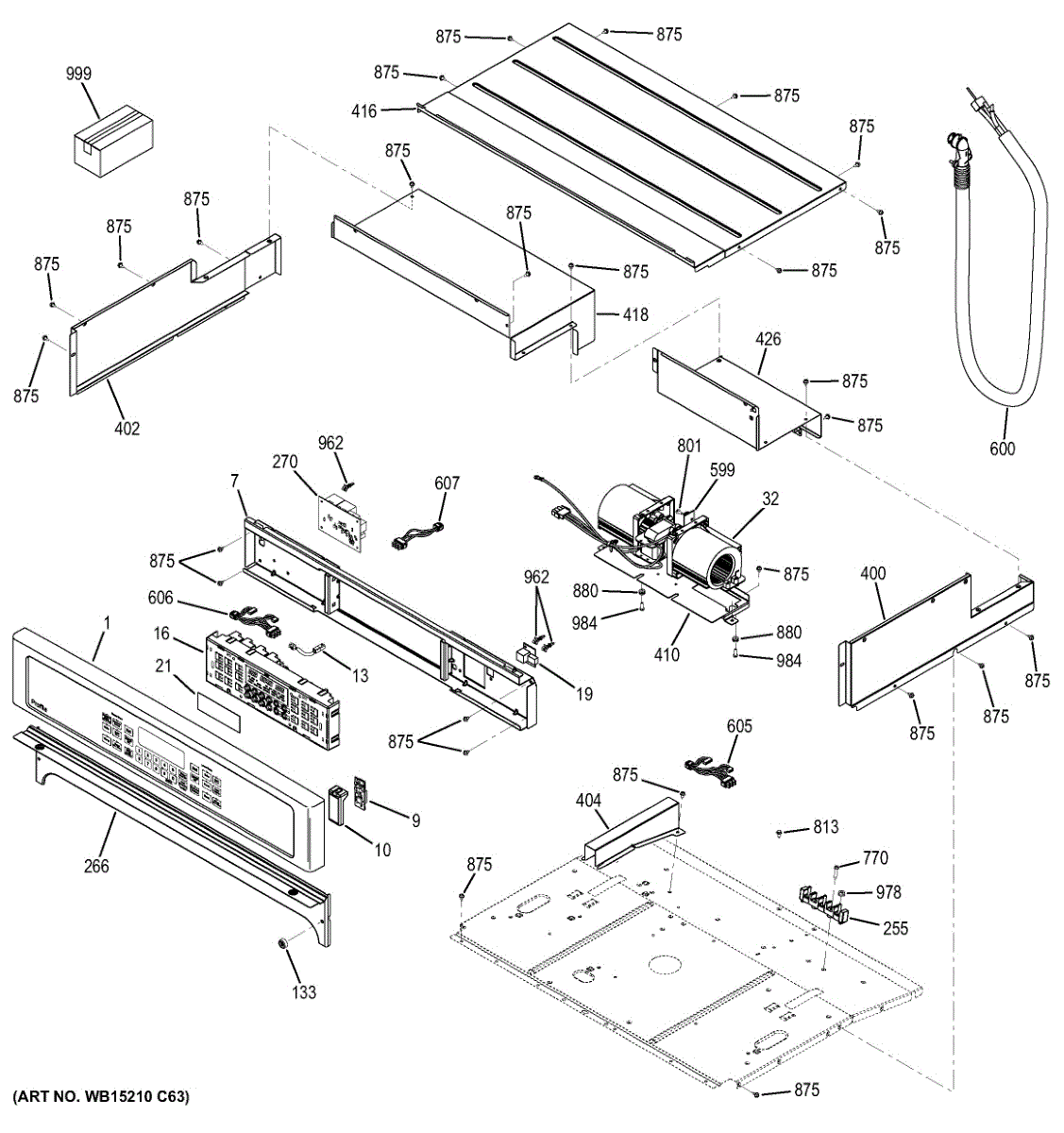

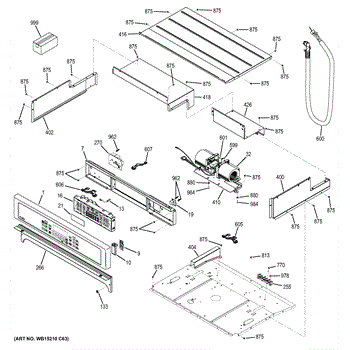

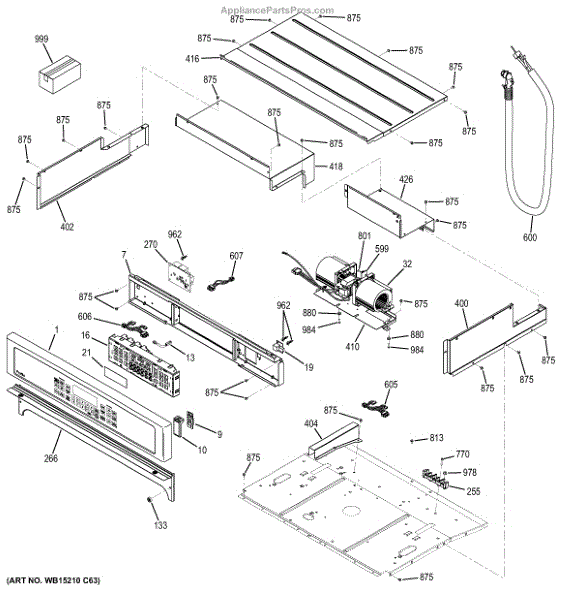

Parts for Ge PK7500EJ1ES: Control Panel Parts

Can't control your range from your phone or app? This Wi-Fi module restores smart connectivity when remote features stop working or won't connect.

This housing transceiver is the outer mounting enclosure that secures and protects the appliance's transceiver assembly, helping maintain reliable signal and control communication. It replaces cracked or broken housings to restore proper fit and protection. What it does:

• Holds and protects the wireless/transceiver module and related wiring from physical damage
• Helps maintain proper alignment and connection to the appliance control assembly
• Common symptom: damaged or cracked housing that exposes electronics or prevents secure mounting
• Common symptom: intermittent signal or communication issues when the transceiver is loose or misaligned

• One housing transceiver

• Disconnect power to the appliance before beginning any repair to avoid shock or component damage
• Handle the transceiver and circuit connections carefully to avoid bending pins or ESD damage
• Installation typically requires removing the control console or access panel and a few fasteners; keep track of screws and gaskets

If your range or oven has a circuit not working or intermittent function, this electrical jumper wire bridges terminals to restore proper continuity.

Fix unresponsive controls, incorrect temperatures, or display errors. This electronic control board manages oven functions, timers, and cook cycles.

This filter clock display is the replacement display assembly that shows the refrigerator clock and filter status indicators, helping you know when a water filter needs changing and restoring normal display function. What it does:

• Shows the refrigerator clock and elapsed time indicator for the water filter
• Displays filter status prompts so you can tell when a replacement is due
• Restores a blank, faded, or unresponsive filter/clock display
• Helps reset or update the filter life indicator when paired with proper reset steps

• Disconnect power to the appliance before beginning any work to avoid shock or injury.
• Handle the display assembly carefully to avoid scratching or damaging the lens or contacts.
• Small tools may be required to remove the control panel; keep track of screws and retainers.
• Follow model-specific disassembly and reassembly instructions.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

The GE Board Relay Daughter is an OEM part for GE ranges. It enables relay-based electrical control functions for safe operation.

Causes of a bad board relay can include failures in the circuit components over many power cycles. Moisture or accidental damage could potentially disrupt electrical connections.

Symptoms of a bad board relay include:

• Inability to ignite burners or power oven systems
• Removal of electricity to relevant relays requires diagnostics
• Loose, arcing or burned connections necessitating replacement

This OEM GE part is also compatible with Hotpoint, RCA and select Kenmore ranges.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

Conduit wire assembly for wall ovens. Protects and routes electrical wiring within the oven cavity. Replace if damaged, frayed, or missing.

Fix oven door latch issues with this wire harness. Resolves electrical connection problems in the door lock assembly. Moderate DIY repair in 30-45 minutes.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black. 8-18 AB HXW 3/8

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

Secures and isolates the power control module from the range chassis. Replace if cracked, broken, or missing to maintain proper spacing and stability.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.
