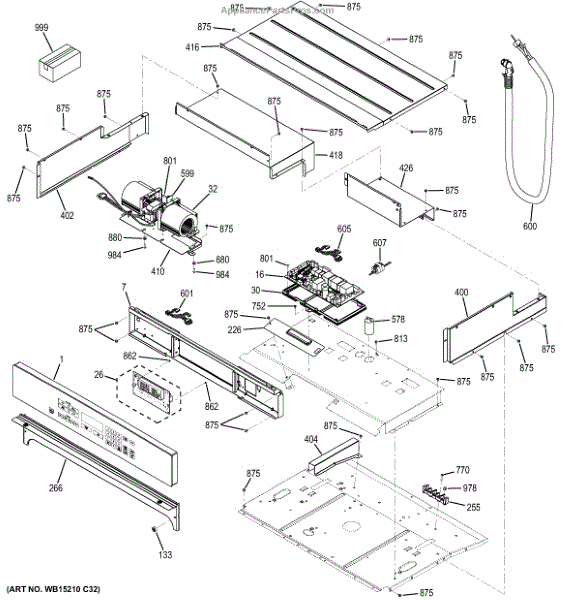

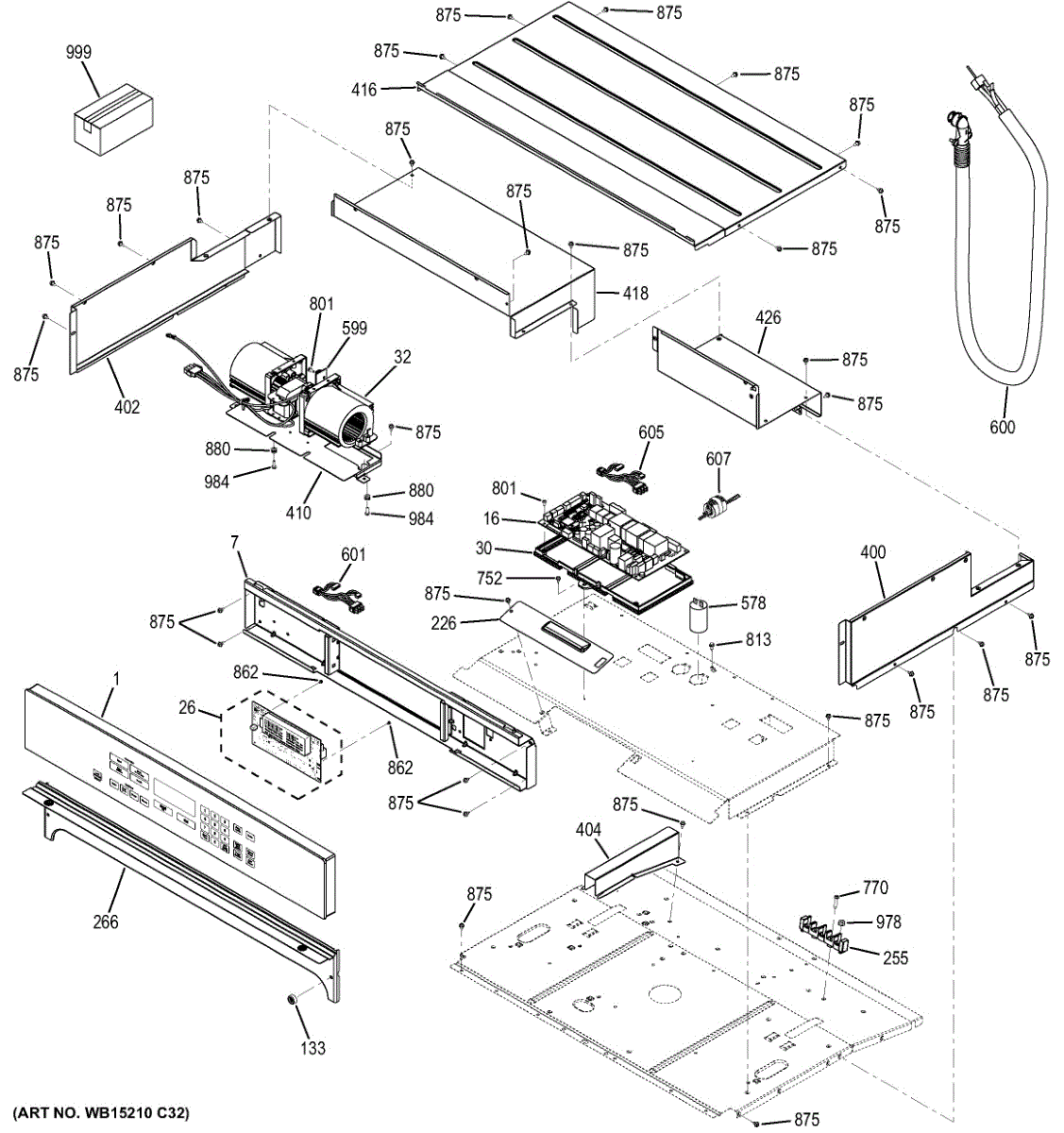

Parts for Ge PT7050DF3WW: Control Panel Parts

Designed for use on an range, this is a control panel glass assembly. The purpose of the control panel is to control all of the functions of the oven. When a button is pressed, the control panel causes that selection to initiate. These controls include the bake button, broiler button, timer, and more.If the buttons are pressed, but nothing seems to work on the oven, it is possible that the control panel assembly has gone bad. This could include a single button not working or all of them not working. For example, the light may not come on or the time may not work. The oven may not turn on. Unplug the unit prior to attempting to replace this part.This particular control panel glass assembly is compatible with electric ranges that have been manufactured by the GE brand. It is sourced from the manufacturer and is sold individually.

The Machine Control Board is an OEM replacement part for GE ovens. It is responsible for regulating and coordinating all of the oven's electronic components and ensuring they work correctly. This includes circuits for the bake and broil heating elements, temperature sensors, display panel, control buttons, timers, and more.

Symptoms of a faulty machine control board include:

• Unresponsive controls or buttons
• Error codes displayed on the control panel
• Inconsistent heating or temperature regulation

A bad machine control board can occur due to electrical malfunctions, power surges, or component failure. If you notice issues such as unresponsive controls, error codes, or an inability to heat or maintain proper temperature, it may be time to replace the old or damaged machine control board with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


Control board and overlay assembly with white LED restores the range's front control functions and illuminated display. Replaces a failed or unresponsive electronic control so oven timers, clock and burner controls respond normally. What it does:

• Houses the electronic control circuitry that manages oven bake/ broil and surface burner functions.
• Provides the front membrane/overlay and white LED readout for the clock, timer and user controls.
• Commonly replaces assemblies that show a blank or dim display, intermittent or unresponsive touch/button input, or incorrect timer/clock behavior.
• Restores visible status feedback and user input when the original control assembly has failed.

• Disconnect power to the appliance before attempting service to avoid shock or injury.
• Handle the circuit board as an electrostatic-sensitive device; avoid touching contacts and use proper grounding.
• Ensure all wire harness connectors are fully seated and the overlay is aligned before securing the assembly.
• Test the unit's functions (display, buttons, timers) after reconnecting power and before final reassembly.

The Fan Blower is an OEM part for GE ranges and wall ovens. This part helps to circulate air within the oven cavity. The fan blower ensures that heat is evenly distributed during cooking, contributing to consistent cooking results, and prevents the electronic components from overheating, which could lead to malfunctions or reduced lifespan of the appliance.

Causes of damage to the Fan Blower can include accumulation of debris and grease, which can obstruct the fan and strain the motor, and mechanical wear over time that affects the fan's efficiency.

Symptoms of a bad Fan Blower in a range include:

• The oven not cooking evenly
• Overheating of the range's electronic control panel
• Unusual noises, such as rattling or buzzing

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This conduit wire assembly routes power and signals between oven/range components, restoring proper electrical connections for heating and control circuits. It provides a pre-formed, insulated harness that replaces damaged or worn wiring for reliable operation. What it does:

• Carries electrical power and control signals between terminals, control board, and heating elements.
• Replaces damaged, frayed, or burnt wiring that can cause intermittent operation.
• Commonly used when burners, oven elements, or controls fail to get power or work inconsistently.
• Helps prevent shorts by restoring proper insulation and secure connector fit.

• One conduit wire assembly as shown.

• Disconnect all power at the breaker or appliance cord before servicing.
• Verify the harness routing and connector orientation before disconnecting old wiring.
• Inspect terminal connectors and mounting points; replace if corroded or damaged.

This flexible 6-foot conduit routes and protects power wiring for compatible appliances, providing a neat, durable path for electrical leads and helping prevent kinks or abrasion during installation and service. What it does:

• Shields and organizes the appliance power cord or wiring harness to reduce wear and chafing
• Provides a protected, flexible pathway when extra cable length is needed
• Helps maintain a clean installation and prevents sharp bends near terminals
• Commonly used as an optional accessory when relocating or extending factory wiring

• One 6 ft flexible conduit

• Suitable for use where manufacturer allows optional conduits; follow appliance wiring and grounding instructions
• Disconnect power before installing or routing wiring to avoid shock or damage
• Use appropriate connectors/clamps at both ends to secure conduit and prevent strain on wires

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
