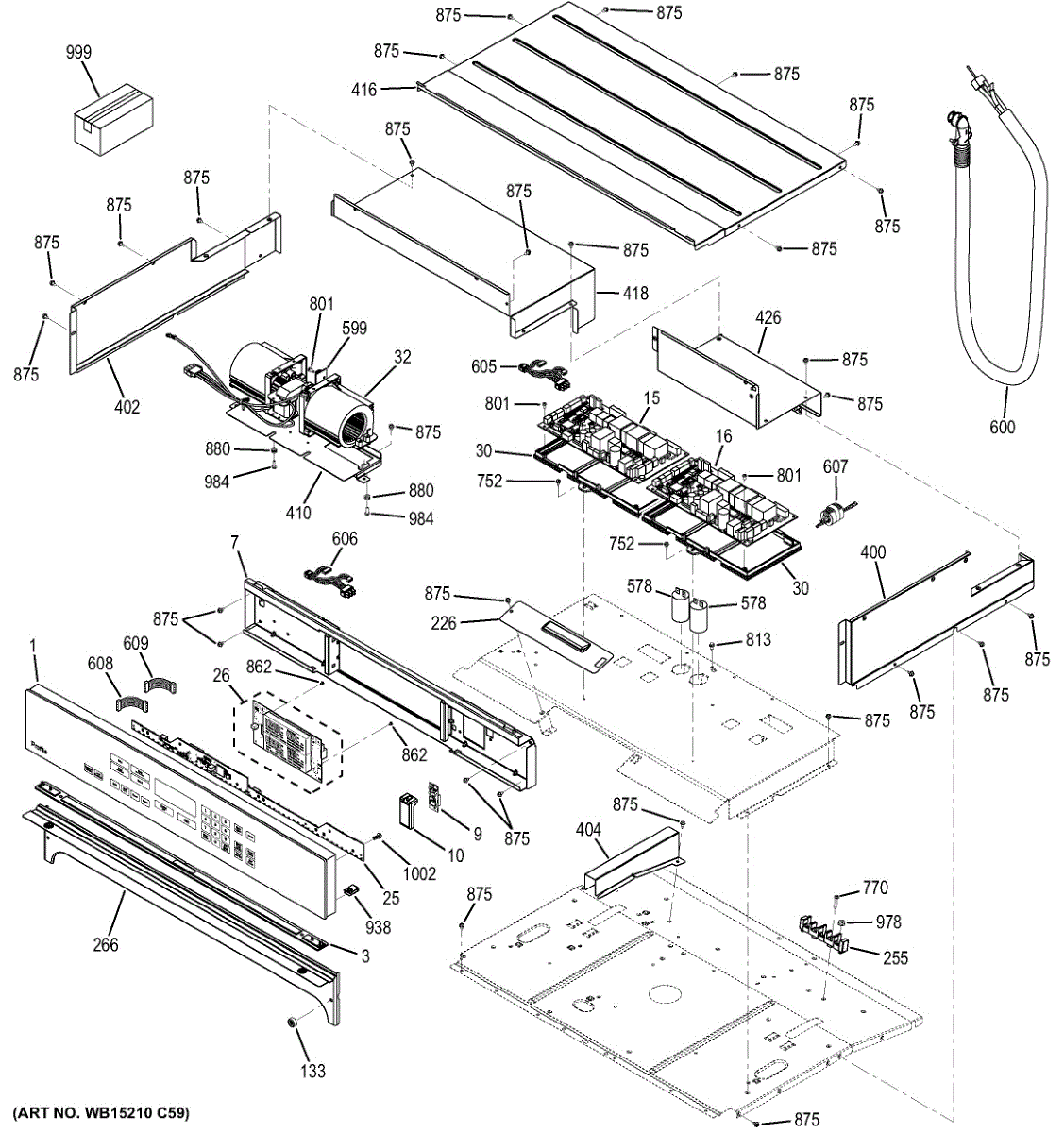

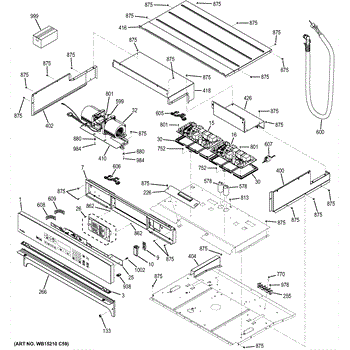

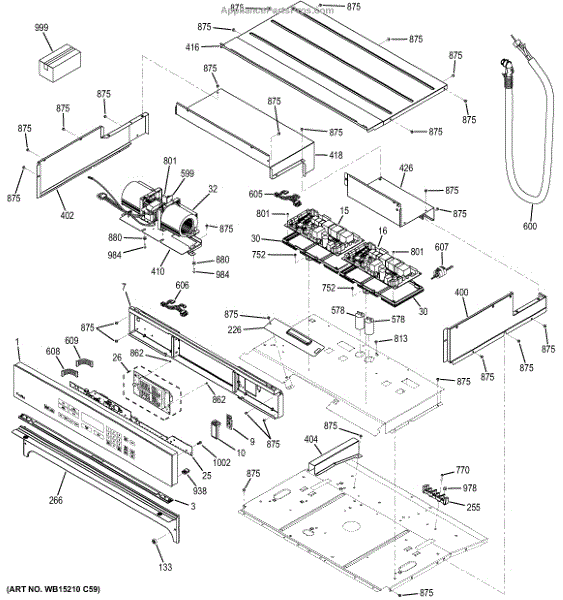

Parts for Ge PT9550DF5BB: Control Panel Parts

This control panel assembly provides the full console housing and user interface for your range, restoring button access and display visibility so oven functions can be selected and monitored reliably. What it does

• Replaces the front console and button/display assembly that houses the touchpad/buttons and display.
• Restores responsive oven controls when buttons or the display are unresponsive or intermittent.
• Helps resolve issues like blank or flickering display, non-working keypad, or missing control surface feedback.
• Matches the original finish and mounting points for a direct-fit replacement.

• One control panel assembly (black) as shown.

• Disconnect power to the appliance at the breaker before starting any repairs.
• Access typically requires removing the range backguard or console trim.
• Handle the display/touchpad area carefully to avoid damage to the overlay or connectors.
• If only the keypad overlay is damaged, verify that the full assembly is required before replacing.

Can't control your range from your phone or app? This Wi-Fi module restores smart connectivity when remote features stop working or won't connect.

Outer mounting enclosure that secures and protects the transceiver assembly in your range. Replace if cracked, broken, or damaged to restore proper fit.

Fix F34/F35 error codes and oven overheating issues with this control board. Moderately challenging repair requiring panel removal. Compatible with many models.

Fixes F32 error codes and oven control failures. This machine control board regulates temperature, timers, and safety features. Requires wall removal.

LED light board for wall ovens and ranges. Replace when interior lights flicker, dim, or fail to illuminate. Verify compatibility with your model number.

Fix an unresponsive control panel or oven that won't start with this control board and overlay assembly. Handles all oven functions and commands.

Plastic frame board for wall ovens. Replaces cracked, broken, or worn frame components. Essential structural part for proper oven assembly and support.

Fix F96 error code or loud fan noise in your wall oven with this cooling fan blower motor. Moderately difficult repair requiring oven removal.

Replace your range's door latch access cover if the oven door won't latch properly or the latch mechanism is exposed. Simple repair restores door function.

Fixes loose power connections and electrical arcing in ranges and ovens. This terminal block secures incoming wiring for safe, reliable operation.

Upper air vent channel for wall ovens. Directs airflow in the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

Upper fan mount bracket for wall ovens and ranges. Secures the cooling fan assembly in place. Replace if bracket is bent, broken, or missing.

Convection fan won't run or oven bakes unevenly? This wall oven fan motor circulates hot air for even cooking. Moderate DIY repair, 1-2 hours.

Conduit wire assembly for wall ovens. Protects and routes electrical wiring within the oven cavity. Replace if damaged, frayed, or missing.

Flexible 6 ft conduit protects and organizes electrical wiring between wall oven components. Replace if conduit is cracked, damaged, or missing.

Fix oven not heating, electrical failures, or control issues with this main wire harness. Connects key electrical components in electric wall ovens.

Oven display not responding or WiFi features not working? This wire harness connects the control display to the WiFi module, restoring communication.

Control panel lights not working? This LED jumper wire harness restores connections between your oven's control board and status indicator lights.

Replacement mounting screw for electric ranges, ovens, and wall ovens. Secures panels, brackets, and components. Replace if stripped, missing, or broken.

Replacement mounting screw for ranges and ovens. Secures panels, brackets, and internal components. Order when original screw is missing, stripped, or lost.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Rubber grommet for electric ovens and ranges. Seals and protects wiring or components passing through metal panels. Replace if cracked or missing.

Range burner clip secures burner components in place. Replace if bent, broken, or burners wobble. Verify fit with your model number before ordering.

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

Lubricant cleaner for range and oven control shafts, burner valves, and rack paddles. Dissolves residue and restores smooth operation when parts feel stiff.
