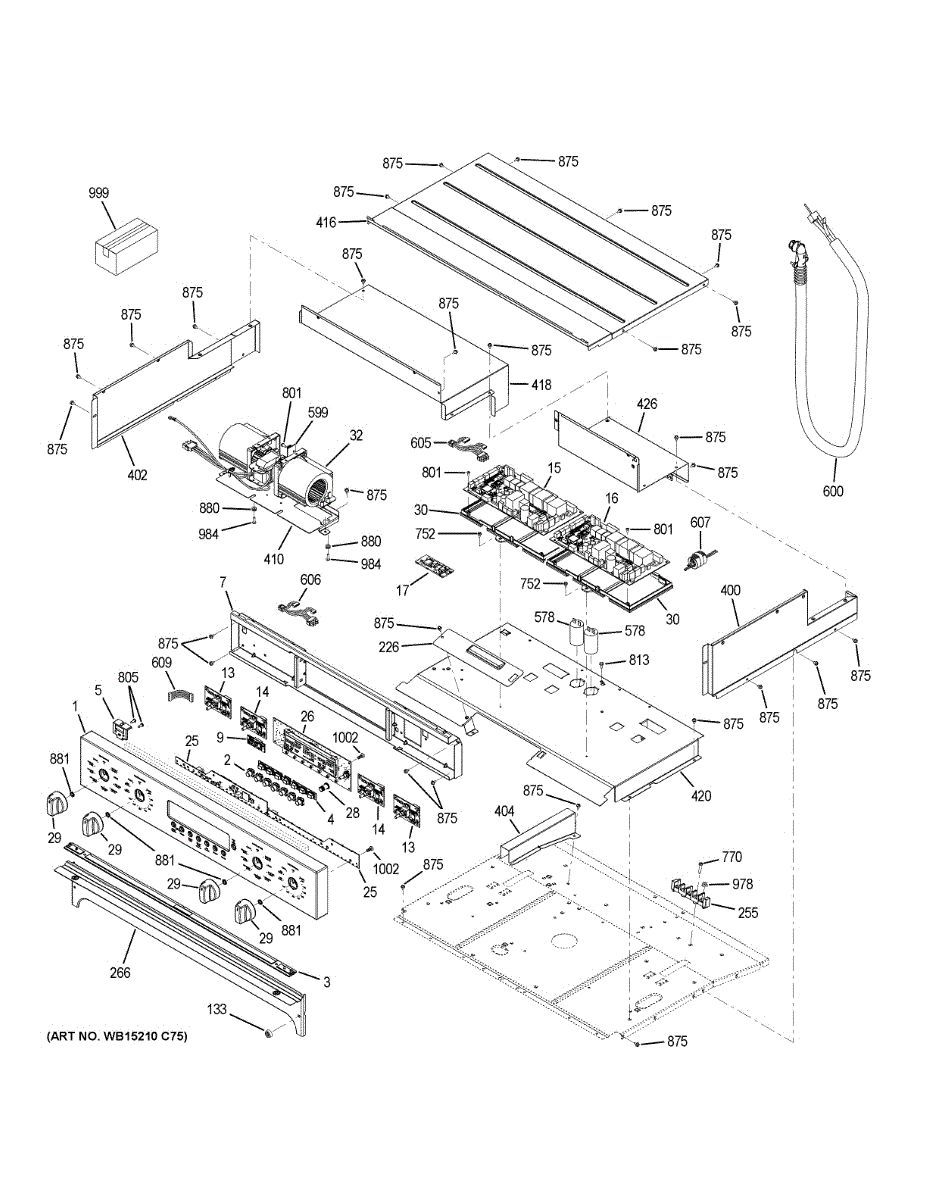

Parts for Ge ZET2PH1SS: Control Panel Parts

This control panel and frame assembly replaces the front user interface and surrounding trim on compatible ranges and ovens, restoring button/knob alignment and the appliance's finished appearance. It provides a factory-style mounting surface for controls. What it does

• Houses the control buttons, display area, and selector mounting points so the oven's controls operate securely.
• Restores a straight, stable surface when the original panel is dented, cracked, or warped.
• Helps ensure buttons and knobs align correctly with switches and electronic modules.
• Commonly used when the front trim is damaged or when replacing the control board requires a fresh mounting frame.

• One control panel and frame assembly as shown.

• Disconnect power to the appliance before starting — there are live-voltage connections behind the panel.
• Some models require removing the oven door or burner grates to access mounting screws; follow OEM instructions.
• Handle the assembly carefully to avoid scratching the finish; fasten securely to prevent vibration.

This button control panel is the user interface assembly that houses the oven/range selector buttons and overlays, restoring button response and user control. It helps return tactile button function and readable controls. What it does:

• Replaces a cracked, worn, or unresponsive front button/control panel to restore button actuation
• Provides the physical mounting and contact surfaces for the range/oven pushbuttons
• Can resolve issues with stuck, missing, or cosmetically damaged buttons or panel cover
• Works with the appliance's existing electronic switch/PCB

• High-level installation: disconnect power, remove oven/range front bezel or console trim, swap panel assembly, and reassemble
• Handle gently to avoid damaging button contacts or flex cables; align mounting tabs before tightening
• If the panel connects to a separate switch board or ribbon cable, note connector orientation and seating
• Always disconnect power before servicing to prevent shock or damage

This control panel support bracket secures the console/upper control assembly to the oven/range frame, keeping the control panel stable and aligned for reliable operation and user access. What it does:

• Supports and stabilizes the front control/console to prevent sagging or wobble
• Keeps control switches, buttons and display aligned for correct operation
• Reduces vibration and rattling noise from a loose console
• Helps maintain proper spacing so knobs and trim install correctly

• One control panel support bracket

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove backguard/console trim to access bracket; retain all fasteners for reassembly
• Use common hand tools (screwdrivers, nut drivers); avoid forcing plastic tabs
• Handle electronic components with care and avoid static discharge

This user interface selector knob replaces a worn, cracked, or missing control knob on the appliance control panel to restore reliable setting selection and tactile feedback. It's a direct-fit exterior control for the range/oven control panel. What it does:

• Rotates to select heat, timer, or function settings from the appliance control board.
• Restores a secure grip and clear position feedback when original knob is loose, stripped, or broken.
• Prevents accidental setting changes by providing a firm detent and stable interface.
• Matches original fit and operation for smooth, repeatable control input.

• One control panel user interface selector knob (single knob)

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Usually installs by pulling off the old knob and pushing the replacement onto the control shaft; use a gentle, straight pull/push.
• If knob does not seat or turns freely, inspect the control shaft for damage—do not force the knob.

This user interface board mounts behind the selector knob and translates your input to the appliance's control system. Replacing a faulty board restores responsive knob operation so you can scroll and select settings reliably. What it does:

• Interprets knob rotation/press inputs and communicates them to the main control
• Enables scrolling through and selecting settings and menu options
• Typical failure symptoms: knob unresponsive, skips selections, scrolls erratically, or won't change settings
• Causes intermittent or no response from the knob area of the UI

• Disconnect power at the breaker before servicing
• Use ESD precautions; handle the circuit board by the edges
• Note/photograph connector locations; seat ribbon and plug connectors fully
• Transfer any reusable brackets or clips from the original board

This machine control board is the main electronic control module that regulates dryer functions and cycle sequencing, restoring user interface and automated program operation for affected machines. What it does:

• Receives input from the front panel and sensors to start, stop, and advance drying cycles.
• Controls heating, motor and timer sequencing to execute selected cycle settings.
• Responds to user commands and safety interlocks to prevent operation when doors are open or faults occur.
• Can resolve symptoms such as no display/controls, unresponsive cycle selection, or cycles not starting.

• One machine control board (main electronic control) as shown.

• Disconnect power before servicing to avoid shock—this part requires access behind the control console.
• Handle the board by its edges and avoid touching components; static discharge can damage electronics.
• Verify connector orientation and secure all wiring harnesses; do not force connectors.

This machine control board replaces the washer's main electronic control to restore cycle selection, timing and user interface responsiveness. It manages operations like fill, agitate, spin and drain so the washer follows selected cycles. What it does:

• Controls cycle sequences and timing so the washer moves through fill, wash, rinse and spin stages
• Communicates with the user interface and sensors to start and stop functions
• Can resolve symptoms such as no start, unresponsive buttons, incorrect cycle progression or erratic behavior
• Works with related components to coordinate machine operation

• Disconnect power and water supply before starting; risk of electric shock
• Handle the board by edges; avoid touching components to prevent static damage
• Note connector locations and take a photo before disconnecting; reinstall connectors in original positions
• After installation, restore power and run a test cycle to verify proper operation

This LED power board supplies and regulates power to the refrigerator's LED lighting, restoring reliable illumination and stable light output. It replaces a failed or damaged LED power module to stop flickering or loss of lighting. What it does:

• Provides the proper voltage/current to the LED light assembly so lights turn on and remain steady
• Replaces a worn or faulty board that can cause flickering, dimming, or no LED light at all
• Prevents intermittent lighting caused by loose or failed power components on the module
• Works with the appliance's existing LED strips and connectors

• Disconnect power to the appliance before beginning any service to avoid shock
• Handle the board by its edges and avoid touching circuitry; use anti-static precautions if available
• Verify connectors and harness orientation before plugging in; ensure secure mechanical mounting

This UI display board provides the front-panel display and touch/control interface so you can see settings and enter commands on your appliance. It restores visible feedback and responsive panel control for normal operation. What it does

• Illuminates and displays temperature, time, and status information on the front control area
• Registers touch/press inputs so control commands reach the appliance control system
• Helps stop blank, flickering, or unreadable displays when the display electronics fail
• Resolve unresponsive or intermittent front-panel controls caused by a failed interface board

• Always disconnect power at the breaker or unplug the appliance before starting work
• Protect the new board from static; handle by edges and avoid touching connector pins
• Reuse original mounting hardware unless replacements are required
• After installation, restore power and run a basic function test to display and button operation

This control knob assembly replaces a worn or damaged range/stove control knob to restore reliable temperature/setting selection and improve user control. It installs on compatible GE control shafts and matches OEM fit and function. What it does:

• Replaces a cracked, loose, or missing control knob to allow precise setting selection
• Restores secure fit on the control shaft so the knob does not slip during use
• Helps resolve issues where the knob spins freely or won't engage settings
• Matches OEM shape and detents for accurate tactile feedback

• Disconnect power to the appliance before attempting any repair to avoid shock or appliance operation.
• Most installations pull the old knob straight off the control shaft and press the new knob onto the shaft until fully seated.
• If clips or set screws are present, remove or reattach them as needed; do not force the knob onto a damaged shaft.

This block terminal is the wire-connection block that secures incoming power and internal wiring, restoring a safe, reliable electrical connection for the appliance. Replaces worn or damaged terminal connections to help prevent loose wires and arcing. What it does:

• Provides a secure connection point for incoming power and internal leads
• Replaces cracked, burned, or corroded terminal blocks that cause intermittent power or arcing
• Helps stop loose wires that can produce sparks, burning smells, or blown fuses/breakers
• Restores a stable electrical path so controls and heating elements receive power reliably

• One block terminal

• Always disconnect all power (unplug or shut off circuit breaker) before inspecting or replacing electrical parts
• Take a photo of wire routing and terminal screw positions before removal for correct reassembly
• Tighten terminal screws to secure wires; replace if mounting tabs or insulation are damaged

This air divider redirects cold air from the evaporator to the correct fresh-food or freezer area to help stabilize compartment temperatures and improve overall cooling performance. What it does:

• Guides chilled air through the correct ducting to balance temperatures between compartments
• Helps prevent one area from becoming too cold while another stays warm
• Can reduce temperature swings and improve defrost airflow when functioning correctly
• Typical symptom: uneven cooling or temperature fluctuations in refrigerator/freezer compartments

• One air divider piece

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access may require removing interior shelves, drawers, or back wall panel per your model's service instructions
• The part typically snaps or slides into place; inspect surrounding ducts/gaskets for damage before reassembly

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Cooling Fan Sensor Board is an OEM component for GE ovens and ranges. It is an electronic module connected to the main control board that monitors internal temperatures. An onboard thermistor sensor in the board regulates the convection fan relay and fan motor speed based on heating demands during the bake and broil functions.

Causes of a failed Cooling Fan Sensor Board can include moisture damage from spills or steam, faulty soldering connections, or manufacturing defects over time. Electronic components are also susceptible to normal wear from frequent heating cycles.

Symptoms of a bad board fan sensor include:

• Inconsistent or improper temperature control not maintaining set oven temperatures
• Issues with selected convection bake or broil modes not activating properly
• Abnormal fan speeds that do not correlate with heating element operation

It is also compatible with Hotpoint, RCA, and KitchenAid wall ovens and range models using the same electronic control system.

This 6 ft conduit provides a protective, flexible channel for routing wiring between components, helping keep wiring organized and shielded from damage. It's an optional replacement for appliances that require extended wiring protection. What it does

• Protects and organizes electrical wiring by enclosing wires in a flexible conduit
• Helps reduce wear from abrasion, vibration, or contact with sharp edges
• Useful when original wiring routing needs extension or added protection
• Can reduce the chance of exposed wiring that may lead to shorts or intermittent power issues

• One 6 ft conduit

• Intended for use where an appliance's wiring routing requires a longer protective conduit;
• Use appropriate tools and secure conduit ends to strain reliefs or fittings as originally installed
• Disconnect power to the appliance before attempting any wiring work

This wire harness is an LED jumper assembly used to connect oven or range control LEDs to the main wiring harness, restoring light/status indicator connections for safe, reliable operation. What it does:

• Carries low-voltage power and signals between control board LED(s) and the main harness
• Replaces damaged, burned, or loose LED jumper wiring that causes indicator lights to fail or flicker
• Helps recover proper front-panel LED indications and touch/control feedback when wiring is the fault
• Compatible with OEM LED connector interfaces

• One LED wire harness jumper

• Disconnect power at the breaker or unplug the appliance before any service
• Match connectors and routing to the original harness; do not force connectors or alter leads
• Inspect mating connectors and control board for damage before installing new harness

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

This is a replacement screw used to secure appliance components and restore proper fit and function. Installing the correct screw prevents loose panels and noisy operation and keeps parts aligned for safe use. What it does:

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Helps stop rattling or vibration caused by missing or stripped fasteners
• Restores secure fit where a screw has been lost or damaged
• Matches the OEM fit so adjoining parts align correctly

• One replacement screw as pictured

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread by hand first, then snug; do not overtighten to avoid cracking plastic or stripping threads
• Replace only with the same type and size screw to ensure proper fit

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

A small machine screw used to fasten appliance panels and components. This 10-32 x 7/16 screw secures assemblies and replacement parts so panels and brackets stay properly mounted during normal operation. What it does:

• Fastens small panels, brackets, and assemblies that use a 10-32 thread
• Replaces missing or stripped mounting screws to stop rattling and loose parts
• Helps maintain proper alignment of fitted components
• Used where a short 7/16" length is required for a flush fit

• Unplug the appliance before starting any repair
• Use the correct sized screwdriver or nut driver for 10-32 threads
• Hand-start the screw to avoid cross-threading, then snug—do not overtighten
• If threads are damaged, replace with correct fastener; avoid forcing the screw

Black. 8-18 AB HXW 3/8

A replacement hex nut used to secure appliance components and restore proper fastening. Installs quickly and helps stop loose or rattling parts caused by a missing or stripped nut. What it does

• Secures mounting studs, brackets, or components in place
• Prevents parts from shifting, vibrating, or coming loose during operation
• Replaces a missing, damaged, or corroded nut to restore reliable fastening

• One hex nut

• Disconnect power and gas before starting work
• Start threads by hand to avoid cross-threading, then tighten with the proper-size wrench
• Do not overtighten; snug until secure to avoid damaging studs or threads
• Use replacement only where the OEM hex nut is specified

This lubricant/cleaner is used during service of cooking appliances to dissolve residue and provide light lubrication on small moving parts. It helps restore smoother operation of control shafts and valves when burner knobs feel stiff or sticky. What it does:

• Cleans deposits and old grease from control shafts and valve components
• Provides light lubrication to reduce friction and sticking
• Helps address symptoms such as hard-to-turn burner knobs or rough valve rotation
• Supports preventative maintenance during range/cooktop service

• Lubricant/cleaner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Work in a well-ventilated area and keep away from open flames or ignition sources
• Apply sparingly per service instructions; avoid contact with igniters, electrical components, and flame ports
• Replace any worn or leaking valve—do not rely on lubricant/cleaner to correct a leak
