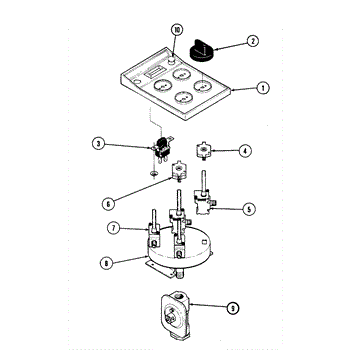

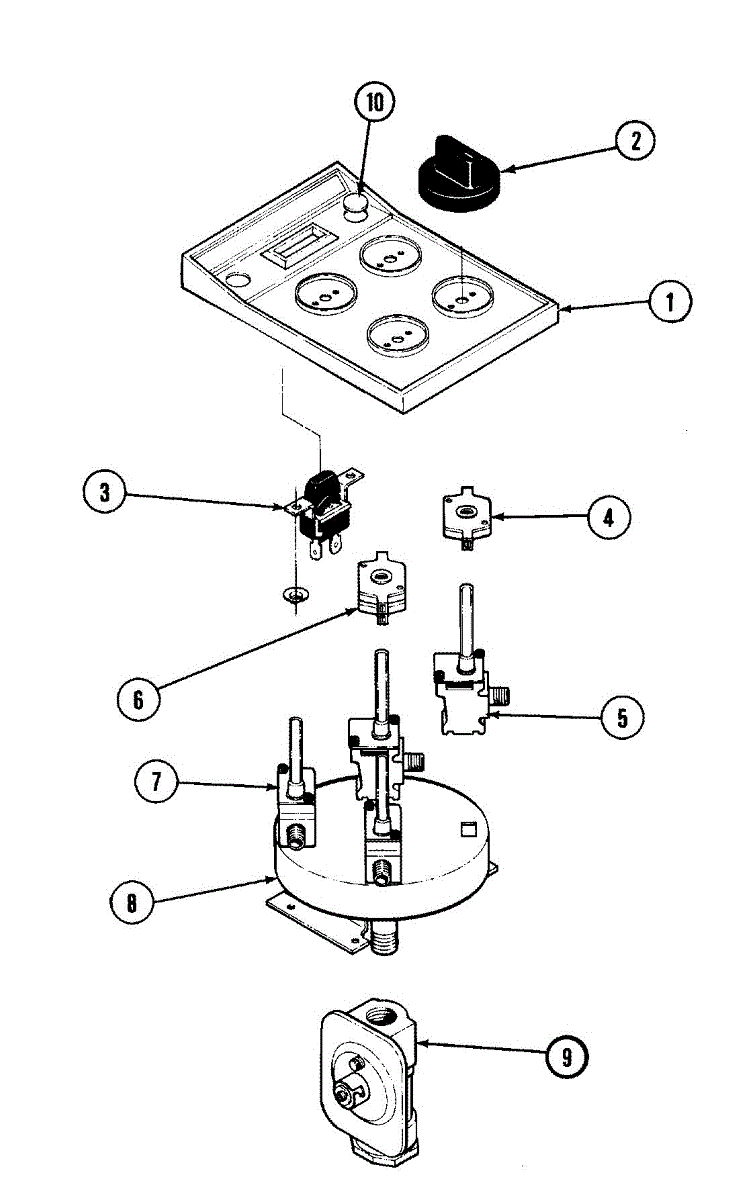

Parts for Jenn-Air 12103: 03 - Control Panel Parts

This surface-burner igniter switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a worn switch restores reliable top-burner ignition and helps eliminate intermittent or continuous clicking.

• Mounts on the surface burner gas valve and closes the circuit to the spark module as the knob is turned
• Triggers the igniter electrodes to spark so the burner lights
• Helps address: no spark when turning the knob, intermittent or delayed ignition, or continuous clicking/sparking
• Typical failure signs include needing to jiggle the knob to spark or sparking that won't stop after the flame is lit

• Disconnect electrical power; shut off gas supply if working near gas fittings; allow the appliance to cool
• Pull off the burner knob and remove the panel/top as needed to access the valve switch
• Move wires to the new switch one at a time to maintain correct connections; ensure the actuator aligns on the valve stem
• Reassemble, restore power, and test burner ignition

This top burner valve switch mounts to a surface burner gas valve and closes the ignition circuit when you turn the knob to Lite. Replacing a worn switch restores dependable sparking and stops intermittent or nonstop clicking at the burners.

• Mounts on the surface burner valve and closes the ignition circuit at the Lite position
• Signals the spark module to fire the igniters so the burner lights
• Helps ensure quick, consistent burner ignition
• Common symptoms: no spark at a burner, intermittent ignition, or continuous clicking with knobs in Off

• Disconnect power and shut off the gas supply before servicing
• Pull off the burner knob and remove the control/manifold panel to access the valve switch
• Transfer wires one at a time and align the switch correctly on the valve stem; avoid overtightening
• Reassemble, restore power, test for spark with gas off, then relight and check for leaks

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
