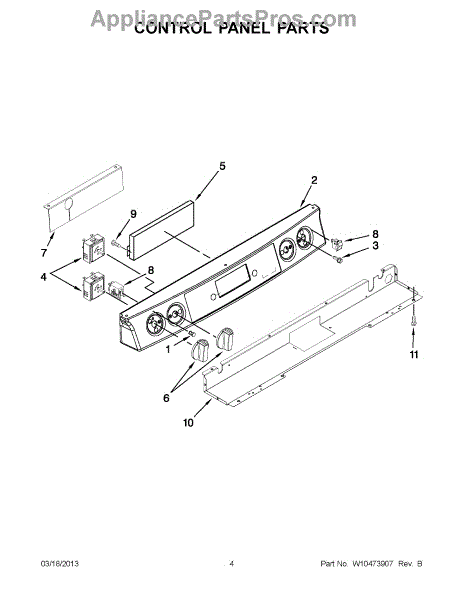

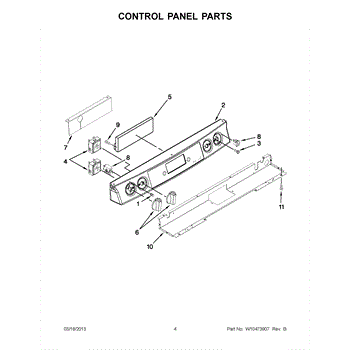

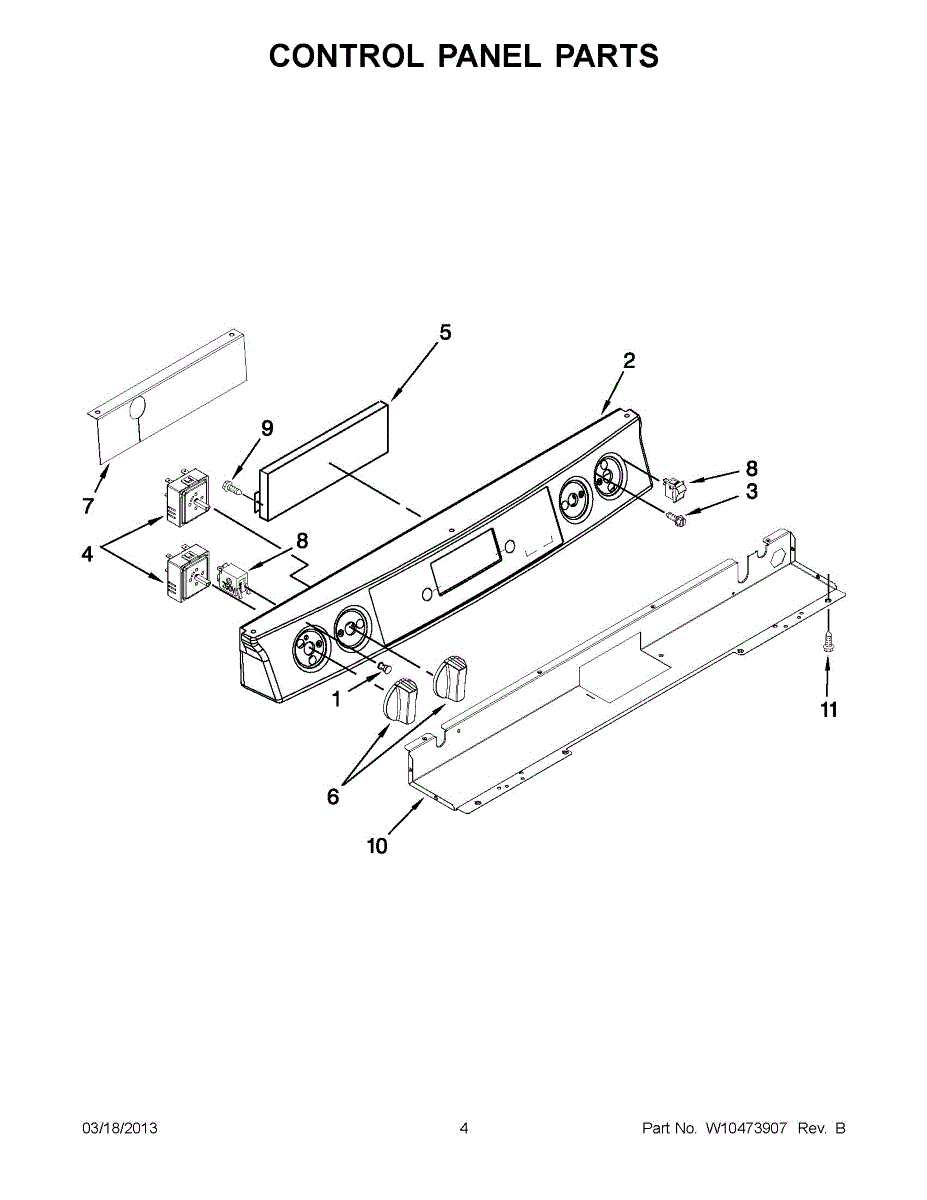

Parts for Jenn-Air JES9900CCS02: 02 - Control Panel Parts

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. It's a direct-fit fastening part used where the original OEM screw is specified. What it does:

• Secures trim, access panels, or internal components to maintain structural fit
• Prevents vibration noise and loose parts by holding assemblies firmly
• Matches OEM fit and threading for correct engagement when used in original locations
• Intended for repairs that require the exact replacement fastener

• Disconnect power and unplug the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic

This surface element infinite switch controls power to an electric cooktop burner, allowing smooth adjustment from low to high heat. Replace a faulty switch to restore consistent, reliable temperature control on your range's surface burner.

• Regulates on/off cycling of the surface element to maintain the selected heat level
• Common failure symptoms: burner won't heat, only heats on high, won't turn off, or heat changes erratically
• Restores full range of settings across the knob from simmer to full power
• Helps resolve intermittent heating caused by worn internal contacts

• Disconnect power at the breaker or unplug the range before servicing
• Remove the knob and access the control panel to reach the switch
• Photograph or label wires; transfer them one at a time to matching terminals on the new switch
• Secure the switch, reinstall the knob and panel, then test all heat settings

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This control knob replaces a worn or broken appliance control knob to restore safe, simple temperature and function adjustments. It provides a direct, user-facing interface so settings turn smoothly and stay set during use. What it does:

• Replaces a damaged, cracked, or stripped control knob so you can select heat, cycle, or power settings reliably
• Restores tactile grip and detent feedback for accurate adjustments
• Prevents slipping or loss of control caused by a loose or broken knob
• Fits on splined valve or shaft designs for direct mechanical connection

• Disconnect power to the appliance before servicing for safety
• Most knobs pull straight off the control shaft; no special tools required, though pliers with padded jaws may help for tight fits
• Align splines on the knob and shaft when installing; press firmly until seated

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
