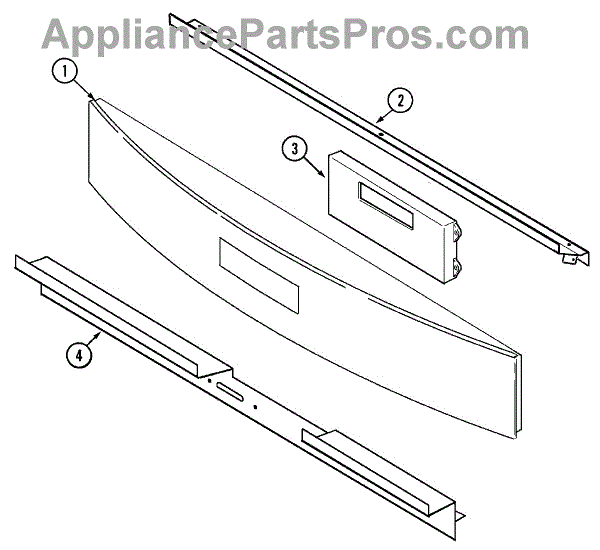

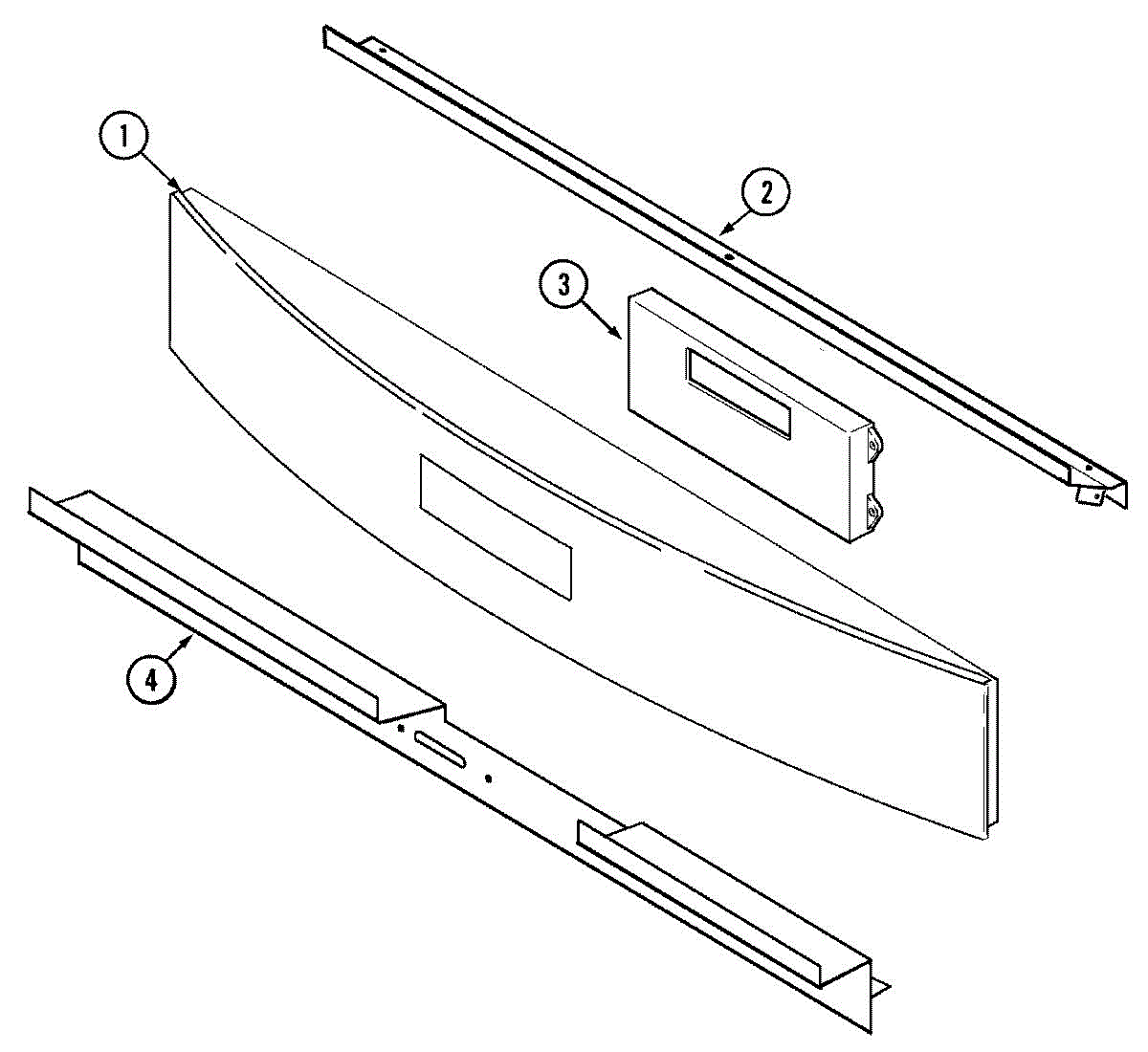

Parts for Jenn-Air JJW9630BAB: 02 - Control Panel Parts

Color: Black

Top control panel support plate for your oven. Mounts behind the control panel to provide structural stability. Replace if cracked, broken, or missing.

Color: Black. For biscuit order 98008169. For white order WP98008544.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Electronic clock control for the oven/range. This board drives the display and manages bake/broil commands, restoring accurate timekeeping and dependable oven controls when the original control has failed.

• Governs oven operations by processing keypad inputs and signaling the heating circuits for bake and broil
• Displays clock, timer, and status information
• Monitors system feedback and can trigger fault alerts when issues are detected
• Common failure signs: blank or flickering display
• Oven won't start, won't respond to settings, or shows recurring control fault codes

• Disconnect power at the breaker and verify no voltage before servicing
• Use anti-static precautions; handle the board by the edges
• Note wire/connecter locations and transfer them one at a time; reuse any brackets/trim your model requires
• After installation, set the clock and run a test bake/broil; clear stored codes if applicable

Main upper wire harness for ovens. Connects electrical components in the upper oven cavity. Replace if wires are frayed, damaged, or connections are loose.

Lower main wire harness for ovens. Connects electrical components in the lower section. Replace if wires are frayed, damaged, or connectors are broken.

This part has been discontinued by the manufacturer and is no longer available.
