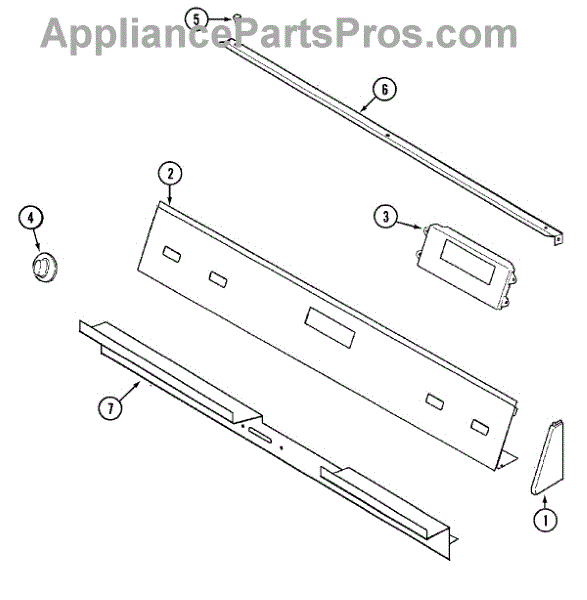

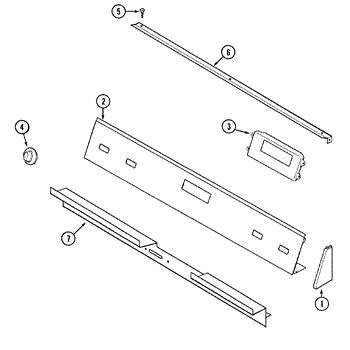

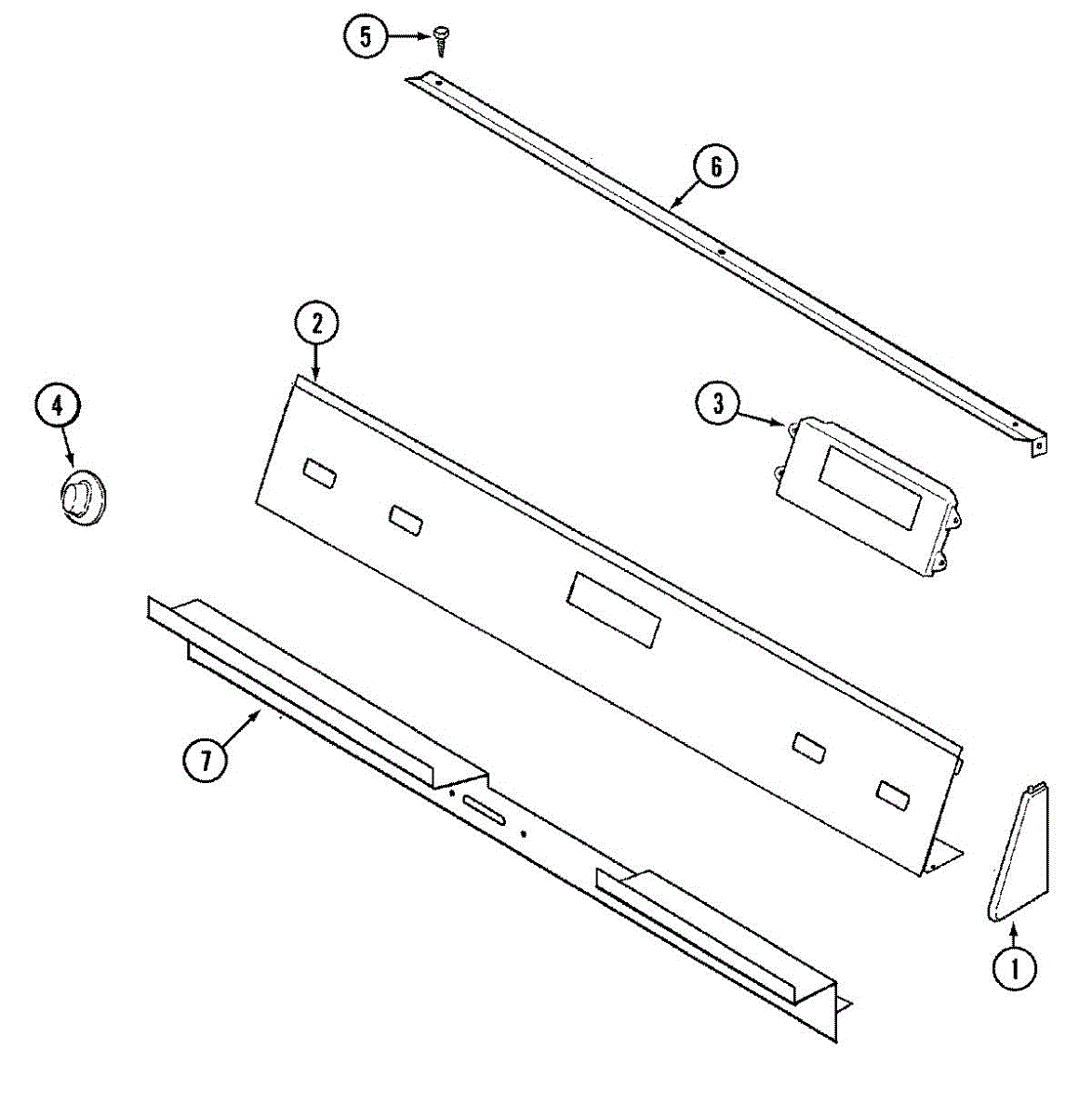

Parts for Jenn-Air SVD48600WC: 04 - Control Panel Parts

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This membrane switch is an integral part of several ovens, stoves, and ranges by major manufacturers. This part is a keypad on the outside of the oven that allows a user to choose the appropriate temperature for cooking. Users can also use the membrane switch to choose various functions so the appliance properly cooks a meal. If this part is damaged, key presses may not cause the appliance to choose the right cooking options. If this occurs, the membrane switch should be replaced.Before taking on the replacement process, make sure the oven is unplugged from the wall. Pull the range out for access to the side panels. Remove the screws at the back of both. Pull the back corner out and unhook the clip to remove the side panel. Slide the trim to the back of the range until clear of the control panel. Remove the screws holding the membrane switch so it can be removed. Replace with the new component and reassemble.Created for Jenn Air ranges, stoves, and ovens, this is a genuine OEM replacement membrane switch. It is directly sourced from the manufacturer. This part is sold as a single component.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Color: Grey

Color: White

This wiring harness connects the refrigerator cooling/condenser fan motor to the main wiring, restoring power and signal flow so the fan can run and help maintain proper cooling. Simple replacement when the old harness is damaged. What it does

• Provides the electrical connection between the cooling/condenser fan motor and the appliance wiring.
• Replaces a damaged, melted or corroded harness that can cause the fan to stop running.
• Helps resolve symptoms such as a warm refrigerator/freezer, intermittent fan operation, or no fan noise when compressor is running.
• Ensures secure, correct plug-and-play connections when installed properly.

• One cooling fan wiring harness

• Always unplug the appliance or turn off power at the breaker before starting work.
• Disconnect the old harness connectors from the fan motor and cabinet wiring; note routing and securement before removal.
• Reconnect new harness making sure all plugs seat fully and any retaining clips or ties are re-used to prevent contact with moving parts.
• After installation, restore power and verify the fan runs and there are no abnormal noises.

This part has been discontinued by the manufacturer and is no longer available.
