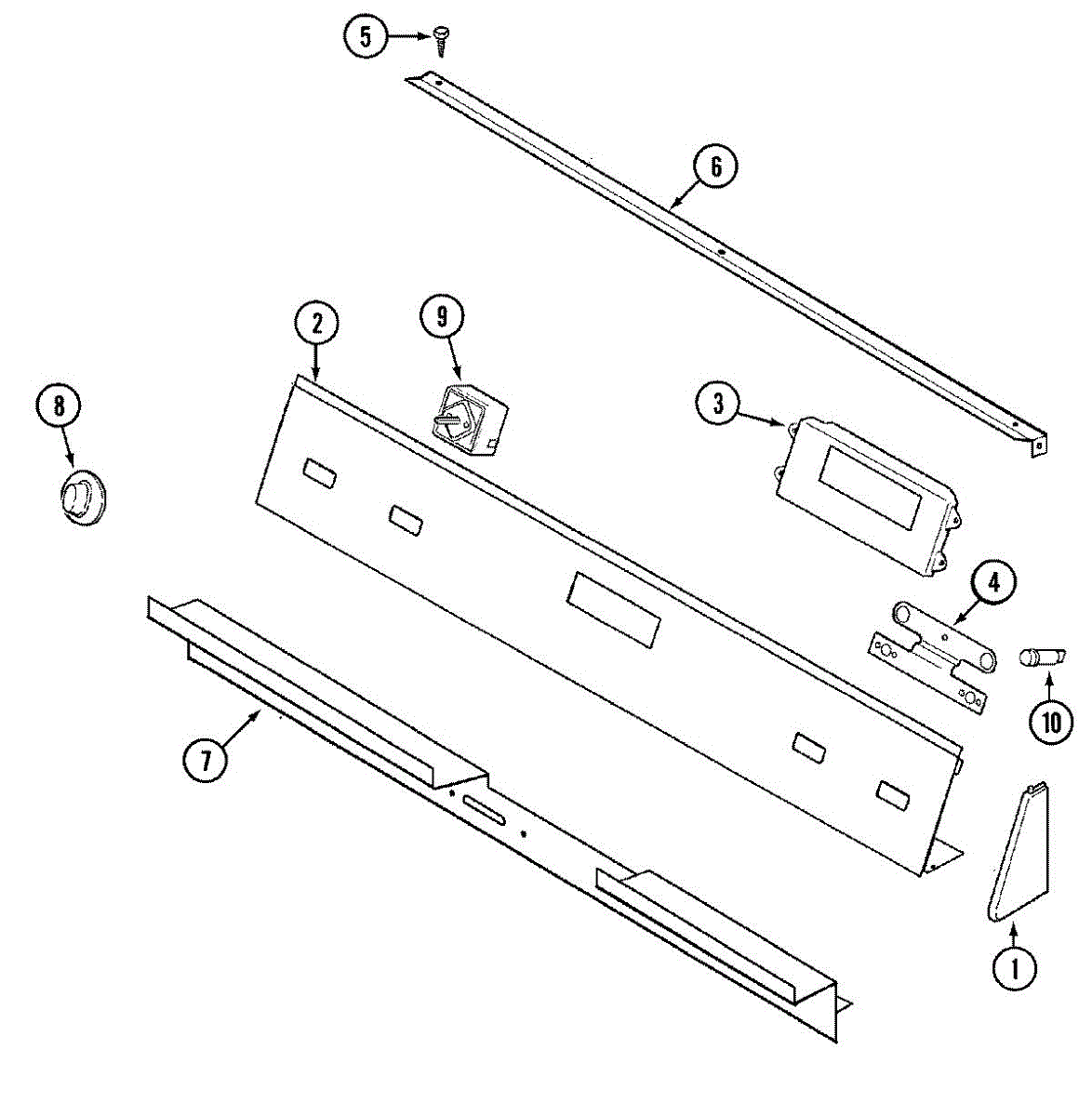

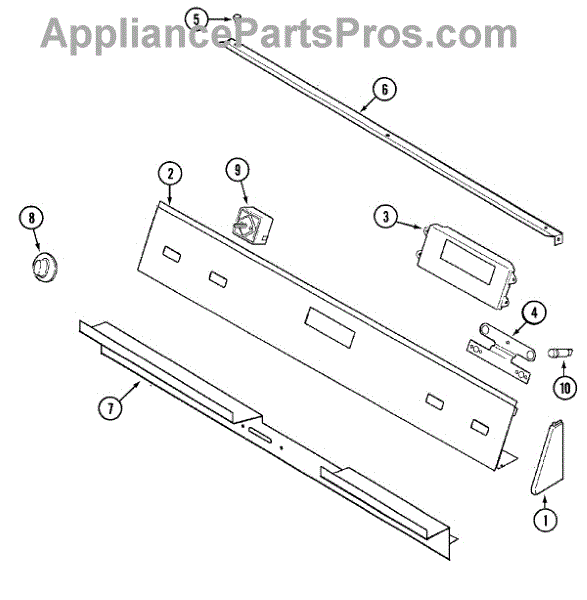

Parts for Jenn-Air SVE47600B: 04 - Control Panel Parts

This is an oven control board and clock manufactured by Whirlpool. It allows the user to adjust temperature, change oven function, set timers, and more. While the control board is designed to be durable, it can fail over time through exposure to moisture or high temperatures.When the oven control board begins to fail, it will not respond to user input, or may respond incorrectly. Replacing the control board is the only option to restore functionality. To replace it, turn off the power or unplug the oven. Remove the four screws holding the control board in place and disconnect the wires. Install the new board by following these steps in reverse.This is a genuine OEM part. It is sold individually, and fits Whirlpool, Roper, and Amana branded ovens.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw fastens appliance panels and components to restore secure mounting and stop rattling or loose parts. A basic, direct-fit fastener for routine repairs and reassembly. What it does:

• Secures panels, brackets, trim, or internal components to prevent movement and vibration
• Replaces missing or stripped screws that cause loose parts or rattling noises
• Restores reliable fastener retention for safe, stable operation
• Works wherever the OEM-specified screw is required for proper assembly

• Use the matching driver/socket and turn slowly to avoid stripping the head or threads
• Tighten until snug; do not over-torque to prevent damage to threads or housings
• Power off and unplug the appliance before attempting any repair
• If other fasteners or damaged mating threads are found, inspect surrounding components and replace as needed

The infinite switch is an OEM replacement part for Whirlpool cooktops. Located inside the panel it helps monitor temperature and functions through sensing heating elements and bake cycles. Precise cooking depends on its calibrated feedback.

Causes of a faulty cooktop interface switch include wire damage from heat exposure, excess baked-on residue insulating contacts, or repeated temperature fluctuations degrading components.

Symptoms include:

• Inability to preheat or maintain set cooking temperatures
• Failure to advance cycles or randomly turning off
• Error messages flashing on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wiring harness connects the refrigerator cooling/condenser fan motor to the main wiring, restoring power and signal flow so the fan can run and help maintain proper cooling. Simple replacement when the old harness is damaged. What it does

• Provides the electrical connection between the cooling/condenser fan motor and the appliance wiring.
• Replaces a damaged, melted or corroded harness that can cause the fan to stop running.
• Helps resolve symptoms such as a warm refrigerator/freezer, intermittent fan operation, or no fan noise when compressor is running.
• Ensures secure, correct plug-and-play connections when installed properly.

• One cooling fan wiring harness

• Always unplug the appliance or turn off power at the breaker before starting work.
• Disconnect the old harness connectors from the fan motor and cabinet wiring; note routing and securement before removal.
• Reconnect new harness making sure all plugs seat fully and any retaining clips or ties are re-used to prevent contact with moving parts.
• After installation, restore power and verify the fan runs and there are no abnormal noises.
