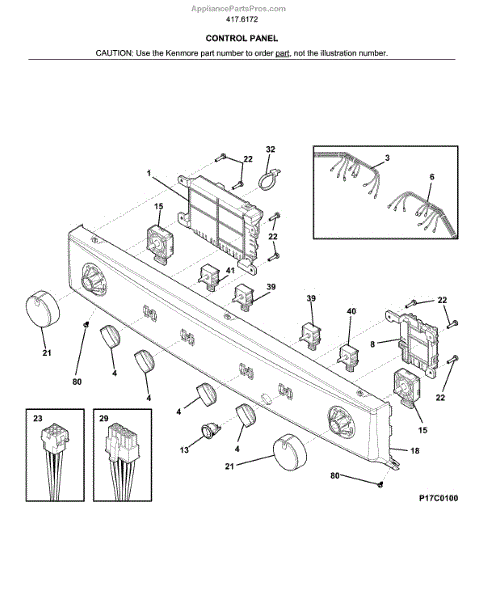

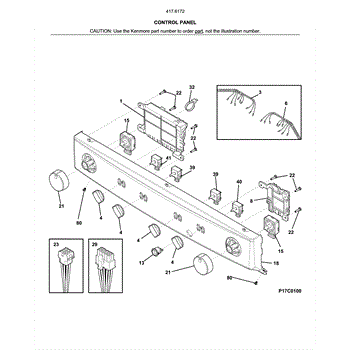

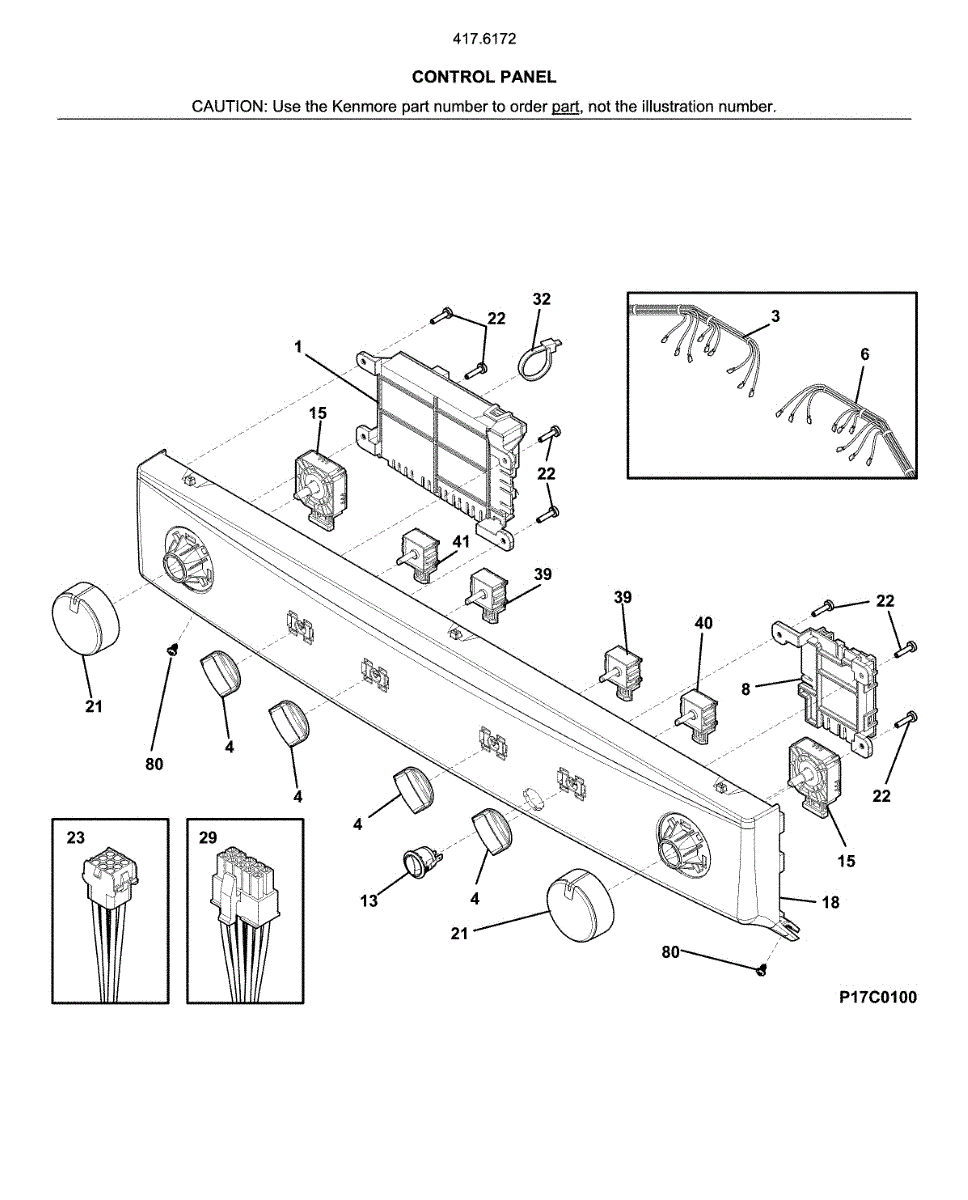

Parts for Kenmore 417.61723511 (41761723511, 417 61723511): Control Panel Parts

This electronic control board manages your appliance's core operations, interpreting user selections and sensor inputs to run cycles reliably. Replacing a failed board can restore proper functionality and responsive controls. What it does:

• Coordinates timing and operation of components based on programmed settings
• Processes signals from sensors and switches to start, stop, and sequence functions
• Sends control signals to motors, fans, valves, and heaters as designed
• Common symptoms of a failed board: won't start, unresponsive buttons, intermittent or erratic operation, display or indicator lights not working, repeated error codes

What's included:

• One control board (PCB), as shown

Install notes:

• Disconnect power to the appliance before servicing; allow any capacitors to discharge
• Use ESD protection and handle the board by the edges to avoid static damage
• Photograph wiring and move connectors one at a time to the matching terminals
• Some models may require configuration or code selection after installation—follow the unit's tech sheet or service manual

This replacement control knob lets you operate the corresponding control on your appliance with a solid, accurate feel. Restore clean appearance and dependable adjustment if the original knob is cracked, loose, missing, or stripped.

• Attaches to the control shaft to select and adjust settings
• Replaces knobs that are broken, cracked, or won't stay on the stem
• Helps correct slipping/spinning that prevents proper selection
• Restores pointer alignment and smooth, positive engagement

• Disconnect power (and shut off gas if applicable) before servicing
• Pull the old knob straight off the control shaft—do not pry against the panel
• Align the new knob with the shaft and press firmly until fully seated
• Test the control for proper engagement and pointer alignment before use

This wiring harness connects the appliance's electrical components, restoring reliable power and signal routing where damaged or worn wiring causes intermittent operation. Designed to replace the factory harness to help restore normal function. What it does:

• Routes power and control signals between the control board and key components
• Replaces frayed, burned, or broken wiring that can cause intermittent starts or loss of function
• Helps address symptoms like lights or controls not powering up, or components failing to run due to wiring faults
• Maintains OEM-style connector fit and wiring layout for straightforward replacement

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Compare connectors and wire colors to the old harness before installing
• Avoid pinching or sharply bending wires; secure the harness away from moving parts and heat sources

The Board is an OEM electronic control component designed for Frigidaire laundry centers. It regulates vital cycles and functions such as water levels, temperatures, speeds, and settings.

Causes of a faulty board can include water exposure, power surges, or standard wear of internal components over repeated usage.

Symptoms of a problematic board include:

• Inability to select or adjust laundry cycles
• Issues with cycle progress indicators
• Irregular sounds or movements from components
• Failure to properly fill, wash, or spin loads
• Unexpected error messages or resetting

This OEM Frigidaire replacement restores full and proper functionality, compatible with some Electrolux, Gibson, Roper, and Kenmore models as well.

This round on/off switch replaces the worn or broken power control on compatible appliances, restoring reliable on/off operation and user control at the front panel. Designed to match OEM fit and function for direct replacement. What it does:

• Provides a simple on/off user control for the appliance's power circuit
• Re-establishes consistent electrical contact when the original switch fails
• Commonly fixes symptoms like no power from the control location, intermittent power, or a switch that won't stay on
• Operates as the primary user-actuated power control for the associated circuit

• One round on/off switch

• Disconnect power to the appliance before testing or replacing the switch to avoid shock
• Verify correct wiring location and connectors before removing the old switch; transfer any wiring harness or connectors exactly
• Handle with care to avoid damage to the switch actuator or mounting tabs

This electrical switch controls a specific function within your appliance's circuit. When contacts wear or fail, the unit may not start or selected options won't engage. Replacing the switch restores proper signaling and dependable operation.

• Opens and closes an electrical circuit for its assigned function
• Sends the correct on/off signal to the control or motor circuit
• Common failure symptoms: no start/response, options not engaging, intermittent operation, or related error codes
• Can be checked with a continuity test; replace if contacts are stuck open or closed

• Disconnect power at the breaker; for gas dryers, also shut off gas supply
• Access the switch location and note wire positions (take a reference photo)
• Transfer wires to the new switch one at a time and secure the mounting
• Reassemble and run a test cycle to verify proper operation

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

The Terminal Block is an OEM replacement part for Frigidaire clothes dryers. It is the part the power cord connects to. This kit includes 3 screws and 3 terminals.

Causes of a bad terminal block can include damage from age, overheating from worn wires or loose connections, or improper installation during manufacturing.

Symptoms of a bad terminal block include:

• The dryer not powering on
• Intermittent heating issues
• Loose, frayed, or damaged wires

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.
