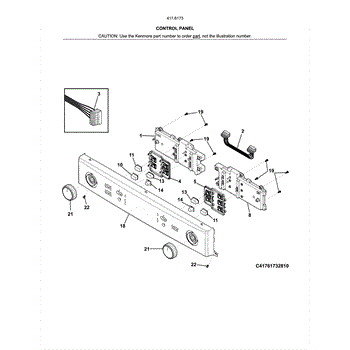

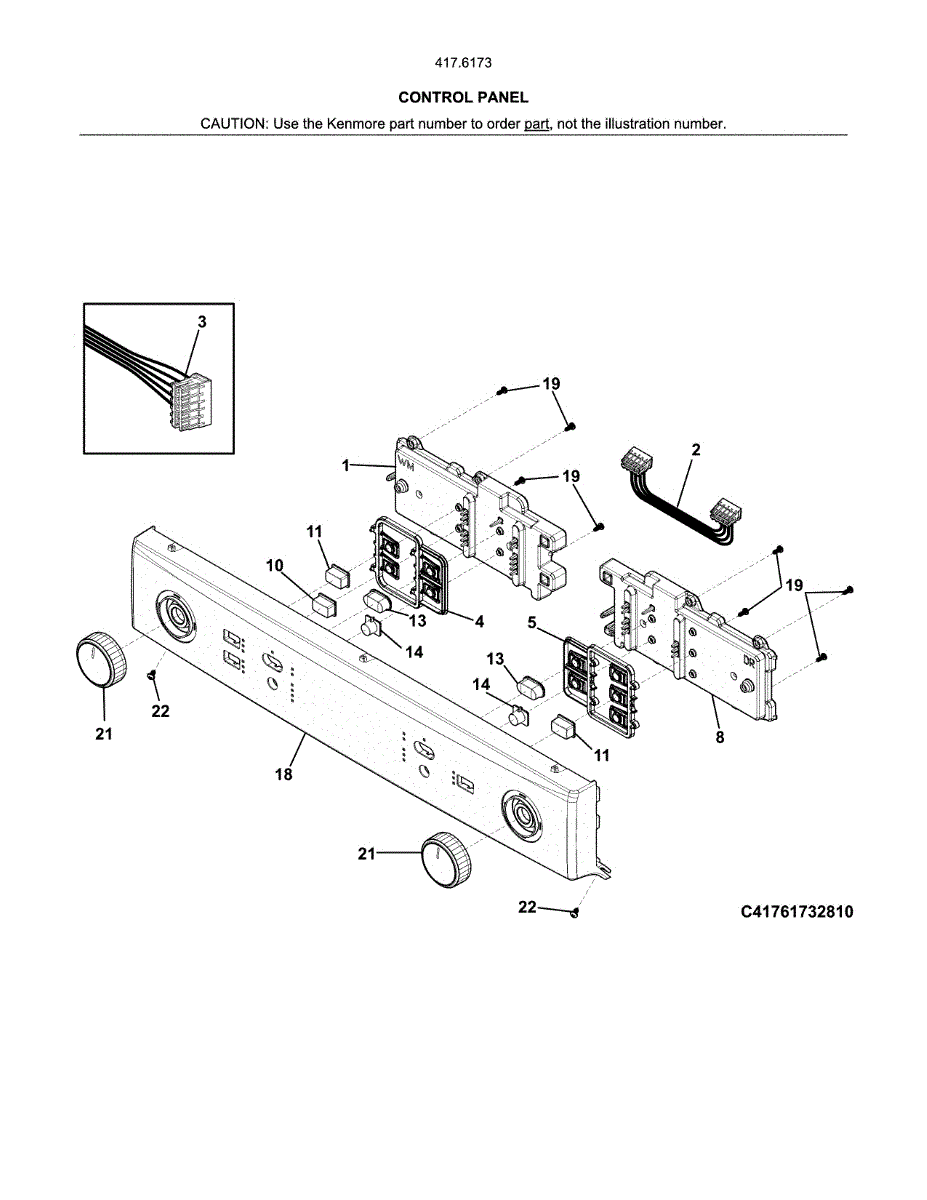

Parts for Kenmore 417.61732810 (41761732810, 417 61732810): Control Panel Parts

The Board Assembly is an OEM replacement part for Frigidaire laundry centers. It serves as the main control board, governing the operations and functions of the combined washer and dryer unit.

Symptoms of a bad board assembly include:

• The laundry center not turning on or responding to inputs
• Erratic behavior or incorrect cycle settings
• Specific wash or dry cycles failing to start or complete properly
• Error codes or warning lights displayed on the control panel

Causes of a bad board assembly can range from power surges or electrical spikes, to component failure due to age or wear and tear. Moisture or water damage can also compromise the functionality of the control board.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore laundry center models.

The User Interface Wiring Harness is an OEM part for Frigidaire laundry centers. It is responsible for connecting the user interface to the main control board, allowing for communication and control over the laundry center's various functions.

A bad user interface wiring harness can be caused by wear and tear, exposure to moisture, or damage from pests or rodents. Signs of a faulty wire harness include unresponsive buttons, error codes displayed on the control panel, or issues with the display or functionality of the laundry center.

Symptoms of a bad user interface wiring harness can include:

• Unresponsive buttons
• Error codes displayed
• Issues with the display

Replace your worn-out or damaged user interface wiring harness with this genuine OEM part to restore your laundry center. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This wiring harness routes power and signals between refrigerator controls, sensors and modules to restore electrical connections for normal operation. It's a direct-fit replacement when original wire assemblies are damaged or corroded. What it does

• Re-establishes electrical connections between control boards, switches, and door components
• Transfers power and signal paths needed for lights, dispensers, sensors or control circuits
• Helps resolve intermittent operation, no-power at a component, or visible wire damage
• Matches OEM connector types and wire groupings for proper fit and function

• One wiring harness as shown

• Disconnect power to the appliance before inspecting or replacing the harness
• Compare harness connectors and pin counts to the original before installation
• Route and secure wires away from sharp edges, moving parts and heat sources

The Board Assembly is an OEM part for Frigidaire dryers. This circuit board is for the electronic functions that control drying cycles, settings, sensors, and input/output components.

Causes of a bad board assembly include physical damage from impact or handling, short-circuiting due to intrusion of foreign materials, or naturally occuring component degradation as electronics age. Environmental exposures like moisture over prolonged use can corrode circuitry.

Symptoms of a bad board assembly can include:

• Non-functional cycles
• Inability to select options
• Failure to advance through sequence
• Unresponsive controls/display

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
