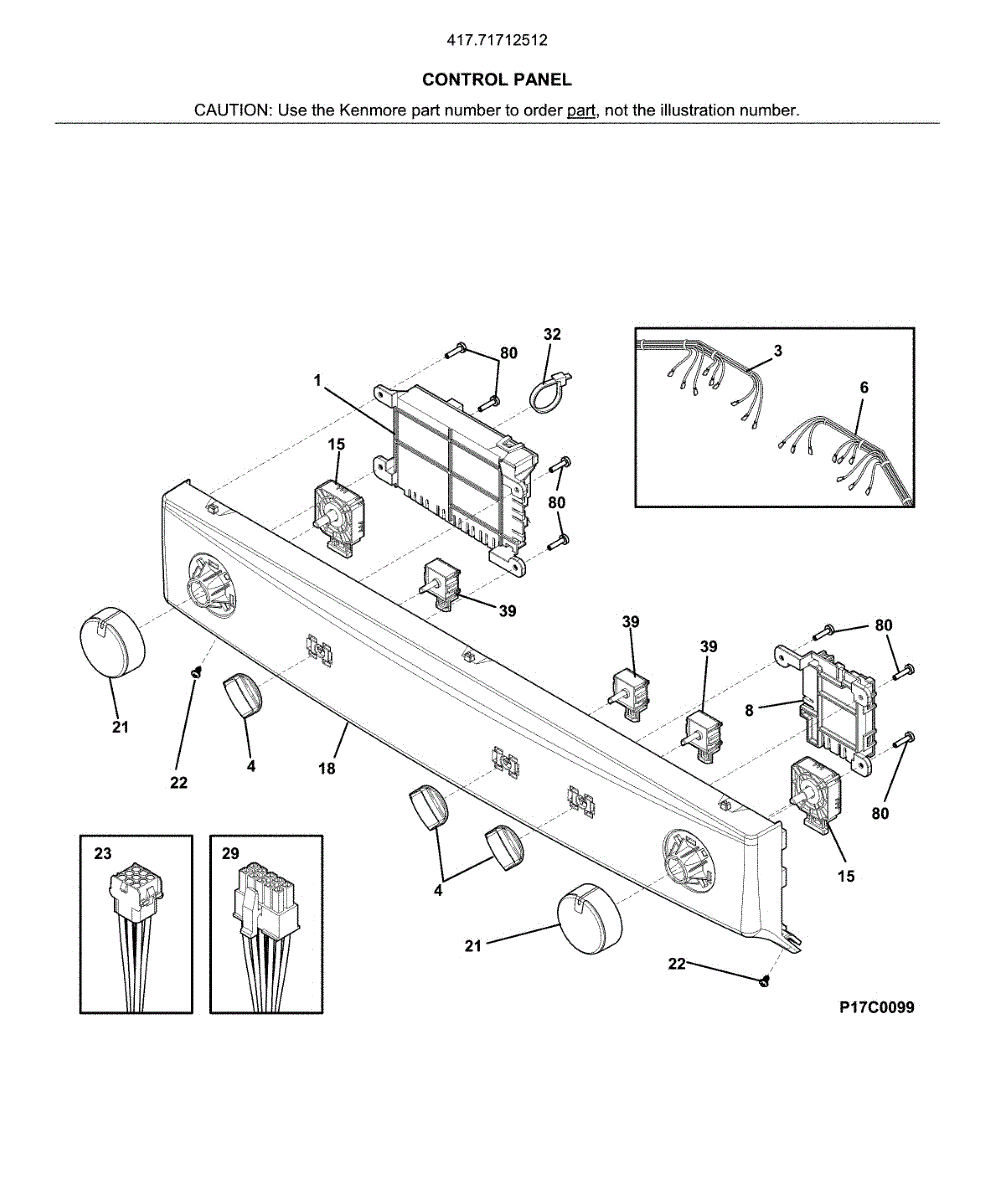

Parts for Kenmore 417.71712512 (41771712512, 417 71712512): Control Panel Parts

This electronic control board governs the appliance's functions by interpreting inputs and switching power to key components. Replace it to restore reliable operation when the unit is dead, unresponsive, intermittently running, or repeatedly displaying error indications.

• Interprets signals from sensors and user controls to regulate operation
• Switches power to motors, compressors, fans, heaters, or valves as designed
• Provides timing/logic for modes, cycle sequencing, and safety shutoffs
• Common failure symptoms: no display/power, controls not responding, won't start, intermittent operation, or error codes

• Disconnect power before servicing; do not rely on standby
• Use ESD protection and handle the board by its edges
• Photograph wiring; move connectors one at a time; transfer any jumpers or mounting hardware from the original board
• After installation, verify all connections and run model-specific tests per the service manual

This replacement control knob lets you operate the corresponding control on your appliance with a solid, accurate feel. Restore clean appearance and dependable adjustment if the original knob is cracked, loose, missing, or stripped.

• Attaches to the control shaft to select and adjust settings
• Replaces knobs that are broken, cracked, or won't stay on the stem
• Helps correct slipping/spinning that prevents proper selection
• Restores pointer alignment and smooth, positive engagement

• Disconnect power (and shut off gas if applicable) before servicing
• Pull the old knob straight off the control shaft—do not pry against the panel
• Align the new knob with the shaft and press firmly until fully seated
• Test the control for proper engagement and pointer alignment before use

This wire harness routes power and signals between the refrigerator's main electrical components to restore reliable electrical connections and component operation. It replaces a damaged or worn harness to help eliminate intermittent power or control issues. What it does:

• Carries power and control signals to lights, fans, icemaker, dispenser, and control boards
• Restores consistent connections when frayed wires or broken terminals cause intermittent operation
• Helps stop failures caused by shorted, corroded, or disconnected wiring
• Supports safe operation by keeping wiring routed and insulated per factory layout

• One complete wire harness assembly

• Always unplug the appliance or shut off power at the breaker before beginning work
• Handle connectors by the housings; avoid pulling on individual wires
• Route and secure the harness following factory clips and channels to prevent rubbing or pinching

The Board is an OEM electronic control component designed for Frigidaire laundry centers. It regulates vital cycles and functions such as water levels, temperatures, speeds, and settings.

Causes of a faulty board can include water exposure, power surges, or standard wear of internal components over repeated usage.

Symptoms of a problematic board include:

• Inability to select or adjust laundry cycles
• Issues with cycle progress indicators
• Irregular sounds or movements from components
• Failure to properly fill, wash, or spin loads
• Unexpected error messages or resetting

This OEM Frigidaire replacement restores full and proper functionality, compatible with some Electrolux, Gibson, Roper, and Kenmore models as well.

The Cycle Selector Switch is an OEM part for Frigidaire washers and dryers. It is a component that allows you to choose and control different cycles and settings during the laundry process. The cycle selector switch is typically located on the control panel of the washer or dryer.

Causes of a faulty cycle selector switch can include regular wear and tear, electrical malfunctions, or physical damage. These factors can result in issues such as the switch not responding or functioning properly, difficulty in selecting or changing cycles, or the appliance not starting or stopping as desired.

Symptoms of a bad cycle selector switch may include:
Inability to select or change cycles
Unresponsiveness or inconsistency in switch operation
Error codes or failure to start or stop the appliance

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

This factory electrical switch opens and closes a control circuit inside select laundry appliances. Replacing a worn or failed switch restores consistent signaling so the assigned function operates reliably and the machine responds as expected.

• Opens/closes electrical contacts when actuated by the appliance's control, lever, or mechanism
• Provides the on/off or position signal needed by the timer or electronic control
• Common symptoms of a failing switch: no response when selecting an option, intermittent operation, or an option that engages only when wiggled
• May trigger a related fault or cause the cycle to pause/stop when the switch is moved, depending on model

• Disconnect power before servicing; also shut off gas supply
• Access the switch per your model's service information; avoid pulling on wires
• Note and transfer wire positions one-by-one (take a photo for reference)
• If diagnosing, verify switch continuity with a multimeter before and after replacement
