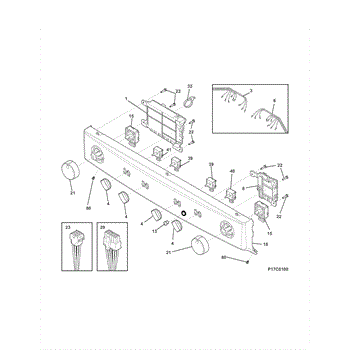

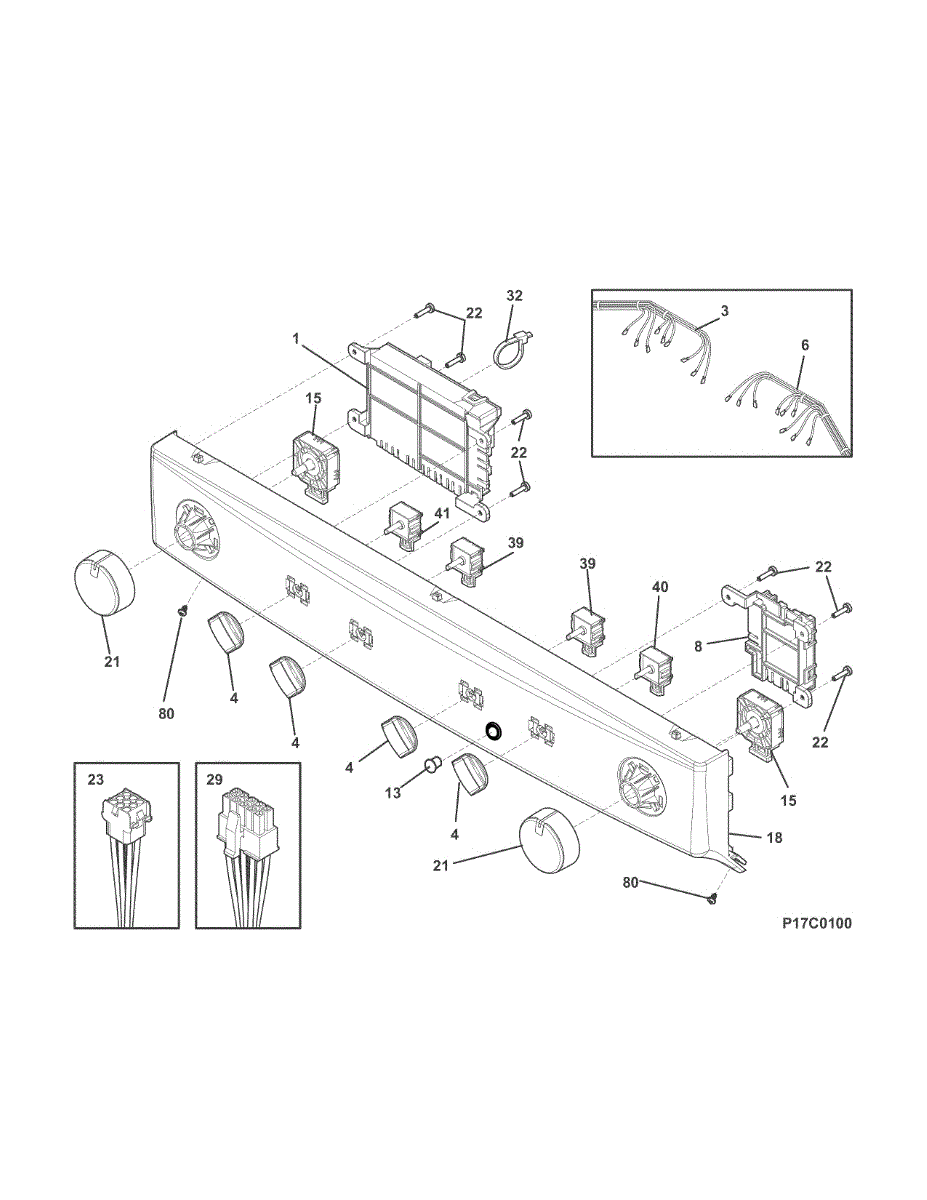

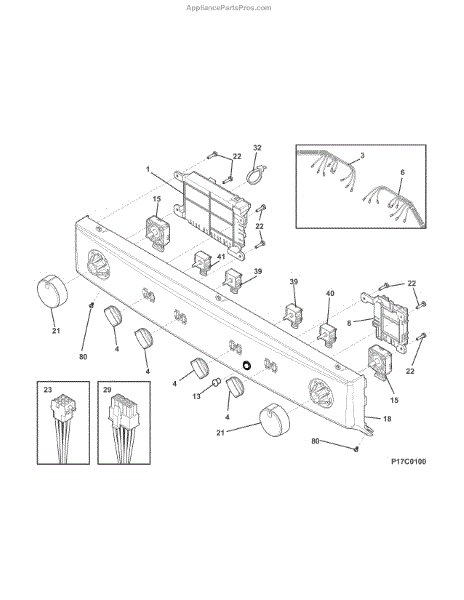

Parts for Kenmore 417.71723510 (41771723510, 417 71723510): Control Panel Parts

Fix a laundry center that won't start cycles or requires constant resetting. This electronic control board restores user interface and timed functions.

Wiring harness for laundry center units. Connects electrical components between washer and dryer sections. Replace if wires are frayed or connectors damaged.

Fix intermittent operation or power issues in your laundry center with a new wiring harness. Restores electrical connections between components.

The Board is an OEM electronic control component designed for Frigidaire laundry centers. It regulates vital cycles and functions such as water levels, temperatures, speeds, and settings.

Causes of a faulty board can include water exposure, power surges, or standard wear of internal components over repeated usage.

Symptoms of a problematic board include:

• Inability to select or adjust laundry cycles
• Issues with cycle progress indicators
• Irregular sounds or movements from components
• Failure to properly fill, wash, or spin loads
• Unexpected error messages or resetting

This OEM Frigidaire replacement restores full and proper functionality, compatible with some Electrolux, Gibson, Roper, and Kenmore models as well.

This electrical switch controls a specific function within your appliance's circuit. When contacts wear or fail, the unit may not start or selected options won't engage. Replacing the switch restores proper signaling and dependable operation.

• Opens and closes an electrical circuit for its assigned function
• Sends the correct on/off signal to the control or motor circuit
• Common failure symptoms: no start/response, options not engaging, intermittent operation, or related error codes
• Can be checked with a continuity test; replace if contacts are stuck open or closed

• Disconnect power at the breaker; for gas dryers, also shut off gas supply
• Access the switch location and note wire positions (take a reference photo)
• Transfer wires to the new switch one at a time and secure the mounting
• Reassemble and run a test cycle to verify proper operation

Control knob for laundry center. Installs on the front control panel to adjust settings. Replace if cracked, broken, or missing for proper operation.

Wire harness for laundry center units. Connects electrical components between washer and dryer sections. Replace if wires are frayed, damaged, or connectors are broken.

Wire harness for laundry center units. Connects electrical components inside the cabinet. Replace if wires are frayed, connectors are damaged, or harness is broken.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Fix a laundry center that won't start or respond to controls with this switch. Common fix for unresponsive buttons or cycle selection issues. DIY-friendly.

Replace a faulty switch in your laundry center when the unit won't start or cycle properly. This switch restores normal operation. DIY-friendly repair.

Pan head mounting screw for dryers. Secures internal components and panels. Replace if stripped, missing, or damaged during appliance maintenance.

This Energy Guide label displays an appliance's estimated energy use and efficiency information in a durable sticker format for legible, factory-style identification. Replace a missing, damaged, or faded label to restore readable energy information. What it does:

• Shows estimated yearly energy use and efficiency ratings so energy info is visible.
• Restores a worn, torn, or faded factory energy guide for proper identification.
• Helps meet labeling expectations for resale, service, and owner reference.
• Provides the original-style printed information in a pressure-sensitive adhesive format.

• Clean and dry the mounting surface thoroughly before applying to ensure adhesion.
• Align carefully and press firmly from one edge to the other to avoid air bubbles.
• Avoid placing over seams, gaskets, or areas exposed to excessive heat or moisture.
• No special tools required; use a gentle adhesive remover and a plastic scraper to avoid surface damage.
