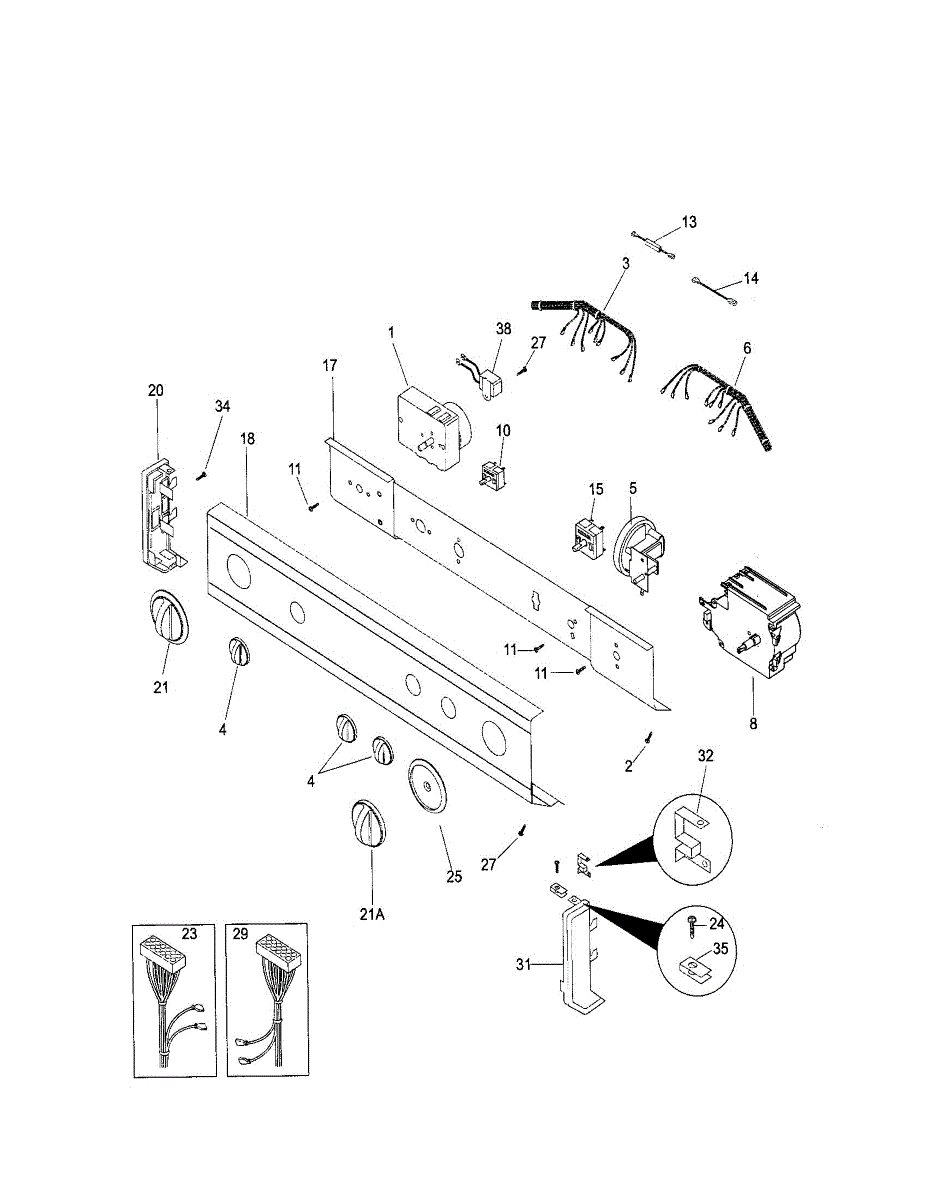

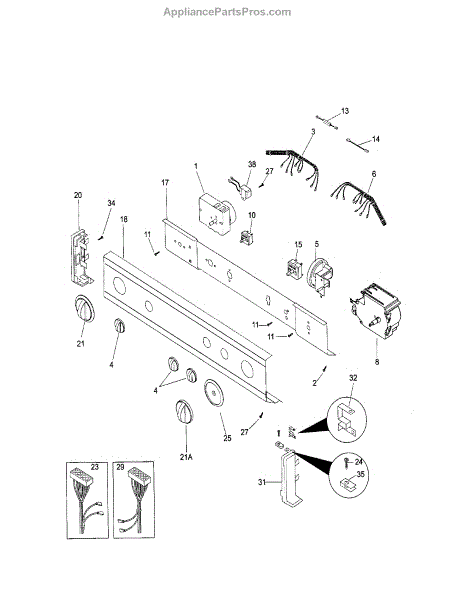

Parts for Kenmore 417.94702300 (41794702300, 417 94702300): Control Panel Parts

Printed owner's manual for washer dryer combos. Includes operation instructions, care guidelines, and troubleshooting tips. Replace lost or damaged guides.

If your dryer won't shut off or cycles won't advance, the timer may have failed. This control manages drying cycles and run time. DIY repair in 20 minutes.

Installation instructions manual for washer dryer combo units. Provides step-by-step setup guidance. Replace if lost, damaged, or illegible.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

White rotary control knob for washer dryer combo units. Replaces cracked, worn, or missing knobs to restore dial operation and control selection.

This is a repair parts list — a printed parts diagram and number reference used to identify components for service and parts ordering. It helps technicians and DIYers the exact parts needed before repair. What it does:

• Shows the appliance parts diagram with reference numbers tied to OEM part numbers
• Helps locate and identify specific replacement parts for repairs
• Simplifies ordering by matching diagram references to part numbers
• Useful for troubleshooting and planning service work

• This item is informational and not a replacement mechanical component
• Keep the sheet with the appliance service records or kit
• Use the listed part numbers when ordering to ensure correct replacements
• If a physical copy is damaged, request a replacement or the OEM parts diagram online

Fix a washer that won't advance cycles, stops mid-cycle, or runs continuously. This control timer regulates wash and spin durations. 30-minute repair.

The Start Switch is an OEM replacement part for Frigidaire dryers. This part initiates the dryer's cycle once the user selects the desired settings. By pressing the start switch, the motor activates, and the drying process begins, ensuring clothes are dried according to the selected specifications.

Symptoms of a bad Start Switch include:

• The dryer not starting when the switch is pressed
• Intermittent starting issues, where the dryer sometimes starts and sometimes doesn’t
• The need to hold the switch in place to keep the dryer running
• Unusual noises when the switch is pressed

Causes for a malfunctioning Start Switch can include electrical issues, such as faulty wiring or connections, wear and tear from frequent use, or internal failures within the switch mechanism that prevent it from signaling the motor to start.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore dryers.

Secures panels, brackets, and trim on appliances. Replace when missing, stripped, or damaged to restore a tight, rattle-free fit and proper alignment.

Replacement control panel for washer dryer combo units. Restores the front control interface when original is cracked, damaged, or worn. Direct fit panel.

White. Left hand side

Color: white. Measures about 2 inches in Diameter.

The Dryer Timer Knob is an OEM part for Frigidaire dryers. It is responsible for allowing users to set the drying time and cycle selection by turning the timer shaft. The knob securely attaches to the timer and provides an easy way to control dryer settings.

Over time, the timer knob can become damaged due to repeated use, excessive force when turning, or wear on the internal connection points. If the knob becomes stripped, cracked, or no longer stays in place, it may need to be replaced.

Symptoms of a bad timer knob include:

• The knob spins freely without adjusting the timer
• Cracks or breaks in the knob
• Difficulty selecting or changing dryer settings
• The knob does not stay attached to the timer

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This terminal block screw secures the power cord leads to the appliance's terminal block, helping maintain a tight, reliable electrical connection. Replace missing, stripped, or heat-damaged screws to restore proper clamping of the wire lugs.

• Clamps incoming power wires to the terminal block for a secure electrical connection
• Replaces stripped, corroded, or missing terminal screw
• Designed to fit the original terminal block hardware locations

What's included: 1 terminal block screw Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal block (location varies by model); note wire positions
• Inspect terminal block and wire lugs; replace any heat-damaged components
• Install and tighten the new screw securely without over-tightening; reinstall access cover and verify strain relief is in place before restoring power

Dryer won't start or smells like burning? A melted or loose terminal block where the power cord connects is often the cause. Easy 20-minute repair.

Mounting screw secures panels, trim, or brackets in dryers, washers, and ranges. Replace lost, stripped, or corroded screws to restore stability.

This is a replacement mounting screw used to secure appliance panels, brackets, and components. Replacing worn or missing screws restores proper fit and reduces rattles or loose parts for safe, stable operation. What it does:

• Secures panels, brackets, trim, or small components in place
• Helps eliminate rattling, vibration, and loose or misaligned parts
• Restores proper fastening after maintenance or part replacement
• Matches the appliance's original fastener style for correct fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent thread or component damage

Harness cable tie secures and organizes wiring inside your appliance. Replace if damaged, cracked, or no longer holding wires firmly in place.

White. Right hand side

Secures wiring harness to prevent chafing and maintain safe wire routing in washers, dryers, and laundry appliances. Replace if loose or broken. Check your model for compatibility.
