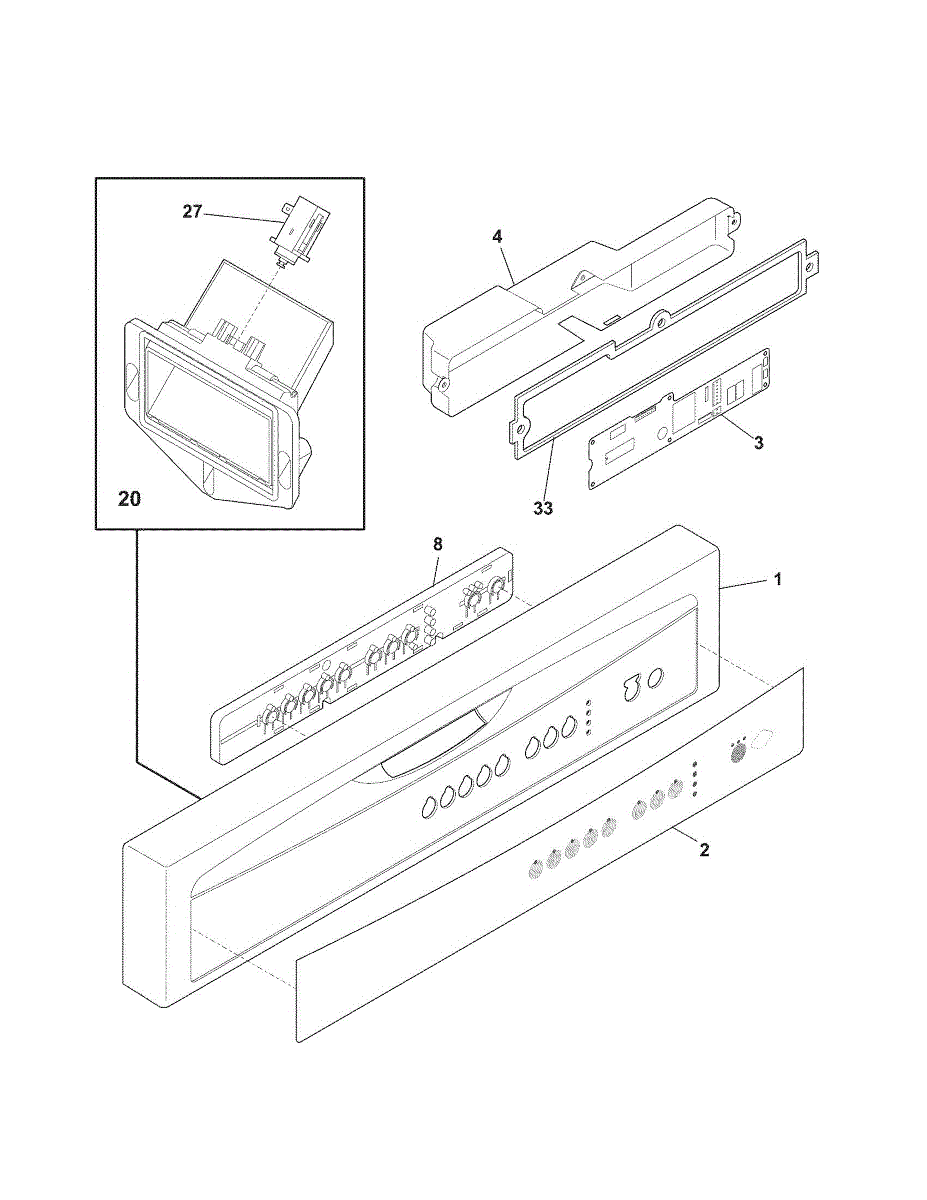

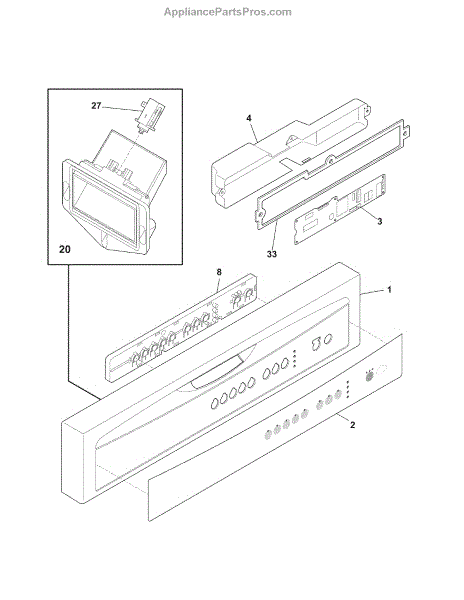

Parts for Kenmore 587.16103801 (58716103801, 587 16103801): Control Panel Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement touch pad panel for your dishwasher's control interface. Installs on the front console. Needed when buttons are cracked, worn, or unresponsive.

Dishwasher won't start or displays flashing lights? The control board manages cycles, detergent dispenser, and water release. DIY repair in 10 minutes.

Fix a dishwasher with no control panel lights or one that won't start cycles. This switch assembly restores electrical signals for reliable operation.

Includes actuator

Includes actuator

This door gasket is the flexible rubber seal that closes the refrigerator door, helping keep cold air in and reduce energy loss. Replacing a worn or torn gasket restores a tight seal and helps the appliance maintain proper temperature. What it does:

• Seals the cabinet to keep cold air inside and warm air out
• Helps maintain consistent fridge/freezer temperature and efficiency
• Reduces frosting and moisture buildup caused by leaks
• Commonly needed when the seal is cracked, torn, warped, or no longer mates flush with the cabinet

• One replacement door gasket

• Clean the door flange and gasket mounting area before installing to ensure a proper seal
• Inspect for mounting clips or retainer channel; follow appliance-specific alignment steps for a snug fit
• Warm the gasket slightly (per OEM guidance) if needed to ease installation — avoid open flames or excessive heat

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Replacement care guide and operating manual for your dishwasher. Provides setup, usage, and maintenance instructions if original was lost or damaged.

Mounting screw for dishwasher assembly. Secures internal components and panels. Replace if missing, stripped, or corroded during maintenance or repair.

This is a printed repair parts list — a service sheet that shows the unit's parts, part numbers, and diagram references to help identify what to order. Useful for service planning and parts lookup. What it does:

• Provides the exploded parts diagram and corresponding part numbers for the appliance
• Helps technicians and DIYers the exact replacement parts needed
• Simplifies ordering by matching visible components to official part numbers
• Reduces mis-orders by clarifying part names and locations

• One printed repair parts list/service sheet as shown

• No electrical or mechanical installation required; this is a reference document
• Store in a dry place and keep with appliance records for future service
• Use only for parts identification; follow OEM instructions and safety guidance when replacing parts

Plastic dispenser mounting screw for dishwashers. Secures detergent dispenser assembly to door. Replace if stripped, cracked, or missing.

Replacement mounting screw for dishwasher panels and internal components. Secures brackets and chassis parts. Replace stripped, missing, or damaged hardware.

This thermistor is the dishwasher's temperature sensor. It reports water temperature to the control so the heater and cycle timing are managed correctly, helping restore reliable wash performance and more consistent drying.

• Monitors water temperature in the tub/sump and sends readings to the control board
• Helps the control regulate heater operation and determine cycle progress/timing
• Failure can result in no heat or poor drying
• May cause unusually long/short cycles or temperature-related fault codes

• Disconnect power at the breaker and shut off the water supply before servicing
• Access is typically from the toe-kick/base area or sump; remove the lower access panel as needed
• Release the locking tab/clip, remove the sensor, and ensure the existing seal/O-ring is properly seated; install the new sensor fully to prevent leaks
• Reconnect the wire harness, restore power, and run a test cycle to check for leaks and proper heating

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
