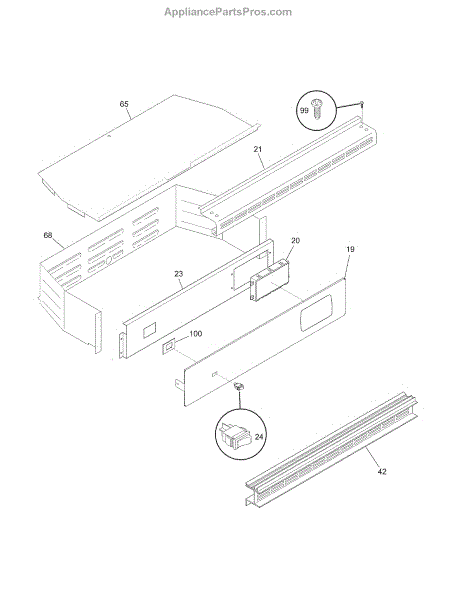

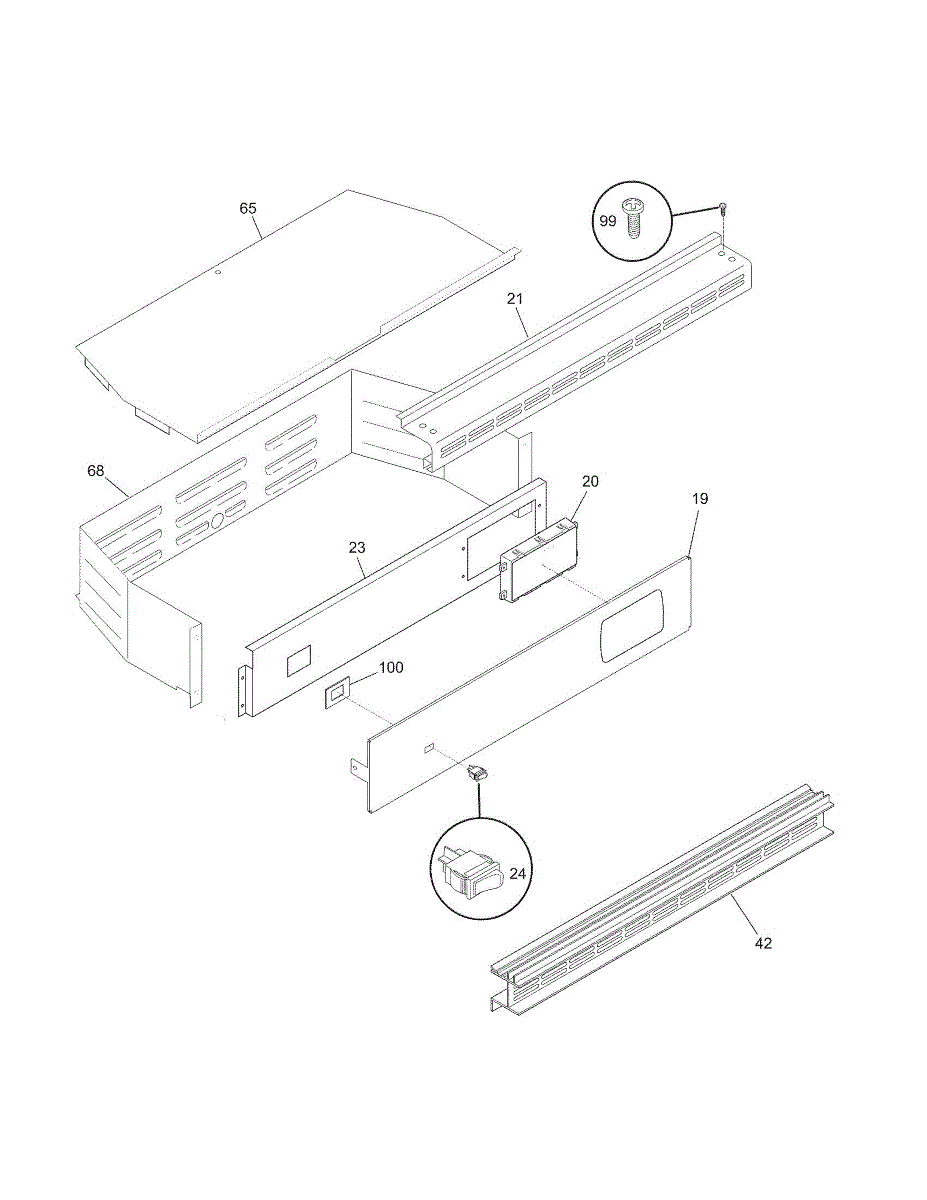

Parts for Kenmore 790.30529802 (79030529802, 790 30529802): Control Panel Parts

Fix an oven that won't keep time or start cook cycles with this clock timer control. Replaces heat-damaged circuits. Moderate DIY repair, 1-2 hours.

Oven won't heat, buttons unresponsive, or display blank? This control board with overlay governs all oven functions. Moderate DIY repair for most models.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This repair parts list is a printed parts diagram that helps you identify replacement components and part numbers so you can order the correct items for a repair. It's a reference sheet for locating parts and confirming assemblies. What it does:

• Shows exploded views and part callouts to identify specific components
• Lists OEM part numbers used to confirm correct replacements
• Helps troubleshoot by linking visible parts to common fault areas
• Speeds ordering and communication with service technicians or parts suppliers

• One printed repair parts list / parts diagram

• This is a reference document only — it is not a replacement part or repair tool
• Keep the sheet dry and handle by the edges to avoid smudging or damage
• Use with appliance unplugged/power off and follow all safety guidelines when performing repairs

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Replacement mounting screw that secures panels, trim, and components in ranges and ovens. Needed when original screws are lost, stripped, or damaged.
