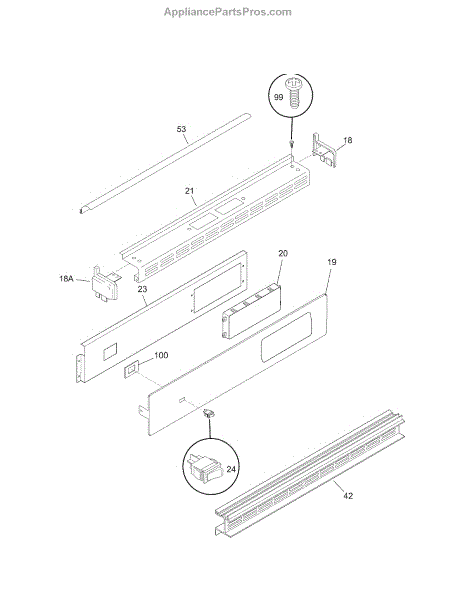

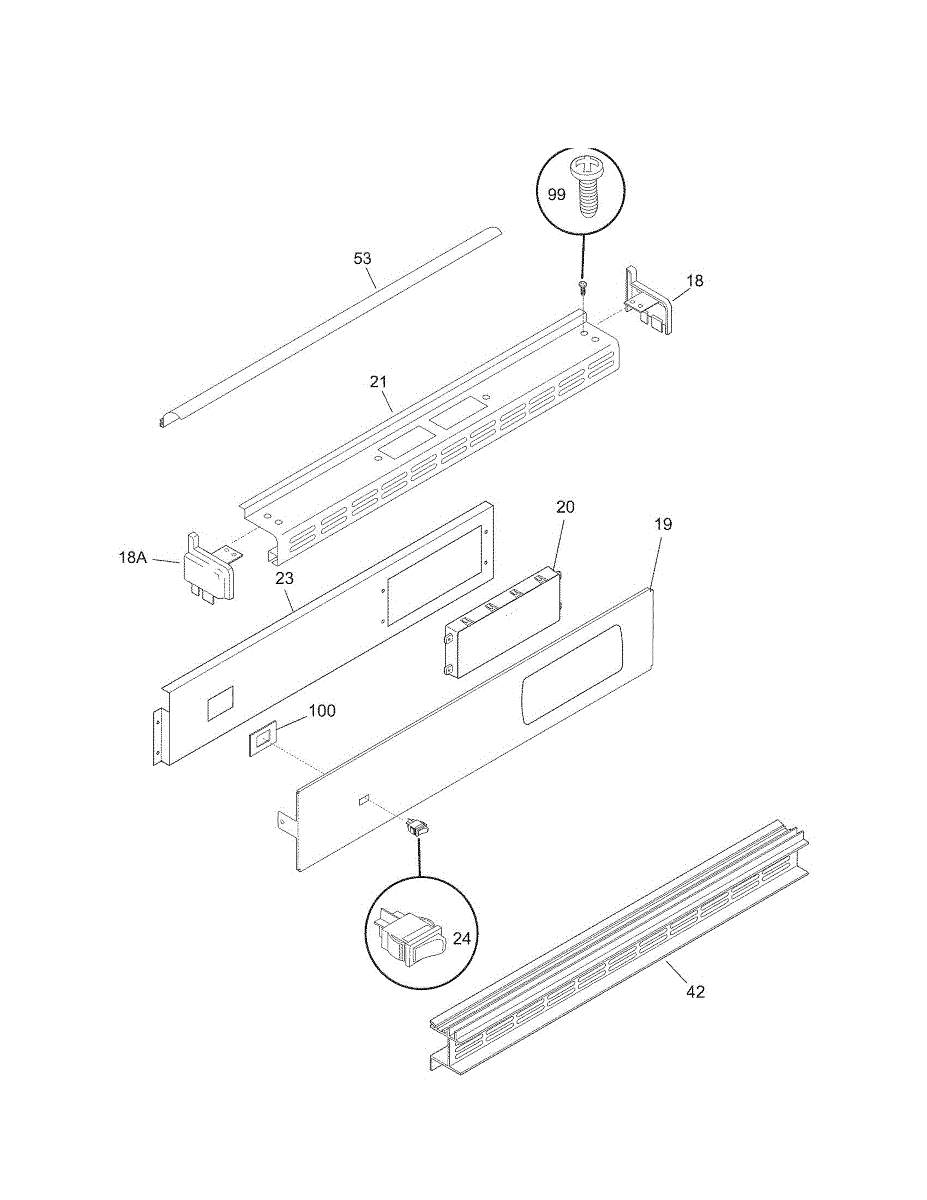

Parts for Kenmore 790.30554802 (79030554802, 790 30554802): Control Panel Parts

Replace your wall oven's touch pad panel if the control surface is cracked, broken, worn, or unresponsive to touch. Mounts to the front control area.

Fix a wall oven with a blank display, incorrect time, or non-functioning controls with this control board clock timer. Restores digital display function.

Fix a wall oven with a non-functioning clock, unresponsive controls, or error codes. This clock timer control board restores proper oven operation.

Fix a non-responsive oven display or failed timer functions with this electronic control board. Restores digital clock, timed bake, and delay-start settings.

This is a satin-finish trim piece that fits along the splasher area of a range or oven. It provides a finished appearance and helps protect the edge where the cooktop meets the backsplash. Replace this trim if it is dented, discolored, corroded, or missing, which can detract from the appliance's appearance and leave edges exposed.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

This repair parts list is a printed service diagram and parts index that helps identify replacement components and part numbers for service or parts ordering. It makes finding the correct parts faster and reduces ordering errors. What it does:

• Shows exploded views or diagrams for the appliance to clarify part locations
• Lists part numbers and brief part names for each assembly or component
• Helps owners the exact replacement needed
• Useful when troubleshooting by matching damaged or missing components to part IDs

• One printed repair parts list/service parts diagram (sheet)

• No tools required; file or keep with appliance documentation for reference
• Handle the sheet carefully to avoid tears or smudges that obscure part numbers
• Not a functional replacement part—used for identification and ordering only

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.
