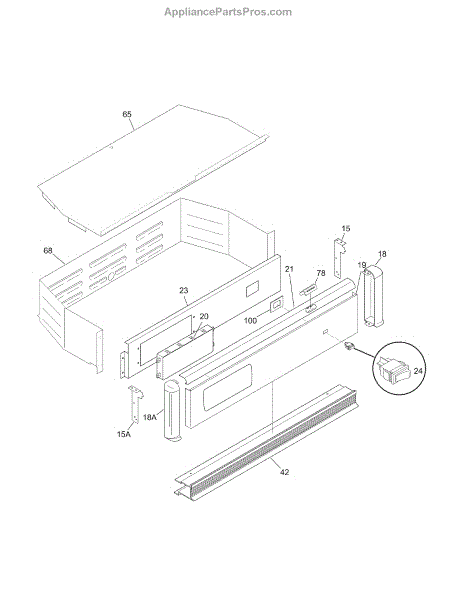

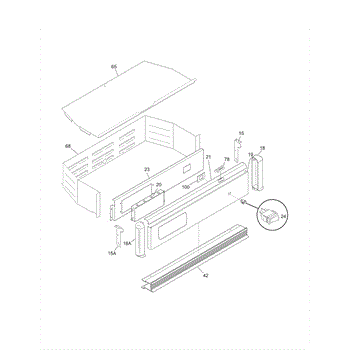

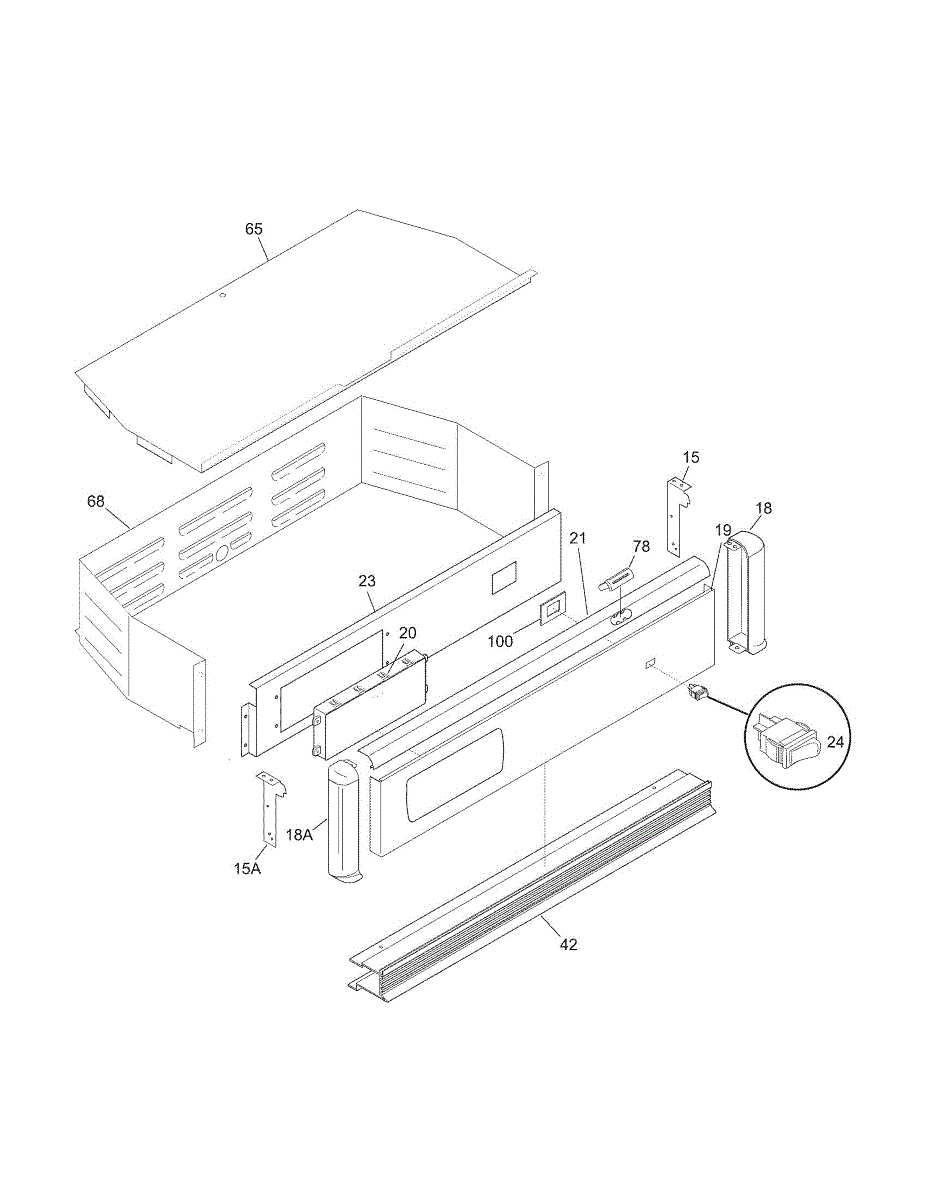

Parts for Kenmore 790.40452803 (79040452803, 790 40452803): Control Panel Parts

Secures the rear control panel to your oven for a stable, flush fit. Replace if the original bracket is bent, broken, or missing to eliminate panel movement.

Left-side backguard support bracket secures the backguard to your oven frame. Replace if bracket is cracked, broken, or missing to restore stability.

These decorative and functional caps cover the exposed ends of oven heating elements or control assemblies, located at element termination points. Replace when caps are cracked, discolored from overheating, or missing, which can expose dangerous electrical connections.

These decorative and functional caps cover the exposed ends of oven heating elements or control assemblies, located at element termination points. Replace when caps are cracked, discolored from overheating, or missing, which can expose dangerous electrical connections.

The range oven control board is the electronic brain located behind the control panel that manages all oven functions including temperature, timing, and cooking modes. Replace this component if the oven display is blank, buttons don't respond, or cooking functions operate erratically.

Black top trim piece for wall ovens. Covers the gap between the oven and cabinet for a finished look. Replace if cracked, chipped, or missing.

Mounting bracket that secures the clock or timer to your oven's control panel. Replace if cracked, bent, or missing to properly secure the timer assembly.

The Rocker Switch is an OEM part for Frigidaire ranges and ovens. It is responsible for turning the interior oven light on and off. The light switch allows visibility of the oven cavity for viewing food during the cooking process.

Causes can include normal wear and tear over time, exposure to heat inside the oven cavity, or accidental damage.

Symptoms of a bad oven light rocker switch include:

• The oven light failing to illuminate when the door is opened
• The light remaining on even when the door is closed
• An inconsistent or flickering oven light
• The switch itself becoming loose, cracked, or non-responsive

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Switch Rocker is an OEM part for Frigidaire ranges. This switch is used to control various functions of the range, such as turning on heating elements or activating specific cooking modes. It provides a reliable and straightforward interface for managing the range's features.

You should replace the range switch rocker if it becomes faulty. Causes of a bad switch rocker can include wear and tear from frequent use, exposure to high temperatures, electrical malfunctions, or physical damage from impacts or mishandling. A defective switch rocker can result in unresponsive controls, making it challenging to operate the range effectively.

Symptoms of a bad Range Switch Rocker include:

• The switch not responding when pressed
• Inconsistent or flickering performance of the heating elements
• Physical damage or looseness in the switch
• Intermittent operation or complete failure to activate the desired function

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Decorative trim piece for wall ovens. Replaces cracked, chipped, or missing trim around the oven frame. Restores the finished look of your appliance.

Replacement door trim for wall ovens. Covers the gap between oven door and frame. Order if original trim is cracked, broken, or missing.

Oven housing cover that protects internal components. Replace if yours is cracked, broken, or missing to restore proper enclosure and appearance.

This repair parts list is a service parts diagram that identifies components and part numbers for repair reference, helping you find the correct replacement parts faster and avoid ordering errors. What it does:

• Shows part locations and reference numbers for the appliance
• Matches OEM part numbers to component positions for accurate ordering
• Helps diagnose which component is related to a symptom or failure
• Serves as a quick reference during disassembly and repair

• This item is a reference document; it does not install on the appliance
• Use alongside the official service manual and wiring diagrams when repairing
• Follow all safety procedures and disconnect power before servicing the appliance
• Keep the sheet with service records for future troubleshooting

Oval-head square-drive screw secures interior and exterior oven panels, brackets, and trim. Replace worn, stripped, or missing screws for secure assembly.

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
