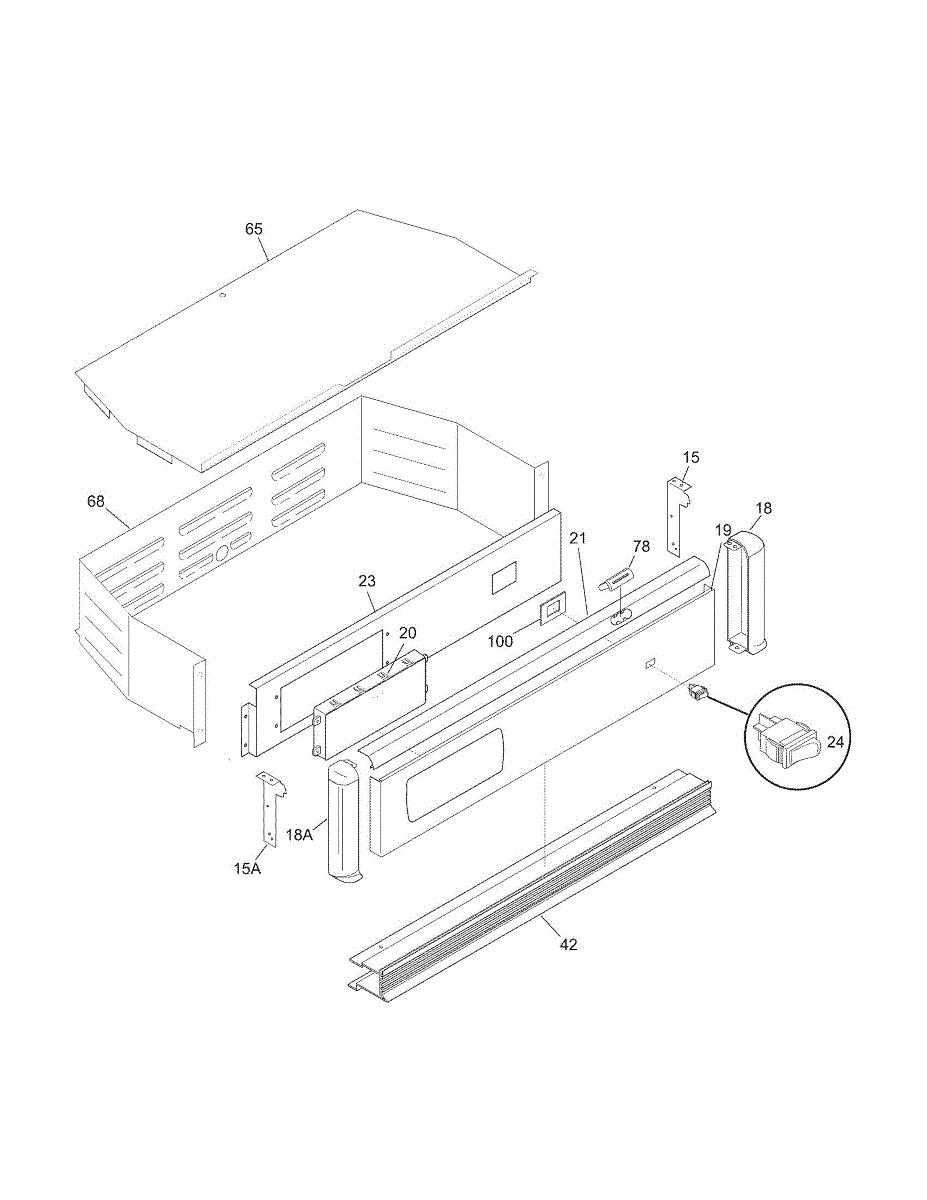

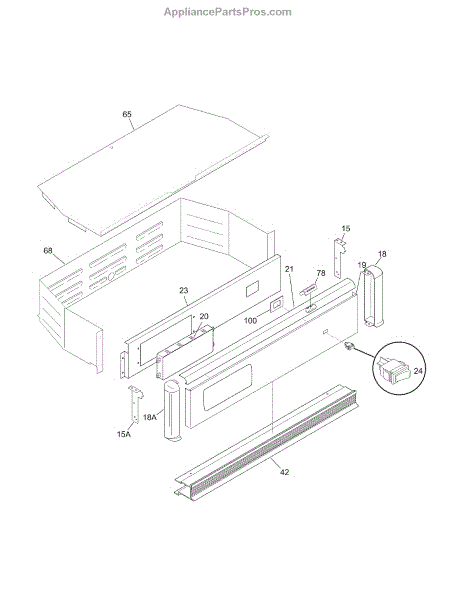

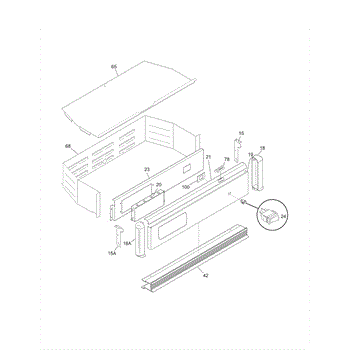

Parts for Kenmore 790.40459803 (79040459803, 790 40459803): Control Panel Parts

Secures the rear control panel to your oven for a stable, flush fit. Replace if the original bracket is bent, broken, or missing to eliminate panel movement.

Left-side backguard support bracket secures the backguard to your oven frame. Replace if bracket is cracked, broken, or missing to restore stability.

Replacement endcap for your oven. This trim piece installs on the control panel or frame to cover exposed edges. Order a new cap if yours is cracked or missing.

Replacement endcap for your oven. This trim piece installs on the control panel or frame to cover exposed edges. Order a new cap if yours is cracked or missing.

Black top trim piece for wall ovens. Covers the gap between the oven and cabinet for a finished look. Replace if cracked, chipped, or missing.

Mounting bracket that secures the clock or timer to your oven's control panel. Replace if cracked, bent, or missing to properly secure the timer assembly.

Replace a non-functioning oven light switch that won't illuminate the cavity. Simple DIY repair—typically takes 15-30 minutes with basic tools.

Range burner or oven light not working? This rocker switch controls heating elements and functions. Easy 15-minute DIY fix with step-by-step video.

Decorative trim piece for wall ovens. Replaces cracked, chipped, or missing trim around the oven frame. Restores the finished look of your appliance.

Replacement door trim for wall ovens. Covers the gap between oven door and frame. Order if original trim is cracked, broken, or missing.

Oven housing cover that protects internal components. Replace if yours is cracked, broken, or missing to restore proper enclosure and appearance.

This repair parts list is a service parts diagram that identifies components and part numbers for repair reference, helping you find the correct replacement parts faster and avoid ordering errors. What it does:

• Shows part locations and reference numbers for the appliance
• Matches OEM part numbers to component positions for accurate ordering
• Helps diagnose which component is related to a symptom or failure
• Serves as a quick reference during disassembly and repair

• This item is a reference document; it does not install on the appliance
• Use alongside the official service manual and wiring diagrams when repairing
• Follow all safety procedures and disconnect power before servicing the appliance
• Keep the sheet with service records for future troubleshooting

10-24 x 1/2 inch machine screw that secures temperature probe and thermistor brackets to cooktop, oven, and range chassis. Replace if missing or stripped.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.
