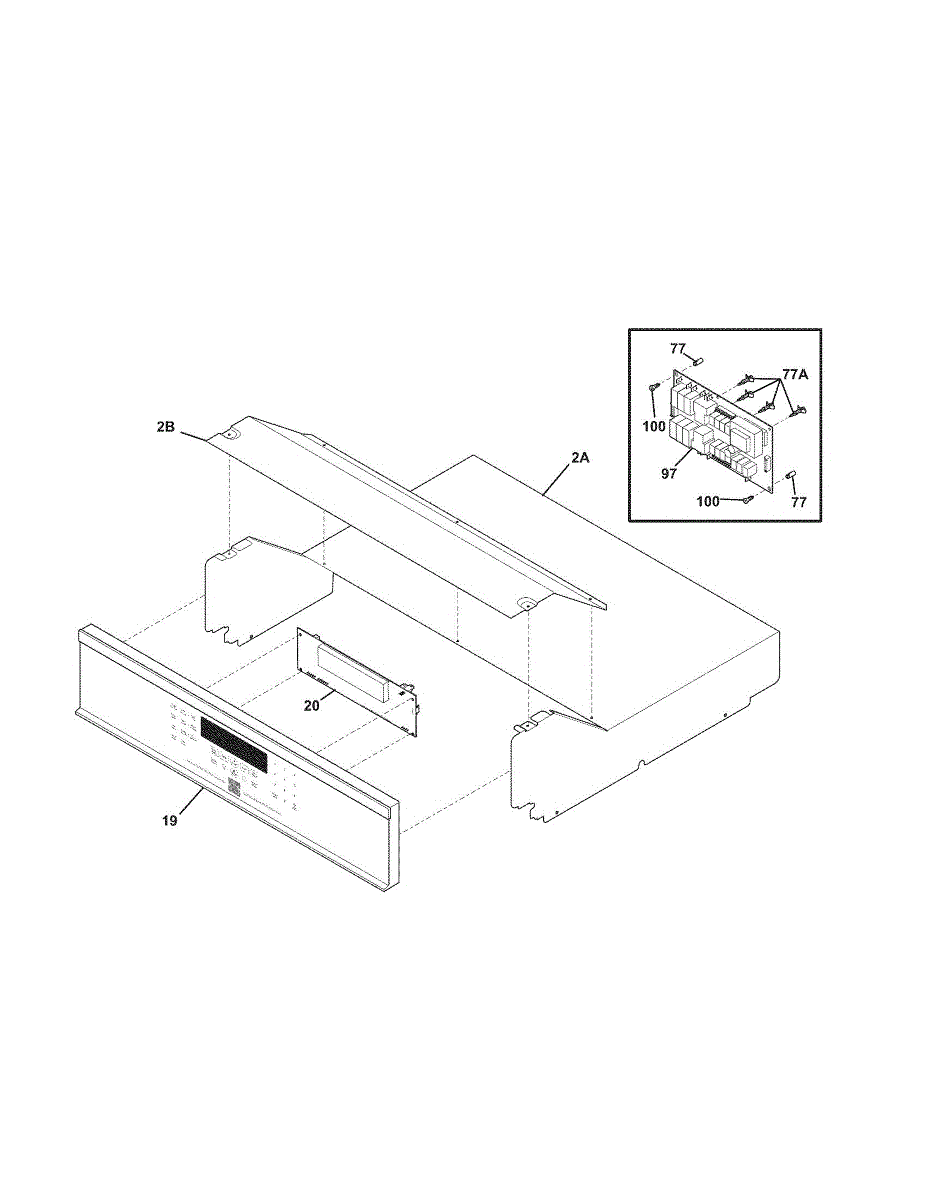

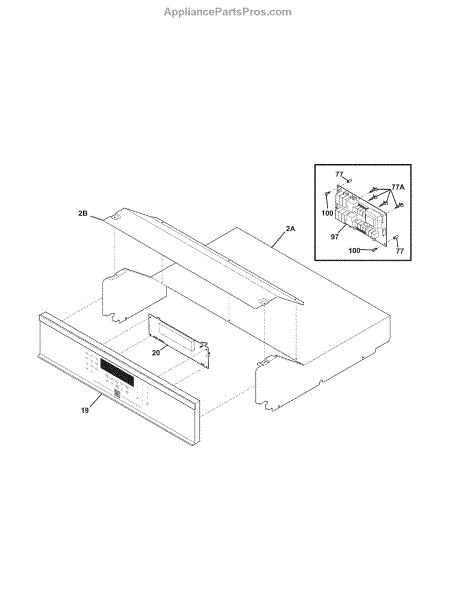

Parts for Kenmore 790.48173000 (79048173000, 790 48173000): Control Panel Parts

This control board manages your oven's timing functions and temperature settings. It controls cooking cycles, displays the clock, and regulates heating elements. Replace it if your oven won't heat properly, the display is blank or garbled, or cooking times are inaccurate.

Spacer for ranges and ovens. Maintains proper spacing between components. Replace if worn, cracked, or missing to ensure correct alignment and fit.

The Control Board is an OEM part for Frigidaire ranges and ovens. It is responsible for managing various functions and operations of the appliance. This crucial component receives input from the control panel and user settings, and then translates these inputs into commands for the different components of the range, such as the oven heating elements, bake and broil functions, temperature regulation, and timer operations.

Causes of a faulty Control Board can be related to electrical issues, such as power surges, short circuits, or internal component failure due to age or wear and tear.

Symptoms of a bad Control Board can include:

• Oven not heating or maintaining temperature properly
• Oven control panel not responding or displaying erratic behavior
• Specific oven functions not working correctly
• Error codes or warning lights illuminated on the control panel

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This parts list is the factory service sheet that identifies replacement parts and part numbers for the appliance. Keep it with the unit to simplify ordering and service communication. What it does:

• Shows the component names, item numbers and diagram references used by technicians
• Helps identify the exact replacement parts needed when a component fails
• Reduces ordering errors by matching parts to factory diagrams and callouts
• Useful for service diagnostics and communicating required parts to repair professionals

• One factory parts list/service sheet

• No tools required; store the sheet with the appliance manual or service records
• Handle the sheet carefully to avoid tearing or ink smearing
• Note how it was secured before removal

This instruction sheet provides the printed setup, operating and safety guidance for your appliance so you can install and use it correctly. Keeps important warnings, basic troubleshooting tips and care instructions on hand. What it does:

• Lists step-by-step installation and setup guidelines to help ensure correct initial assembly and placement
• Highlights safety warnings and precautions to reduce the risk of misuse or damage
• Summarizes routine care and maintenance recommendations to protect appliance performance
• Offers basic troubleshooting pointers to identify common symptoms and determine if service is needed

• Read all instructions before installing or operating the appliance
• Keep this sheet with the appliance for future reference and for new owners
• Follow local codes and utility company requirements where applicable

Wire harness for electric wall ovens. Connects electrical components within the oven cavity. Replace if wires are frayed, damaged, or connectors are broken.
