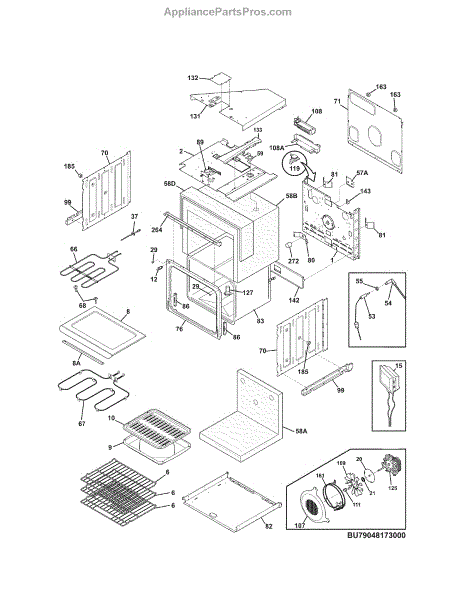

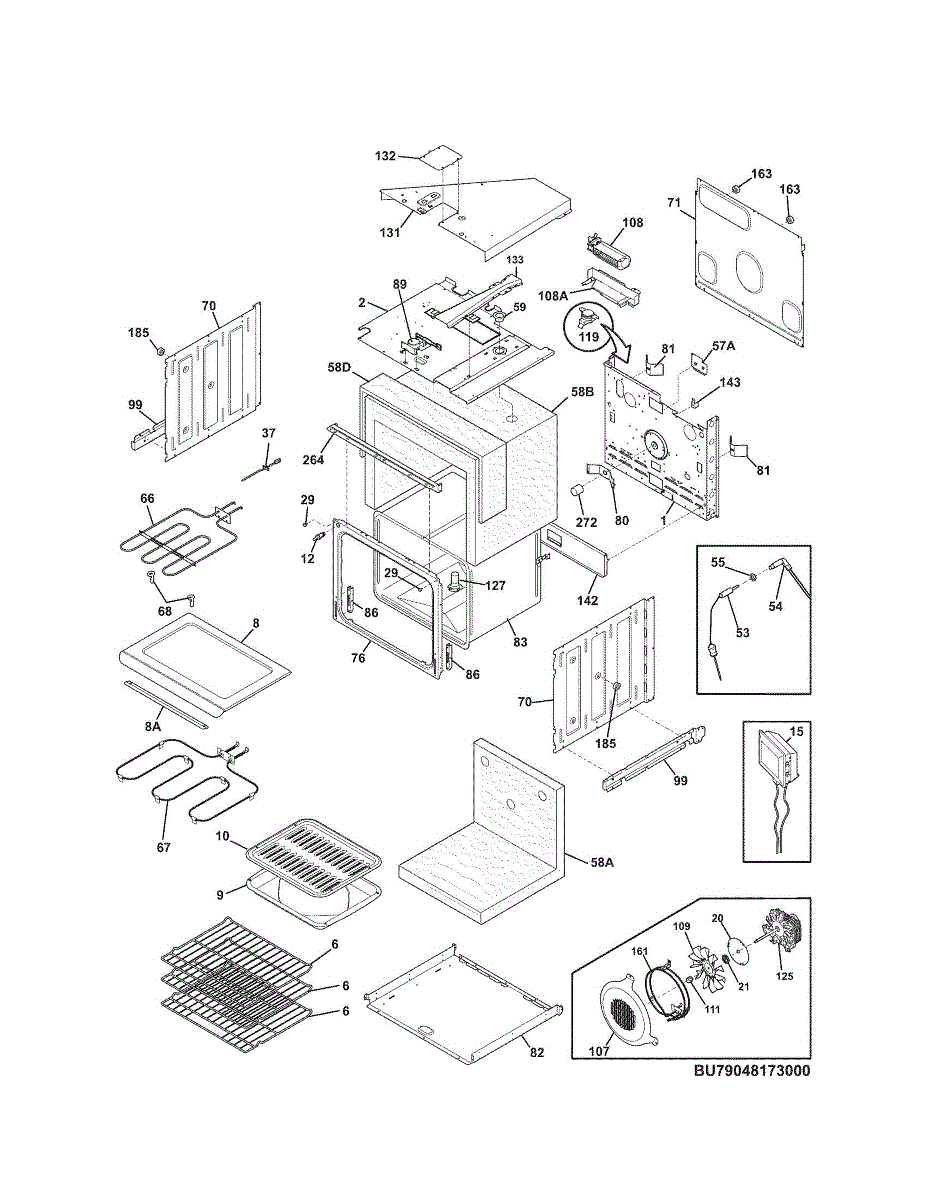

Parts for Kenmore 790.48173000 (79048173000, 790 48173000): Upper Oven Parts

Restores proper rack positioning and support for level, stable cookware. Replace when racks are bent, warped, or slide poorly. Confirm fit with your model.

The bottom element cover is a panel that sits on the floor of your oven cavity, concealing and protecting the lower bake element underneath. It helps distribute heat more evenly across the oven floor and protects the element from food drips and spills. Replace this cover if it is warped, cracked, or damaged in a way that exposes the element or causes uneven baking results.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

This is a halogen light assembly that illuminates the interior of the oven cavity so you can monitor food while cooking. It includes the bulb, socket, and lens cover that mount inside the oven compartment. Replace this assembly if the oven interior light does not turn on, the lens is cracked or discolored from heat damage, or the socket no longer holds the bulb securely.

Replace your range oven door seal to maintain heat efficiency and prevent energy loss. Essential when you notice gaps, cracks, or heat escaping. Verify fit.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Oven won't reach or hold set temperature? A faulty temperature sensor causes inaccurate heating. This monitor probe ensures consistent cooking results.

Oven displaying probe error or reading temperature when unplugged? This meat probe monitors internal food temperature. Easy DIY replacement part.

Secures burner or oven control to the control panel behind the knob. Replace if stripped, missing, or loose to keep control shaft stable and aligned.

Replace your oven's support plate if it's cracked, broken, or missing. This structural component mounts inside the oven cavity to secure internal parts.

Insulation padding for wall ovens. Installs inside oven cavity to provide sound dampening and thermal protection. Replace if worn, compressed, or missing.

This electric heating element restores consistent, reliable heat in your appliance, so cooking or warming functions work as intended. Replace a failed element to eliminate slow heat-up, uneven temperatures, or no-heat conditions.

• Converts electrical power into heat for the appliance's designated cavity or surface
• Common failure symptoms: no heat, uneven heating, very slow preheat/warm-up
• Visual clues: breaks, blisters, or hot spots on the coil
• May cause the unit to cycle erratically or trip a breaker if shorted

• Disconnect power at the breaker or unplug before servicing; allow all components to cool
• Wear cut-resistant gloves; avoid bending or kinking the element
• Photograph wiring and transfer connectors one-for-one; ensure tight, clean terminal fits
• Inspect wires/terminals for heat damage and replace any compromised connectors

Oven not heating or heating unevenly? This bake element restores proper temperature for consistent cooking. DIY-friendly installation in under an hour.

Secures cooktop surface elements to your range for stable contact and even heating. Replace if bent or worn to restore proper element positioning.

Mounting plate that secures the oven to the cabinet or wall. Replace this metal support plate if it's bent, rusted, or missing to ensure proper installation.

Replace a damaged, cracked, or missing heat shield in your oven. This protective guard installs inside the oven cavity to shield components from heat.

This inner cabinet liner provides the finished interior surface for the refrigerator compartment, restoring a clean, secure mounting surface for shelves and drawers and helping contain spills. It's a direct-replacement inner surface panel. What it does

• Replaces a cracked, damaged, or warped interior liner to restore the refrigerator's finished interior surface.
• Provides mounting/seat surfaces for shelves, clips and drawers so components fit and operate properly.
• Helps contain spills and prevents moisture from reaching insulation behind the liner.
• Improves appearance by replacing stained or discolored interior surfaces.

• One inner cabinet liner.

• Disconnect power and empty the compartment before beginning work.
• Remove shelves, drawers, and any trim pieces that cover liner fasteners; retain hardware for reinstallation.
• Liner replacement may require screws/clips; verify and reuse original fasteners or order correct hardware.
• If insulation or adhesive behind the liner is damaged, inspect and repair before installing the new liner.

Receptacle for electric and gas ranges and wall ovens. Installs as a connector component. Replace if cracked, damaged, or missing to restore proper fit.

Fix a range cooling fan that won't shut off or makes howling noises with this motor. Requires removing oven from cabinet and back panel access.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

Oven won't heat or shuts off during use? A blown thermal fuse cuts power to prevent overheating. Simple diagnosis with a multimeter, quick replacement.

Vent duct adapter for ovens and ranges. Connects vent ductwork to ensure proper airflow. Replace if cracked, broken, or missing for secure fit.

Replacement support plate for ovens and ranges. Mounts inside the oven cavity to secure internal components. Order a new plate if yours is cracked or broken.

Reinforces and supports oven door glass panels. Replace if original stiffener is bent, cracked, or missing to properly secure glass in the door frame.

This is a 2500-watt circular heating element located at the rear wall of the oven cavity, surrounding the convection fan. It provides even heat distribution during convection baking and roasting by working in conjunction with the fan. Replace this element if your oven is not heating properly in convection mode, food is cooking unevenly, or the element is visibly damaged or broken.

Positions and supports range components to maintain proper alignment. Replace if cracked, broken, or missing to prevent rubbing and ensure panels fit correctly.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

Mounting screw for range installations. Secures panels, brackets, or components. Replace if stripped, missing, or corroded during repairs or reassembly.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Shoulder screw secures oven components with built-in spacer for proper alignment. Replace worn, missing, or stripped fasteners to restore fit.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

This is a small lock washer used in range and oven assemblies to secure fasteners and prevent them from loosening due to heat and vibration. It is commonly used in mounting hardware for controls or other internal components. Replace this washer if it is deformed, cracked, or no longer holds the associated bolt or screw tightly in place.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This is a replacement screw used to secure appliance panels and components. It restores proper fastening so panels, trim, or assemblies stay tight and reduce vibration or rattling. What it does

• Fastens panels, brackets, or trim to the appliance chassis
• Helps stop loose or vibrating panels and trim pieces
• Restores proper alignment where a missing or stripped screw causes gaps or movement
• Use when the original screw is missing, damaged, or corroded

• One replacement screw as shown

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Keep removed screws in a safe place; this screw matches the original before installation

Fastens panels, brackets, and covers inside your range or oven. Replace this screw if missing, stripped, or rusted to secure components properly.

Spacer that maintains proper gap between components in your range or oven assembly. Replace if missing, worn, or damaged to restore correct fit and alignment.
