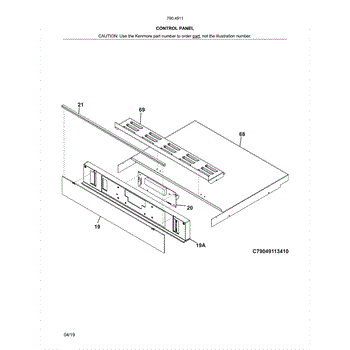

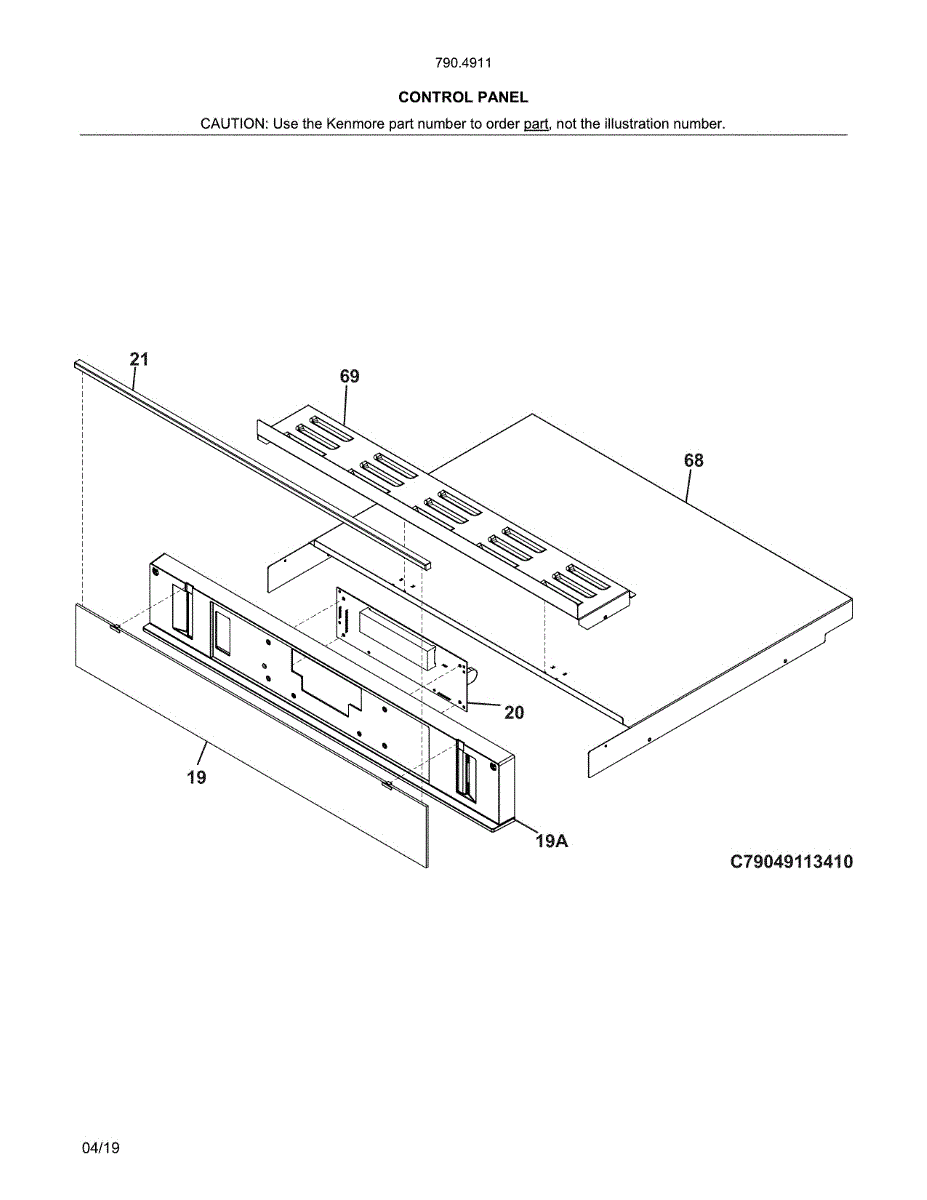

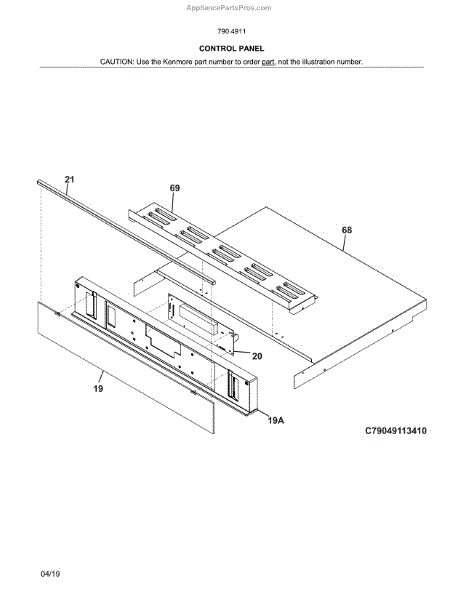

Parts for Kenmore Elite 79049113412: Control Panel Parts

This electronic oven control board manages the oven's bake, broil, timer and user-interface functions so your range responds correctly to temperature and command inputs. Replaces a failed control to restore normal cycle and display operation. What it does:

• Controls oven heating cycles and regulates set temperatures via the oven control algorithms
• Manages clock, timer, touchpad/selector inputs and on-screen display
• Communicates with heating elements and safety sensors to start and stop bake/broil functions
• Commonly replaces boards that cause unresponsive controls, erratic temperature behavior, or blank/garbled displays

• Disconnect power at the breaker or unplug the appliance before starting any work
• Some disassembly of the console or rear access panel is required; keep screws and connectors organized
• Handle the board by the edges and avoid static discharge; do not touch exposed circuitry

This wiring harness is a direct-replacement electrical connector assembly that restores reliable electrical connections between appliance components for proper operation and control. It helps resolve intermittent power, communication, or component failures caused by damaged wiring. What it does:

• Routes power and signals between the control board and connected components using molded connectors
• Replaces damaged, corroded, or frayed wiring that can cause intermittent operation or component failure
• Helps eliminate loose-connection symptoms such as flickering lights, non-responsive controls, or intermittent function
• Maintains proper connector fit and wire routing to prevent shorting and arcing

• Disconnect power to the appliance before starting any repair
• Match connector shapes and terminal counts; do not force connectors
• Route harness to follow original clips and channels to avoid heat or pinch points

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
