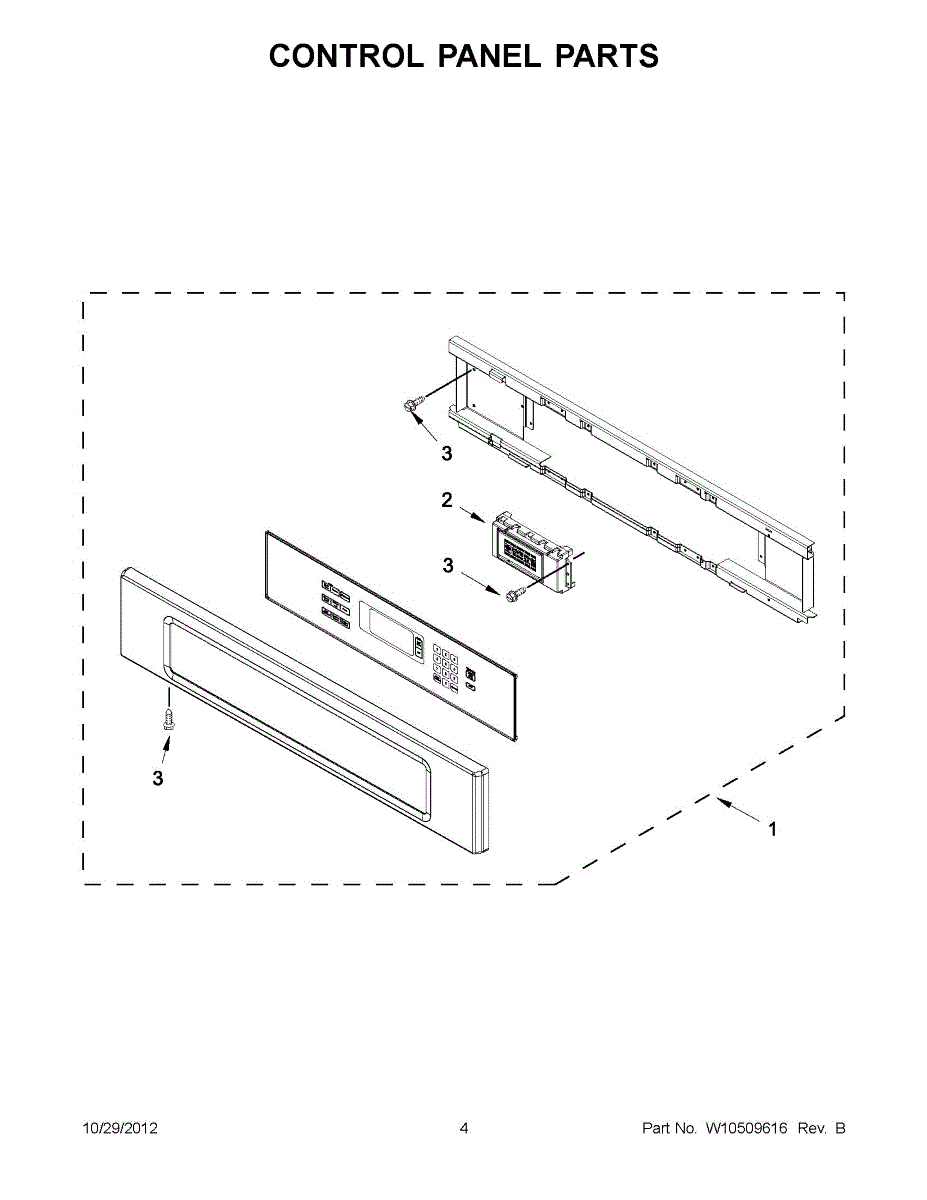

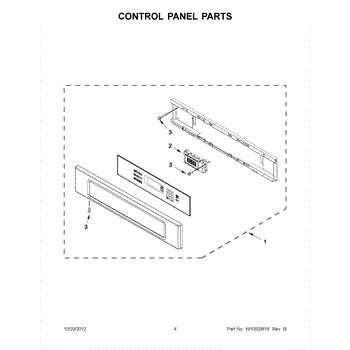

Parts for Kitchenaid KBHS109BSS00: 02 - Control Panel Parts

This control panel is the appliance's front console that houses the buttons and display used to select cycles and view status—restoring responsive controls and visible cycle feedback for normal operation. What it does

• Provides the user interface for selecting cycles, options, and settings.
• Sends control signals to the appliance so cycles start and run as selected.
• Shows status, time-remaining and error indications on the display.
• Commonly replaced when buttons are unresponsive, the display is blank or garbled, or the console does not register selections.

What's included One control panel (console) assembly. Install notes

• Disconnect power to the appliance before starting any work.
• Remove the front console or housing per model service instructions to access connectors.
• Carefully disconnect and reconnect ribbon cables and wire harnesses; do not force connectors.
• Test functions after reassembly; diagnose control board or wiring harness.

Screw for side trim.
