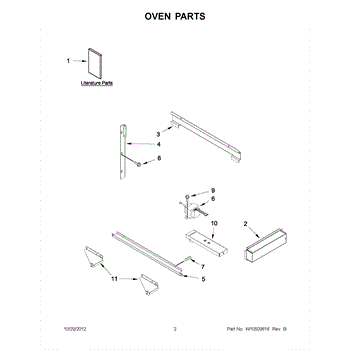

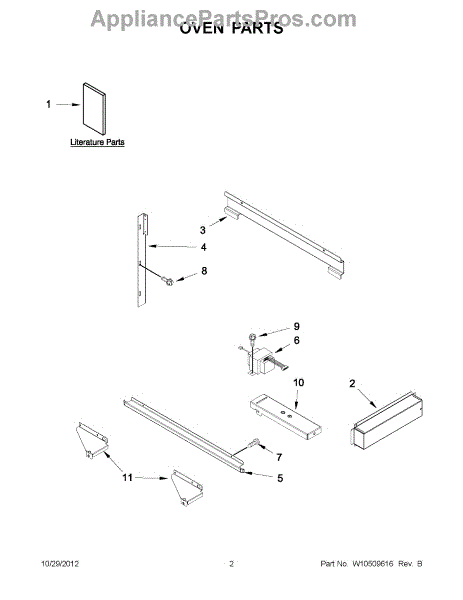

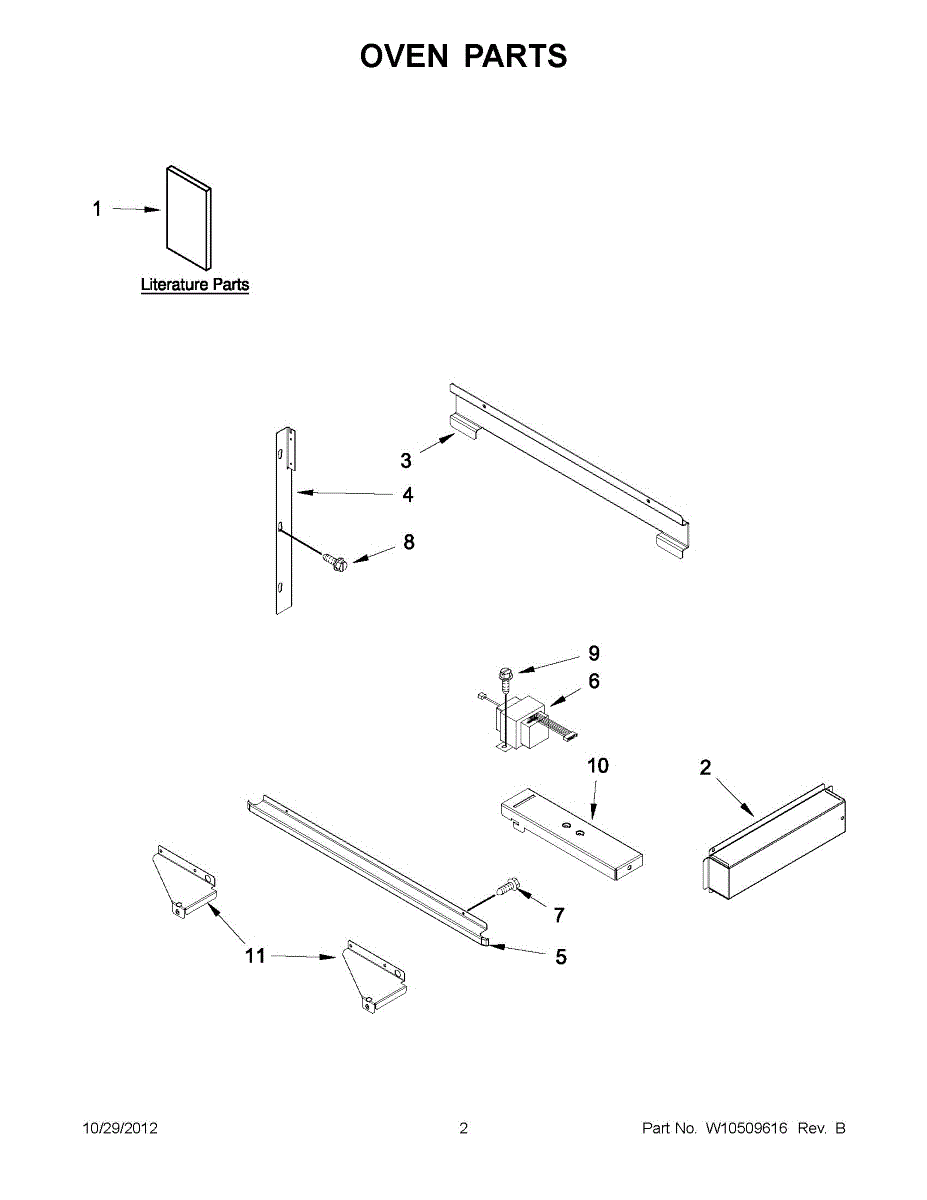

Parts for Kitchenaid KBHS109BSS00: 01 - Oven Parts

A replacement bottom spacer that supports and positions the microwave cavity to maintain proper spacing and panel alignment. Restores a secure fit to reduce vibration and help the unit sit flush in the cabinet. What it does:

• Supports the bottom of the microwave cavity and maintains correct clearance to surrounding panels
• Helps prevent the microwave from sitting unevenly or shifting during use
• Reduces vibration and rattling caused by a damaged or missing spacer
• Useful when bottom mounting points or spacers are cracked, deformed, or missing

• Disconnect power to the appliance before starting any work.
• Removal of trim or access panels may be required; keep track of fasteners.
• Take care around sharp sheet metal; wear gloves and eye protection.

This trim is a decorative outer trim piece that restores the finished look of the appliance and covers the edge where two panels meet. It helps maintain appearance and prevents exposed edges from catching dirt or grime. What it does:

• Provides a finished, cosmetic edge to the appliance surface
• Covers gaps between panels to improve appearance
• Helps keep dirt and moisture from collecting along panel seams
• Restores worn or damaged trim to match surrounding surfaces

• One trim piece as shown

• Intended to be installed by someone comfortable working on appliances
• Use proper tools and protective gloves to avoid scratching adjacent surfaces
• Disconnect power to the appliance if removing electrical panels or components nearby
• If trim attaches with clips or adhesive, remove old clips/adhesive residue before installing the new piece

Screw for side trim.

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mounting plate secures internal components to the appliance cabinet, restoring proper alignment and support for attached parts. It's a simple, durable metal bracket that helps stop rattling and keeps assemblies stable. What it does:

• Provides a secure mounting surface for control assemblies or other internal components
• Restores correct alignment when a bracket is bent or missing
• Reduces vibration and rattling from loose or unsupported parts
• Helps prevent premature wear caused by misaligned components

• One mounting plate

• Disconnect power (and gas if applicable) before beginning any repair
• Basic hand tools are typically required; keep fasteners from the original part for reinstallation
• Handle edges carefully—metal brackets can be sharp
• Refer to your model's service manual or parts diagram for exact placement and mounting fasteners
