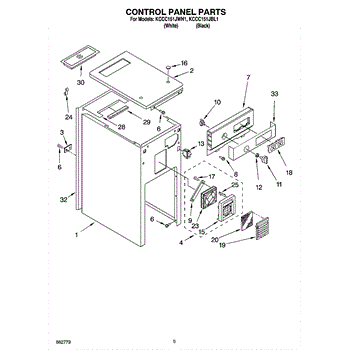

Parts for Kitchenaid KCCC151JBL1: 05 - Control Panel Parts

Color: Black

Color: White

This power cord plate covers and secures the oven/range power cord where it enters the appliance, keeping the connection protected and helping prevent strain on the cord. It restores a finished look and helps keep wiring safely routed. What it does:

• Covers the terminal block area to protect power connections from dirt and accidental contact
• Helps keep the power cord routed and secured to reduce strain on the cord and terminals
• Can prevent air/dust intrusion behind the control cavity that could affect components
• Common replacement when the original plate is cracked, broken, or missing

• Always disconnect power at the breaker or unplug the appliance before starting work
• Typically attaches with two screws; keep screws and any gaskets from the old piece for reuse if undamaged
• Check the cord strain relief/terminal connections while replacing the plate; do not touch live terminals
• If wiring or the cord itself is damaged, replace or repair those parts per manufacturer instructions

Size: 8 x 1/2 ab.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The On/Off Rotary Switch Kit is an OEM part for Whirlpool trash compactors. This kit includes the rotary switch and necessary components to control the power and operation of the trash compactor, allowing users to turn the unit on and off easily.

Causes of a bad rotary switch can include electrical wear and tear, damage from repeated use, or issues with the internal contacts. Over time, these factors can lead to the switch becoming unresponsive or failing to control the compactor properly.

Symptoms of a bad rotary switch include:

• The trash compactor not turning on or off
• Intermittent operation of the compactor
• The switch feeling loose or unresponsive
• Electrical sparking or unusual noises from the switch area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This white rotary switch knob restores smooth, accurate control of your appliance's settings. Replace a cracked, stripped, or missing knob to regain a secure grip and positive engagement with the control without replacing the underlying switch.

• Attaches to the rotary control switch shaft; turning the knob selects the setting
• Provides a clear pointer and solid feel for precise adjustments
• Typical symptoms: cracked or missing knob, loose fit, spins without engaging, or hard to select settings
• Fresh cosmetic look to replace yellowed or worn originals

• Disconnect power to the appliance before servicing
• Pull the old knob straight off the shaft; avoid prying against the panel
• Align the knob's insert with the switch shaft shape and press on until fully seated
• Inspect the switch shaft for wear or damage

The Start Switch Knob is an OEM part for Whirlpool trash compactors. This knob allows you to control the start function of the trash compactor, initiating the compacting cycle when turned.

Causes of a bad Start Switch Knob can include wear and tear from frequent use, damage due to excessive force, or issues with the internal connection between the knob and the switch mechanism.

Symptoms of a bad Start Switch Knob include:

• Difficulty turning the knob or engaging the start function
• The compactor not starting or stopping intermittently
• The knob feeling loose or coming off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

This push-button door switch senses when your refrigerator door opens and closes to control the interior light. Replace a worn or stuck switch to restore reliable lighting and proper on/off operation when the door moves. What it does:

• Turns the interior light on when the door opens and off when it closes
• Common fix for a light that won't turn on with the door open
• Resolves lights that stay on continuously with the door closed
• Addresses intermittent lighting from a sticking or damaged plunger

• One door switch

• Disconnect power to the refrigerator before servicing
• Carefully pry the old switch from the liner; protect the surface to avoid damage
• Transfer wires to the new switch one at a time to maintain correct connections
• Press the new switch fully into place and restore power to test operation

A small replacement button plug that fills a control-panel opening and restores a finished appearance while keeping out dirt and moisture. Fits neatly into the panel for a clean, factory look. What it does:

• Covers unused or damaged button openings on the appliance control panel
• Prevents debris, crumbs, and moisture from entering the control cavity
• Restores the panel's finished appearance and helps keep controls sealed
• Useful when a button is missing, broken, or removed during repairs

• Press the plug firmly into the panel opening until it snaps or seats flush
• No special tools required for most installs; small flat tool can help align if needed
• Avoid forcing the plug to prevent panel damage; check fit before final seating
• Disconnect power to the appliance before removing control panels or working near wiring

Size: 10-24 x 3/8 inch.

Color: White. Trash compactor control switch.

Replace a broken or missing air freshener cover. This black cover shields and secures the charcoal deodorizer cartridge, helping it stay in place so odors are contained and the compartment maintains a clean, finished look. What it does:

• Covers and protects the deodorizer/charcoal air freshener compartment
• Holds the odor-absorbing cartridge securely in place
• Helps contain odors by ensuring the cartridge is seated correctly
• Common symptoms: cracked, warped, loose, rattling, or missing cover

• 1 black air freshener/filter cover

• Disconnect power before servicing
• Open the access area for the deodorizer/filter
• Remove the old cover; position and secure the new cover per the design (snap or fastener)
• The deodorizer/filter is properly seated and the cover is fully engaged

Color: black. It measures about 4-1/2 inches wide by 4-1/2 inches high.
