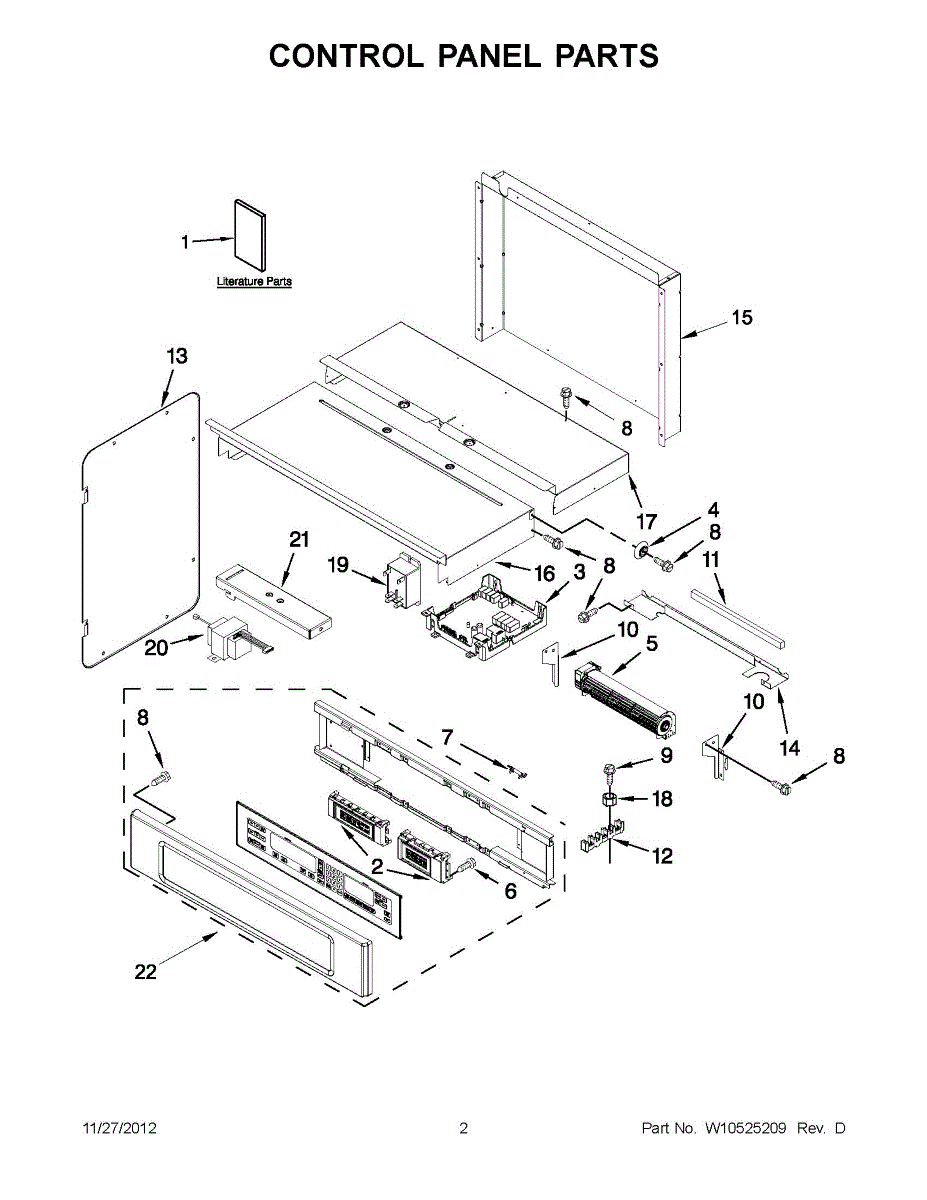

Parts for Kitchenaid KEMS309BWH00: 01 - Control Panel Parts

This is the main electronic control board for the lower oven in a wall oven or oven/microwave combo unit. It processes input from the user interface and manages oven functions such as baking, broiling, and self-cleaning cycles. Replace this board if the oven display is blank or unresponsive, error codes appear, the oven fails to heat, or buttons and controls stop working properly.

Microwave won't turn on or buttons unresponsive? The control board manages all functions. Moderate DIY repair with proper safety precautions required.

If your oven blower runs slow, barely moves air, or takes forever to cool down, this 2-speed cooling blower restores proper airflow and ventilation.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Oven goes dark after self-clean? This thermal fuse cuts power when overheating occurs. Common failure after cleaning cycles. Easy DIY repair.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

The Terminal Block is an OEM part for Whirlpool ranges. It serves as a crucial connection point for the range’s electrical wiring, ensuring a safe and reliable transfer of power to the appliance.

Over time, terminal blocks can deteriorate due to factors such as heat exposure, electrical surges, or wear and tear. When the terminal block becomes damaged or corroded, it can lead to poor electrical connections or potential safety hazards.

Symptoms of a bad terminal block include:

• Burnt or scorched connections
• Intermittent power loss to the range
• Difficulty in the range heating up properly
• Visible damage or corrosion on the terminal block

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

What's included: One 10-32 nut Install notes:

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block

This mounting plate secures internal components to the appliance cabinet, restoring proper alignment and support for attached parts. It's a simple, durable metal bracket that helps stop rattling and keeps assemblies stable. What it does:

• Provides a secure mounting surface for control assemblies or other internal components
• Restores correct alignment when a bracket is bent or missing
• Reduces vibration and rattling from loose or unsupported parts
• Helps prevent premature wear caused by misaligned components

• One mounting plate

• Disconnect power (and gas if applicable) before beginning any repair
• Basic hand tools are typically required; keep fasteners from the original part for reinstallation
• Handle edges carefully—metal brackets can be sharp
• Refer to your model's service manual or parts diagram for exact placement and mounting fasteners

Fix unresponsive buttons or blank displays with this microwave control panel. Restores touchpad and display functions for cycle selection and settings.
